5.20 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

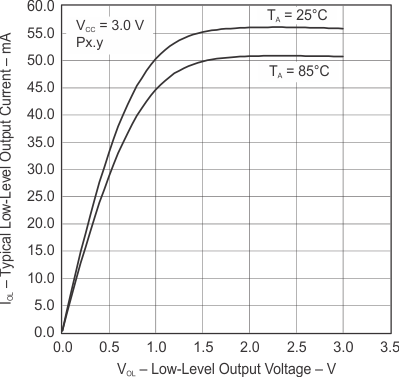

MSP430F5229 MSP430F5227 MSP430F5224 MSP430F5222 MSP430F5219 MSP430F5217 MSP430F5214 MSP430F5212 slas000-009.gifFigure 5-8 Typical Low-Level Output Current vs Low-Level Output Voltage

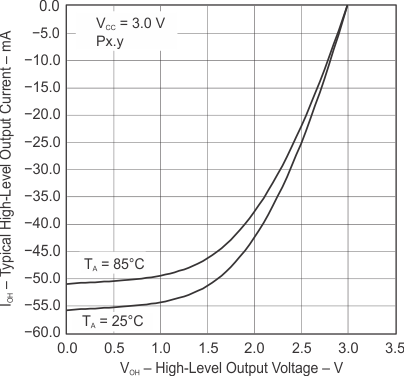

MSP430F5229 MSP430F5227 MSP430F5224 MSP430F5222 MSP430F5219 MSP430F5217 MSP430F5214 MSP430F5212 slas000-011.gifFigure 5-10 Typical High-Level Output Current vs High-Level Output Voltage

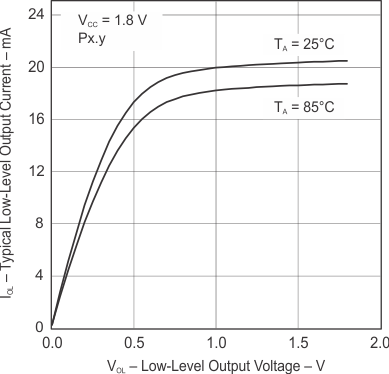

MSP430F5229 MSP430F5227 MSP430F5224 MSP430F5222 MSP430F5219 MSP430F5217 MSP430F5214 MSP430F5212 slas000-010.gifFigure 5-9 Typical Low-Level Output Current vs Low-Level Output Voltage

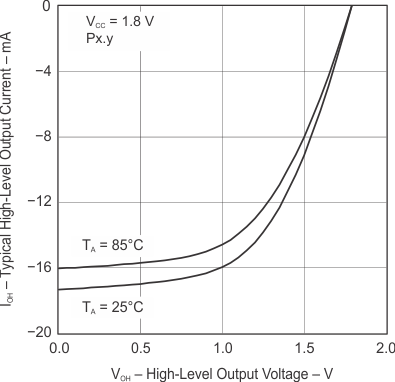

MSP430F5229 MSP430F5227 MSP430F5224 MSP430F5222 MSP430F5219 MSP430F5217 MSP430F5214 MSP430F5212 slas000-012.gifFigure 5-11 Typical High-Level Output Current vs High-Level Output Voltage
