5.18 Typical Characteristics – Outputs, Full Drive Strength (PxDS.y = 1), Ports P1.0 to P1.5, P3.2 to P3.7, PJ.0 to PJ.6

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131 slas619-r-009.gifFigure 5-6 Typical Low-Level Output Current vs
Low-Level Output Voltage

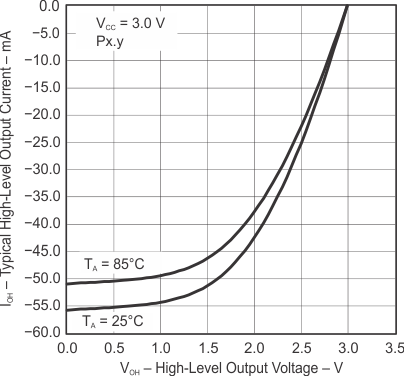

MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131 slas619-r-011.gifFigure 5-8 Typical High-Level Output Current vs
High-Level Output Voltage
MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131 slas619-r-010.gifFigure 5-7 Typical Low-Level Output Current vs
Low-Level Output Voltage

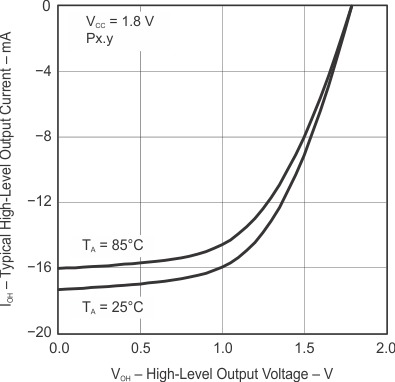

MSP430F5172 MSP430F5152 MSP430F5132 MSP430F5171 MSP430F5151 MSP430F5131 slas619-r-012.gifFigure 5-9 Typical High-Level Output Current vs
High-Level Output Voltage
