5.16 Supply Voltage Supervisor (SVS), Supply Voltage Monitor (SVM)(3)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
t(SVSR) dVCC/dt > 30 V/ms (see Figure 5-12) 100 µs
dVCC/dt ≤ 30 V/ms 2000
td(SVSon) SVS on, switch from VLD = 0 to VLD ≠ 0, VCC =3 V 100 µs
tsettle VLD ≠ 0(2) 12 µs
V(SVSstart) VLD ≠ 0, VCC/dt ≤ 3 V/s (see Figure 5-12) 1.55 1.7 V
Vhys(SVS_IT-) VCC/dt ≤ 3 V/s (see Figure 5-12) VLD = 1 120 mV
VLD = 2 to 14 15
VCC/dt ≤ 3 V/s (see Figure 5-12), external voltage applied on SVSIN VLD = 15 10
V(SVS_IT-) VCC/dt ≤ 3V/s (see Figure 5-12) VLD = 1 1.8 1.9 2.05 V
VLD = 2 2.1
VLD = 3 2.2
VLD = 4 2.3
VLD = 5 2.24 2.4 2.6
VLD = 6 2.5
VLD = 7 2.65
VLD = 8 2.8
VLD = 9 2.69 2.9 3.13
VLD = 10 3.05
VLD = 11 3.2
VLD = 12 3.35
VLD = 13 3.24 3.5 3.76(1)
VLD = 14 3.7(1)
VCC/dt ≤ 3 V/s (see Figure 5-12), external voltage applied on SVSIN VLD = 15 1.1 1.2 1.3
ICC(SVS)(3) VLD ≠ 0, VCC = 3 V 12 17 µA
(1) The recommended operating voltage range is limited to 3.6 V.
(2) tsettle is the settling time that the comparator operational amplifier needs to have a stable level after VLD is switched from VLD ≠ 0 to a different VLD value between 2 and 15. The overdrive is assumed to be greater than 50 mV.
(3) The current consumption of the SVS module is not included in the ICC current consumption data.

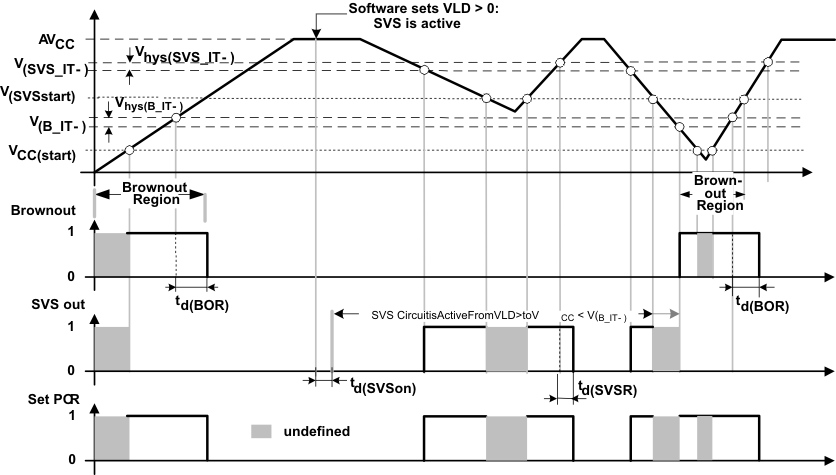

MSP430AFE253 MSP430AFE252 MSP430AFE251 MSP430AFE233 MSP430AFE232 MSP430AFE231 MSP430AFE223 MSP430AFE222 MSP430AFE221 svsreset_vcc_las701.gifFigure 5-12 SVS Reset (SVSR) vs Supply Voltage

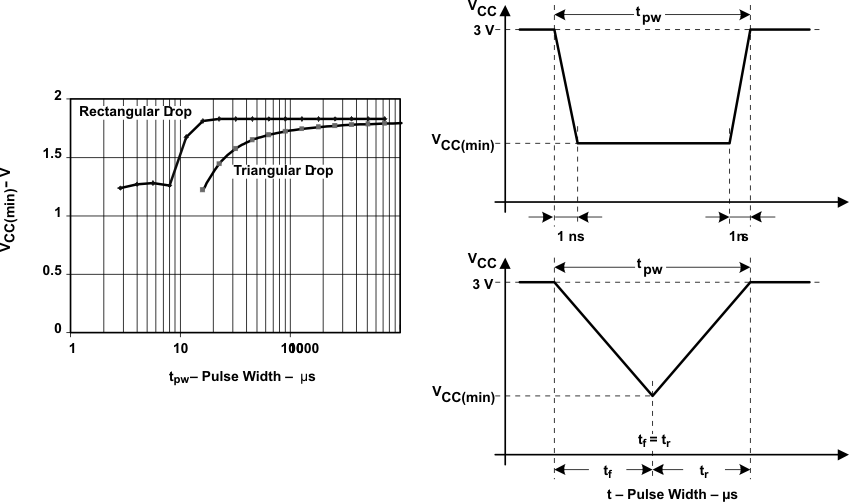

MSP430AFE253 MSP430AFE252 MSP430AFE251 MSP430AFE233 MSP430AFE232 MSP430AFE231 MSP430AFE223 MSP430AFE222 MSP430AFE221 vccmin_square_triangle_drop_las701.gifFigure 5-13 VCC(min) With a Square Voltage Drop and a Triangular Voltage Drop to Generate an SVS Signal
