5.6 Typical Characteristics

at operating temperature TJ = 25°C, VIN = VOUT(NOM) + 1.0V or 2.5V (whichever is greater), IOUT = 1mA, ON/OFF pin tied to VIN, CIN = 1.0µF, COUT = 2.2µF for the legacy chip, and COUT = 4.7µF for the new chip (unless otherwise noted)

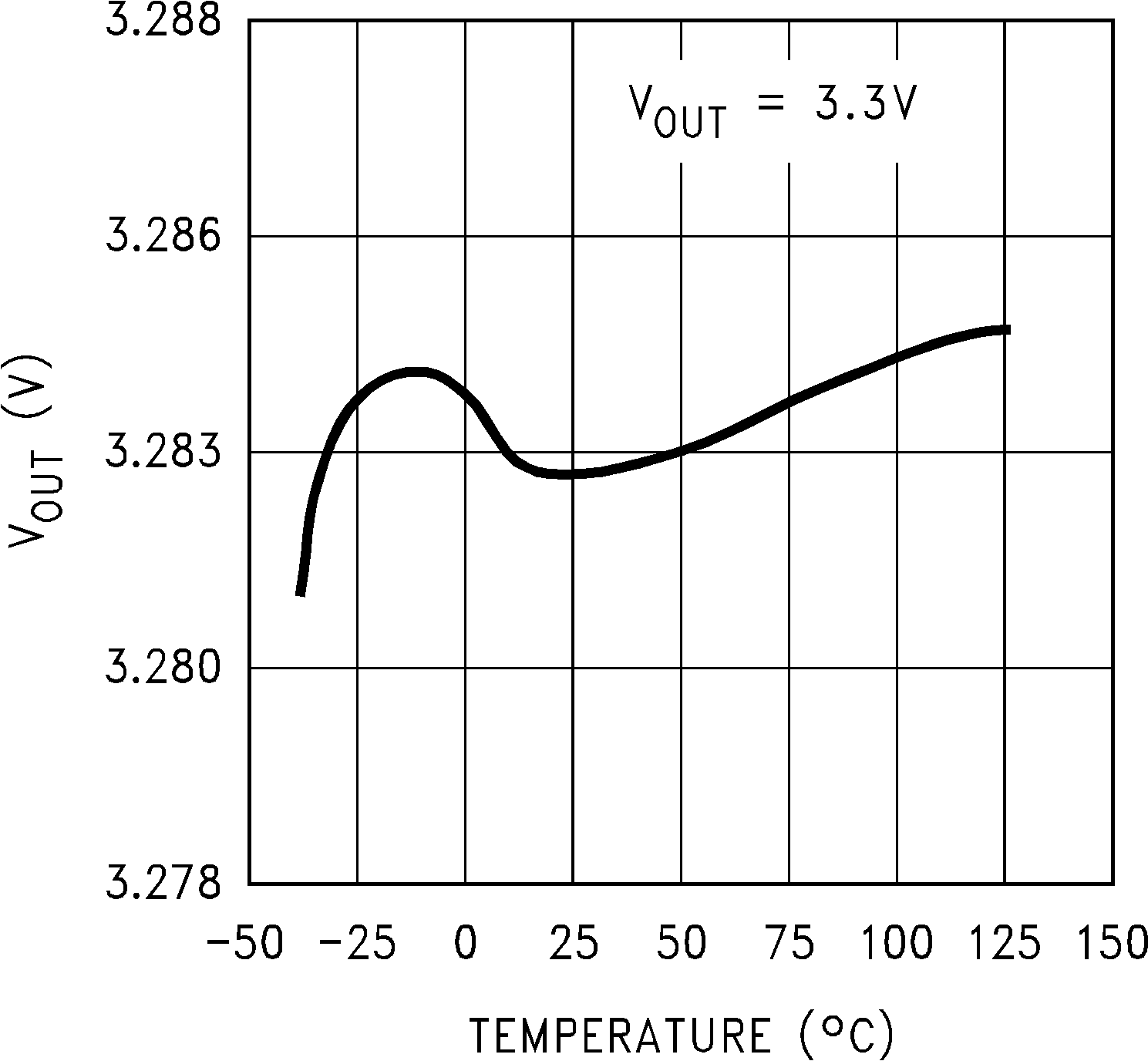

LP2980-N Output Voltage vs Temperature (Legacy Chip)

Figure 5-1 Output Voltage vs Temperature (Legacy Chip)
LP2980-N Output Voltage vs VIN (Legacy Chip)

Figure 5-3 Output Voltage vs VIN (Legacy Chip)
LP2980-N Dropout Voltage vs VIN (New Chip)

Figure 5-5 Dropout Voltage vs VIN (New Chip)
LP2980-N Dropout Voltage vs Temperature (Legacy Chip)

Figure 5-7 Dropout Voltage vs Temperature (Legacy Chip)

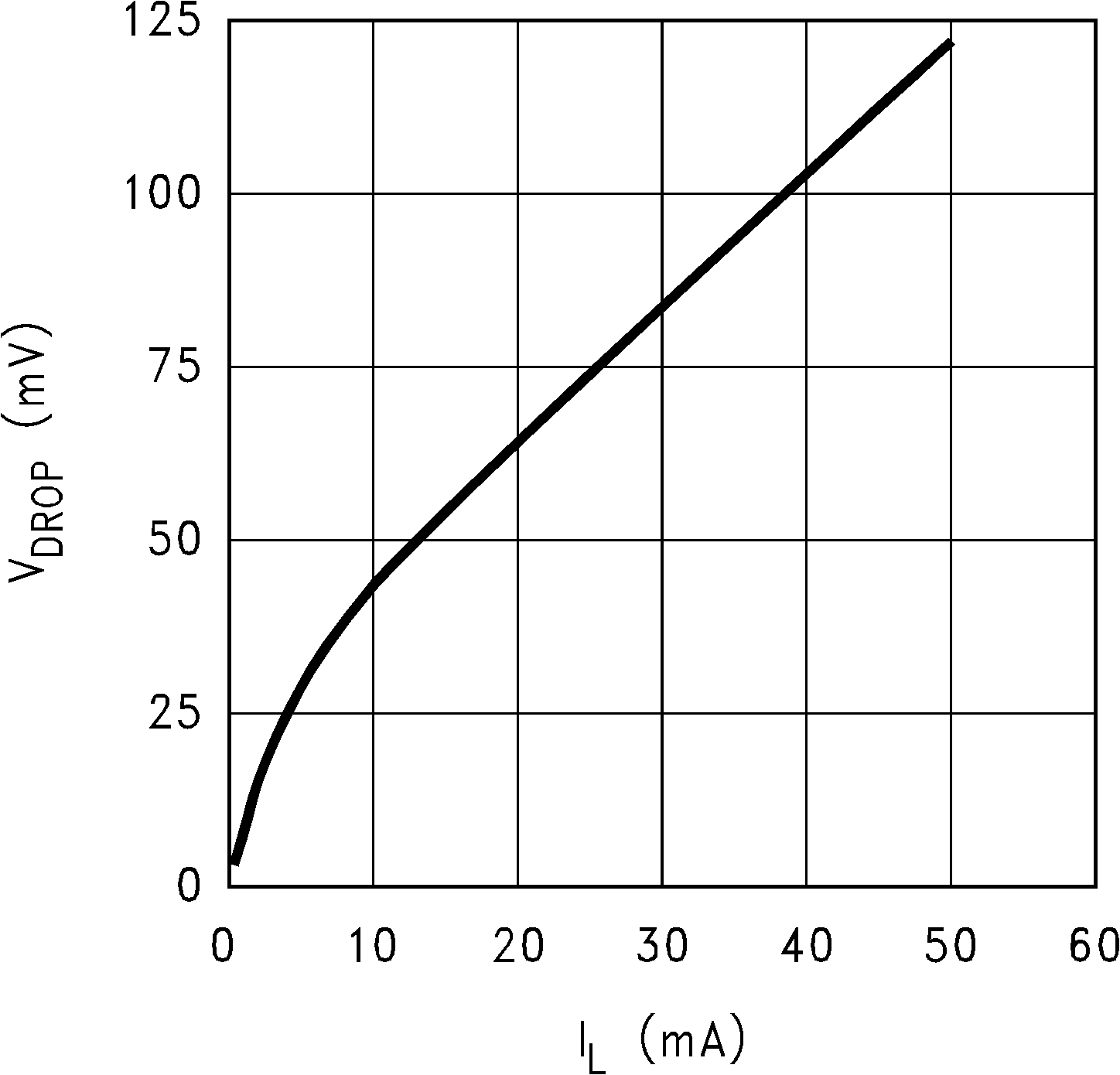

LP2980-N Dropout Voltage vs Load Current (Legacy Chip)

Figure 5-9 Dropout Voltage vs Load Current (Legacy Chip)
LP2980-N Ground Pin Current vs Temperature (Legacy Chip)

Figure 5-11 Ground Pin Current vs Temperature (Legacy Chip)
LP2980-N Ground Pin Current vs Load Current (Legacy Chip)

Figure 5-13 Ground Pin Current vs Load Current (Legacy Chip)
LP2980-N Input Current vs VIN (Legacy Chip)

Figure 5-15 Input Current vs VIN (Legacy Chip)

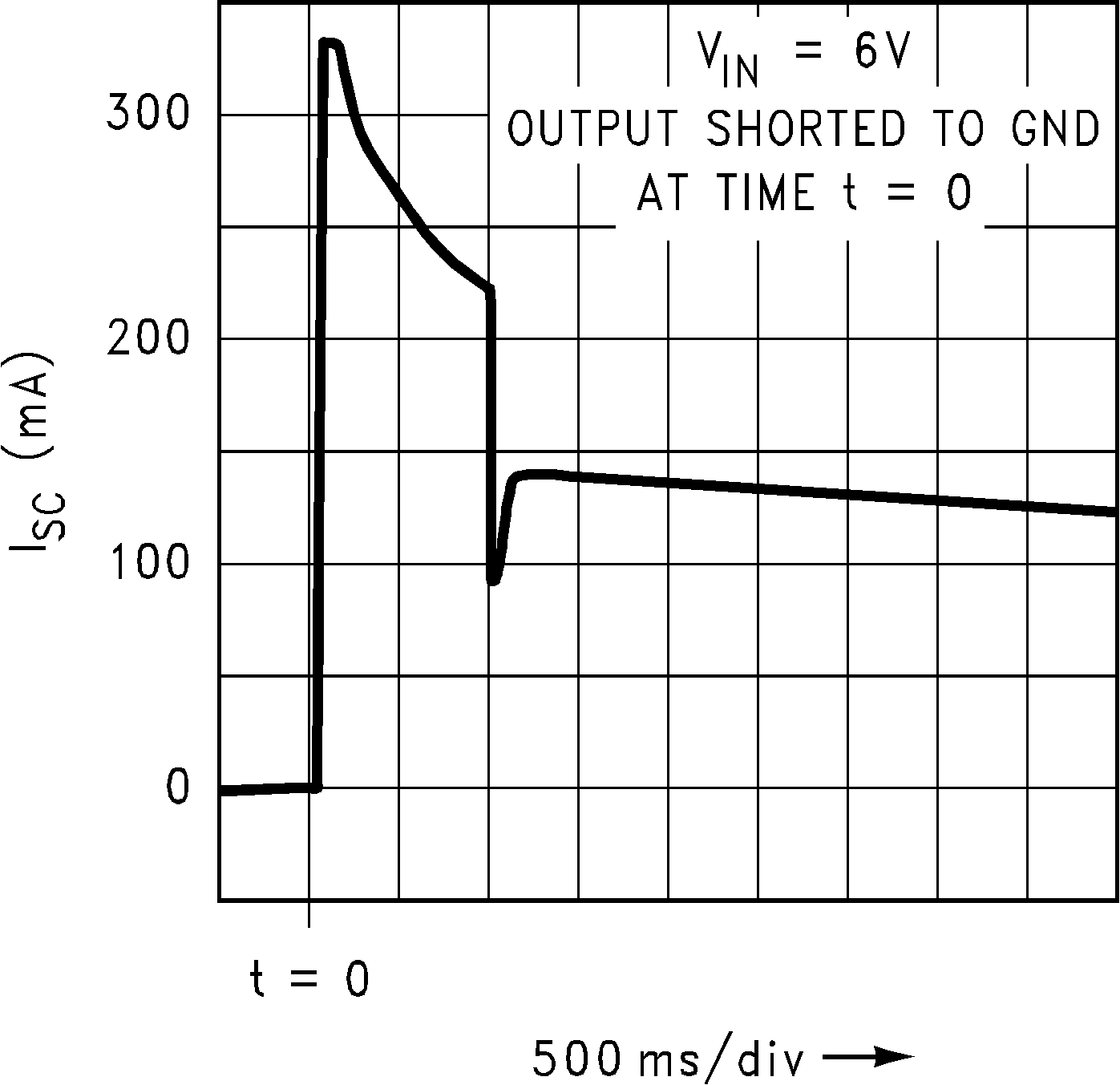

LP2980-N Short-Circuit Current vs Time (Legacy Chip)

Figure 5-17 Short-Circuit Current vs Time (Legacy Chip)
LP2980-N Short-Circuit Current vs Temperature (Legacy Chip)

Figure 5-19 Short-Circuit Current vs Temperature
(Legacy Chip)
LP2980-N Short-Circuit Current vs Time (Legacy Chip)

Figure 5-21 Short-Circuit Current vs Time (Legacy Chip)
LP2980-N Output Impedance vs Frequency (Legacy Chip)

Figure 5-23 Output Impedance vs Frequency (Legacy Chip)
LP2980-N Output Noise Density (Legacy Chip)

Figure 5-25 Output Noise Density (Legacy Chip)
LP2980-N Output Noise Density vs IOUT (New Chip)
VOUT = 3.3V, COUT = 2.2μF
Figure 5-27 Output Noise Density vs IOUT (New Chip)
LP2980-N Ripple Rejection vs COUT (New Chip)
VOUT = 3.3V, IOUT = 50mA
Figure 5-29 Ripple Rejection vs COUT (New Chip)
LP2980-N Input to Output Leakage vs Temperature (Legacy Chip)

Figure 5-31 Input to Output Leakage vs Temperature
(Legacy Chip)
LP2980-N Output Reverse Leakage vs Temperature (New Chip)

Figure 5-33 Output Reverse Leakage vs Temperature
(New Chip)
LP2980-N Turn-On Waveform (New Chip)
VOUT = 3.3V, IOUT = 50mA
Figure 5-35 Turn-On Waveform (New Chip)
LP2980-N Turnoff Waveform (New Chip)
VOUT = 3.3V, IOUT = 50mA
Figure 5-37 Turnoff Waveform (New Chip)
LP2980-N ON/OFF Pin Current vs VON/OFF (New Chip)
VIN = 16V
Figure 5-39 ON/OFF Pin Current vs VON/OFF (New Chip)
LP2980-N 1μF ESR Range vs IOUT (Legacy Chip)

Figure 5-41 1μF ESR Range vs IOUT (Legacy Chip)
LP2980-N 10μF ESR Range vs IOUT (Legacy Chip)

Figure 5-43 10μF ESR Range vs IOUT (Legacy Chip)
LP2980-N Output Voltage vs Temperature (New Chip)
VIN = 4.3V, VOUT = 3.3V
Figure 5-2 Output Voltage vs Temperature (New Chip)
LP2980-N Output Voltage vs VIN (New Chip)

Figure 5-4 Output Voltage vs VIN (New Chip)
LP2980-N Dropout Voltage vs VIN and Temperature (New Chip)

Figure 5-6 Dropout Voltage vs VIN and Temperature (New Chip)
LP2980-N Dropout Voltage vs Temperature (New Chip)

Figure 5-8 Dropout Voltage vs Temperature (New Chip)
LP2980-N Dropout Voltage vs Load Current (New Chip)

Figure 5-10 Dropout Voltage vs Load Current (New Chip)
LP2980-N Ground Pin Current vs Temperature (New Chip)

Figure 5-12 Ground Pin Current vs Temperature (New Chip)
LP2980-N Ground Pin Current vs Load Current (New Chip)

Figure 5-14 Ground Pin Current vs Load Current (New Chip)
LP2980-N Input Current vs Input Voltage (New Chip)

Figure 5-16 Input Current vs Input Voltage (New Chip)
LP2980-N Short-Circuit Current vs Time (New Chip)
VIN = 6V
Figure 5-18 Short-Circuit Current vs Time (New Chip)
LP2980-N Short-Circuit Current vs Temperature (New Chip)

Figure 5-20 Short-Circuit Current vs Temperature
(New Chip)
LP2980-N Short-Circuit Current vs Time (New Chip)
 VIN = 16V
Figure 5-22 Short-Circuit Current vs Time (New Chip)
LP2980-N Output Impedance vs Frequency (Legacy Chip)

Figure 5-24 Output Impedance vs Frequency (Legacy Chip)
LP2980-N Output Noise Density vs COUT (New Chip)
VOUT = 3.3V, IOUT = 50mA
Figure 5-26 Output Noise Density vs COUT (New Chip)
LP2980-N Ripple Rejection (Legacy Chip)

Figure 5-28 Ripple Rejection (Legacy Chip)
LP2980-N Ripple Rejection vs IOUT (New Chip)
VOUT = 3.3V, COUT = 2.2μF
Figure 5-30 Ripple Rejection vs IOUT (New Chip)
LP2980-N Output Reverse Leakage vs Temperature (Legacy Chip)

Figure 5-32 Output Reverse Leakage vs Temperature
(Legacy Chip)

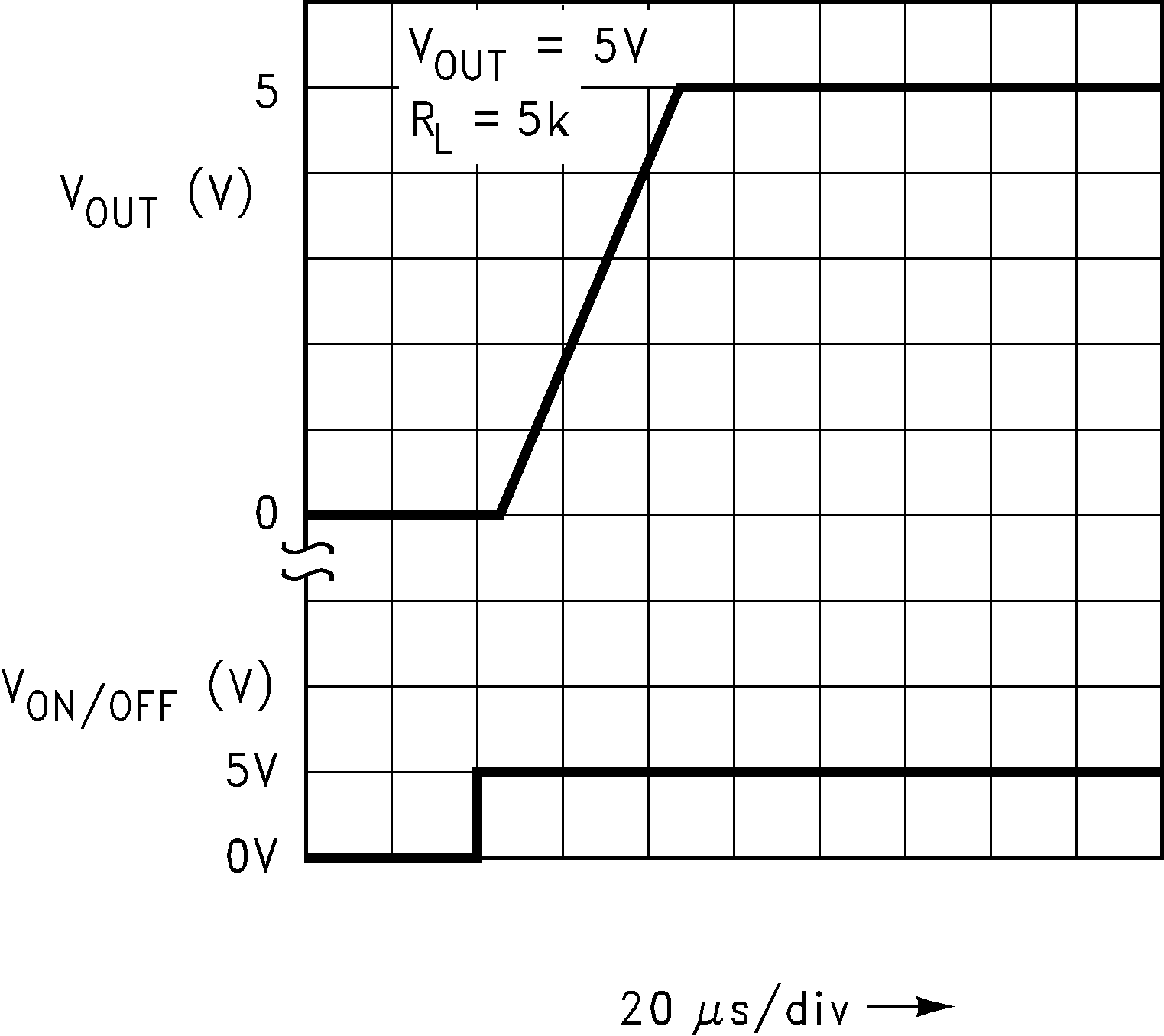

LP2980-N Turn-On Waveform (Legacy Chip)

Figure 5-34 Turn-On Waveform
(Legacy Chip)
LP2980-N Turnoff Waveform (Legacy Chip)

Figure 5-36 Turnoff Waveform (Legacy Chip)
LP2980-N ON/OFF Pin Current vs VON/OFF (Legacy Chip)

Figure 5-38 ON/OFF Pin Current vs VON/OFF (Legacy Chip)
LP2980-N ON/OFF Pin Current vs VON/OFF (New Chip)
VIN = 4.3V
Figure 5-40 ON/OFF Pin Current vs VON/OFF (New Chip)
LP2980-N 2.2μF ESR Range vs IOUT (Legacy Chip)

Figure 5-42 2.2μF ESR Range vs IOUT (Legacy Chip)
