8.2.3.5 VOUT = 2.5 V

MODE = High for FPWM Mode2.5-V Adjustable Output
MODE = Low for Auto PFM Mode
Figure 8-30 Efficiency
2.5-V Adjustable OutputIOUT = 1 A
Figure 8-32 Output Ripple 20-MHz BW

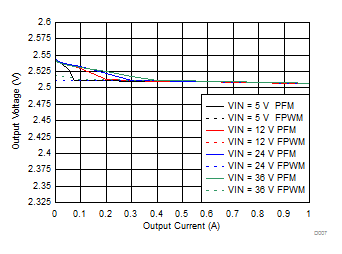

GUID-71903505-0008-4845-929B-5B5979844821-low.gifFigure 8-34 Line and Load Regulation

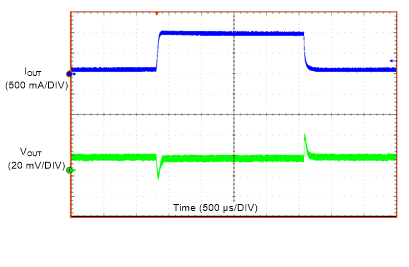

2.5-V Adjustable OutputMODE = High
10% to 100% Load Step
Figure 8-31 Load Transient
2.5-V Adjustable OutputIOUT = 1 A

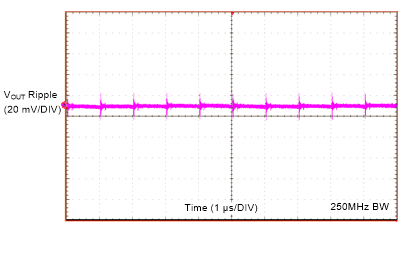

Figure 8-33 Output Ripple 250-MHz BW
GUID-ACA2EC04-85CC-4143-B2A6-C6250AA8ECEA-low.gifFigure 8-35 Start-up with 24-V Input
