Application Curves

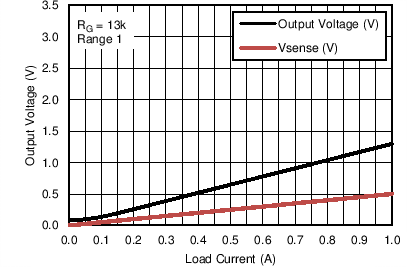

Figure 8-2 shows the resulting circuit voltages with the input load swept from 0 A to 1 A, with RGAIN= 13 kΩ for operation in Range 1 (preferring accuracy over all load operating conditions).

Also shown in Figure 8-3 is the resulting output voltage with RGAIN = 33 kΩ for operation in Range 3 (sacrificing low load supply accuracy while optimizing overall resolution at normal load operating conditions).

GUID-EFEF1954-A989-44AE-AACC-E8BB45C9FECA-low.pngFigure 8-2 Resulting Input and Output Voltages vs Load Current for Range 1
GUID-AC69A6A6-78ED-4B89-B11E-817A714DC6E0-low.pngFigure 8-3 Resulting Input and Output Voltages vs Load Current For Range 3
