Specifications

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(4)(2)(1)
MIN MAX UNIT
Supply voltage (VCC to GND) –0.3 85 V
RSP or RSN to GND –0.3 85 V
VOUT to GND –0.3 to the lesser of (VCC + 0.3) or +20 V
VREF pins
(LMP8481 only)
Other VREF pin tied to ground –0.3 12 V
Applied to both VREF pins tied together –0.3 6
Differential input voltage –85 85 V
Current into output pin –20(5) 20 mA
Current into any other pins –5(5) 5 mA
Operating temperature –40 125 °C
Junction temperature -40 150 °C
Storage temperature –65 150 °C
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
If Military/Aerospace specified devices are required, contact the Texas Instruments Sales Office/Distributors for availability and specifications.
Exceeding the Recommended Operating Conditions for extended periods of time may effect device reliability or cause parametric shifts.
The maximum power dissipation must be derated at elevated temperatures and is dictated by TJ(MAX), θJA, and the ambient temperature, TA. The maximum allowable power dissipation PDMAX = (TJ(MAX) –TA)/ θJA or the number given in Absolute Maximum Ratings, whichever is lower.
When the input voltage (VIN) at any pin exceeds power supplies (VIN < GND or VIN > VS ), the current at that pin must not exceed 5 mA, and the voltage (VIN) has to be within the Absolute Maximum Ratings for that pin. The 20-mA package input current rating limits the number of pins that can safely exceed the power supplies with current flow to four pins.

ESD Ratings

VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±750
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

Recommended Operating Conditions

Expected normal operating conditions over free-air temperature range (unless otherwise noted)(3)
MIN MAX UNIT
Supply voltage (VCC) 4.5 76 V
Common mode voltage 4.0 76 V
Reference input (LMP8481 only) VREFA and VREFB tied together –0.3 to the lesser of (VCC – 1.5) or +6 V
Single VREF pin with other VREF pin grounded –0.3 or +12 where the average of the two VREF pins is less than the lesser of (VCC – 1.5) or +6

Thermal Information

THERMAL METRIC(1) LMP8480, LMP8481 UNIT
DGK (VSSOP)
8 PINS
RθJA Junction-to-ambient thermal resistance 185 °C/W
For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.

Electrical Characteristics

unless otherwise specified, all limits specified for at TA = 25°C, VCC = 4.5 V to 76 V, 4.5 V ≤ VCM ≤ 76 V, RL = 100 kΩ, VSENSE = (VRSP – VRSN) = 0 V(1)
PARAMETER TEST CONDITIONS MIN(3) TYP(2) MAX(3) UNIT
VOS Input offset voltage (RTI) VCC = VRSP = 48 V, ΔV = 100 mV TA = 25°C ±80 ±265 µV
–40°C ≤ TA ≤ 125°C ±900
TCVOS Input offset voltage drift(4) ±6 µV°C
IB Input bias current(7) VCC = VRSP = 76 V, per input 6.3 μA
VCC = VRSP = 76 V, per input,
–40°C ≤ TA ≤ 125°C
12
ILEAK Input leakage current VCC = 0, VRSP = 86 V, both inputs together 0.01 μA
VCC = 0, VRSP = 86 V, both inputs together, –40°C ≤ TA ≤ 125°C 2
VSENSE (MAX) Differential input voltage across sense resistor(6) VCC = 16 -T version,
–40°C ≤ TA ≤ 125°C
667 mV
-F version,
–40°C ≤ TA ≤ 125°C
267
-S version,
–40°C ≤ TA ≤ 125°C
222
-H version,
–40°C ≤ TA ≤ 125°C
133
AV Gain -T version 20 V/V
-T version, –40°C ≤ TA ≤ 125°C 19.8 20.2
-S version 60
-S version, –40°C ≤ TA ≤ 125°C 59.5 60.5
-H version 100
-H version, –40°C ≤ TA ≤ 125°C 99.2 100.8
Gain error VCC = VRSP = 48 V TA = 25°C ±0.6%
–40°C ≤ TA ≤ 125°C ±0.8%
DC PSRR DC power supply rejection ratio VRSP = 48 V, VCC = 4.5 V to 76 V 122 dB
VRSP = 48 V, VCC = 4.5 V to 76 V,
–40°C ≤ TA ≤ 125°C
100
DC CMRR DC common mode rejection ratio VCC = 48 V, VRSP = 4.5 V to 76 V 124 dB
VCC = 48 V, VRSP = 4.5 V to 76 V,
–40°C ≤ TA ≤ 125°C
100
VCC = 48 V, VRSP = 4 V to 76 V 124
CMVR Input common mode voltage range CMRR > 100 dB, –40°C ≤ TA ≤ 125°C 4 76 V
ROUT Output resistance / load regulation VSENSE = 100 mV 0.1 Ω
VOMAX Maximum output voltage (headroom)
(VOMAX = VCC – VOUT)
VCC = 4.5 V, VRSP = 48 V, VSENSE = +1 V,
IOUT (sourcing) 500 μA
230 500 mV
VOMIN Minimum output voltage VCC = VRSP = 48 V, VSENSE = –1 V,
IOUT (sinking) = 10 µA
3 mV
VCC = VRSP = 48 V, VSENSE = –1 V,
IOUT (sinking) = 10 µA, –40°C ≤ TA ≤ 125°C
15
VCC = VRSP = 4.5 V, VSENSE = –1 V,
IOUT (sinking) = 10 µA
3
VCC = VRSP = 48 V, VSENSE = –1 V,
IOUT (sinking) = 100 µA
18
VCC = VRSP = 48 V, VSENSE = –1 V,
IOUT (sinking) = 100 µA, –40°C ≤ TA ≤ 125°C
55
VCC = VRSP = 4.5 V, VSENSE = –1 V,
IOUT (sinking) = 100 µA
18
VOLOAD Output voltage with load VCC = 28 V, VRSP = 28 V, VSENSE = 600 mV,
I OUT (sourcing) = 500 µA
12 V
VOLREG Output load regulation VCC = 20, VRSP = 16 V, VOUT = 12,
ΔIL = 200 nA to 8 mA
0.001%
ICC Supply current VOUT = 2 V, RL = 10 MΩ, VCC = VRSP = 76 V 88 µA
VOUT = 2 V, RL = 10 MΩ, VCC = VRSP = 76 V, –40°C ≤ TA ≤ 125°C 155
BW –3-dB bandwidth RL = 10 MΩ, CL = 20 pF 270 kHz
SR Slew rate(5) VSENSE from 10 mV to 80 mV, RL = 10 MΩ,
CL = 20 pF
1 V/µs
eni Input referred voltage noise f = 1 kHz 95 nV/√Hz
tSETTLE Output settling time to 1% of final value VSENSE = 10 mV to 100 mV and 100 mV to 10 mV 20 µs
tPU Power-up time VCC = VRSP = 48 V, VSENSE = 100 mV,
output to 1% of final value
50 µs
tRECOVERY Saturation recovery time Output settles to 1% of final value, the device does not experience phase reversal when overdriven 50 µs
CLOAD Max output capacitance load No sustained oscillations 500 pF
Electrical Characteristics table values apply only for factory testing conditions at the temperature indicated. Factory testing conditions result in very limited self-heating of the device such that TJ = TA. No specification of parametric performance is indicated in the electrical tables under conditions of internal self-heating where TJ > TA.
Typical values represent the most likely parametric norm at the time of characterization. Actual typical values can vary over time and also depend on the application and configuration. The typical values are not tested and are not ensured on shipped production material.
All limits are specified by testing, design, or statistical analysis.
Offset voltage temperature drift is determined by dividing the change in VOS at the temperature extremes by the total temperature change.
The number specified is the average of rising and falling slew rates and measured at 90% to 10%.
This parameter is specified by design and/or characterization and is not tested in production.
Positive bias current corresponds to current flowing into the device.

Typical Characteristics

unless otherwise specified, TA = 25°C, VCC = 4.5 V to 76 V, 4.5 V < VCM < 76 V, RL = 100 kΩ, VSENSE = (VRSP – VRSN) = 0 V, for all gain options

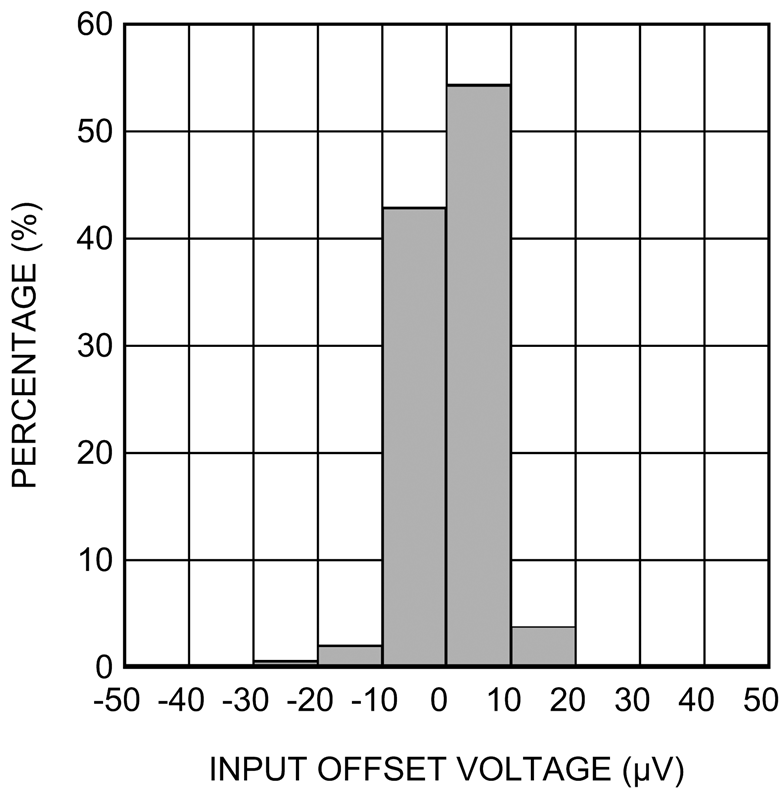

LMP8480 LMP8481 30191519.png Figure 1. Offset Voltage Histogram

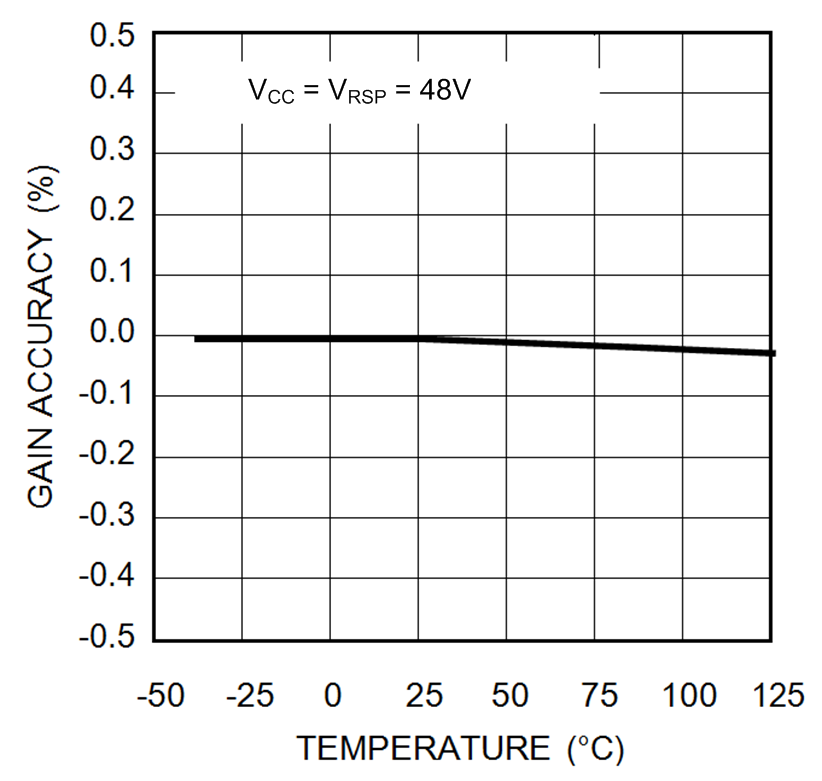

LMP8480 LMP8481 30191509.png Figure 3. Typical Gain Accuracy vs Temperature

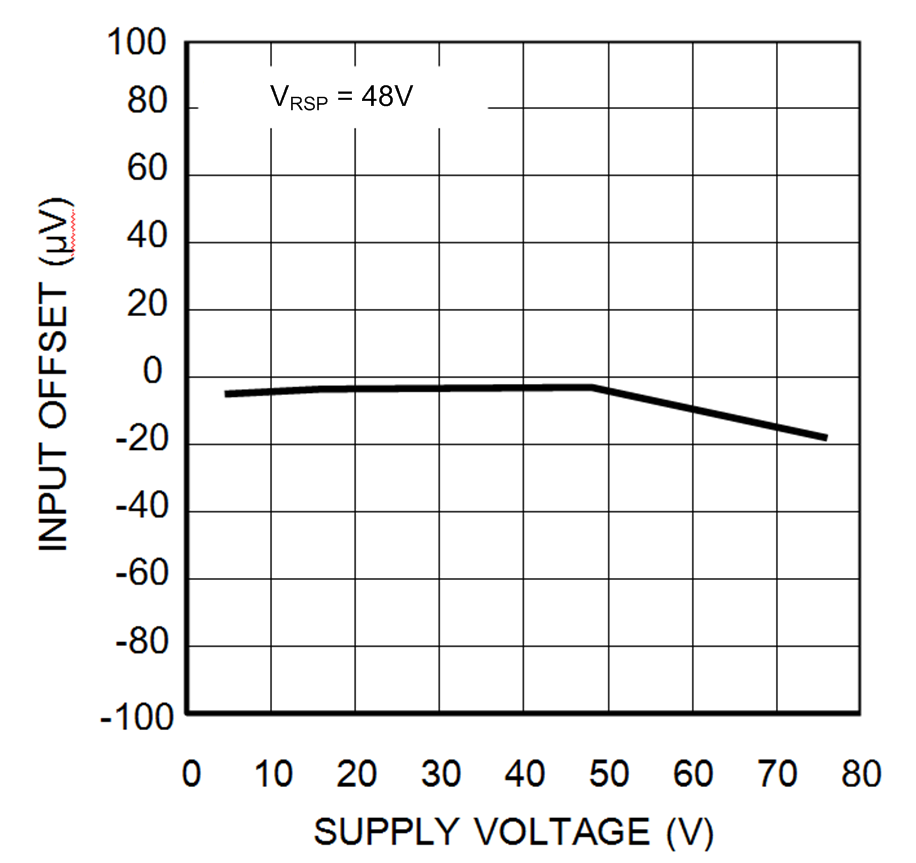

LMP8480 LMP8481 30191514.png Figure 5. Typical Offset Voltage vs Supply Voltage

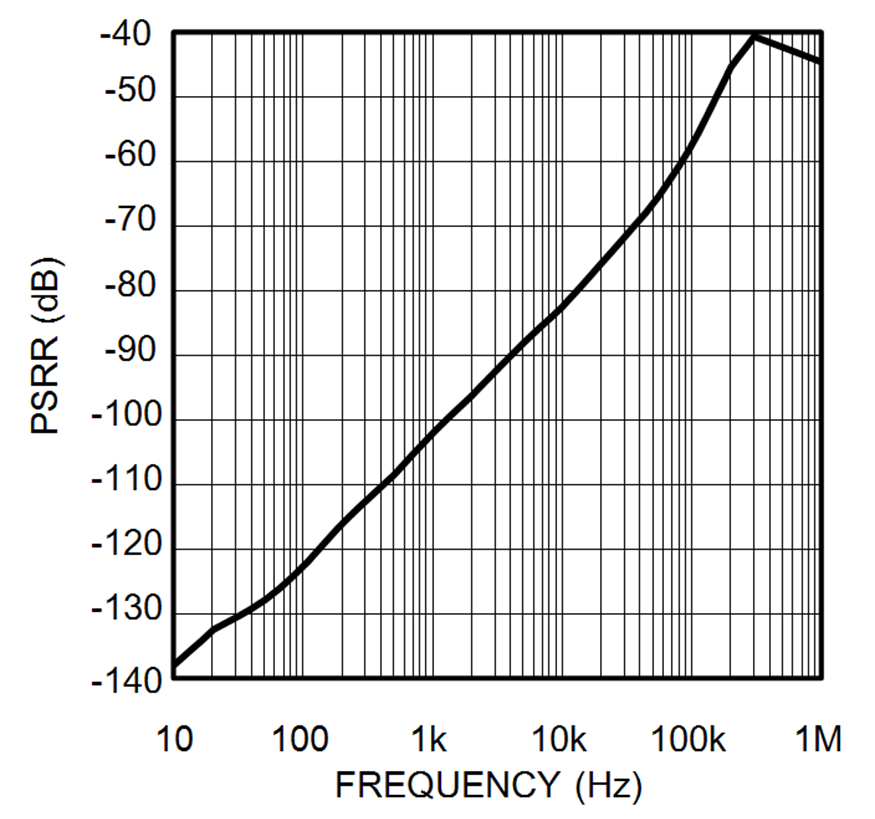

LMP8480 LMP8481 30191517.png Figure 7. AC Power Supply Rejection Ratio vs Frequency

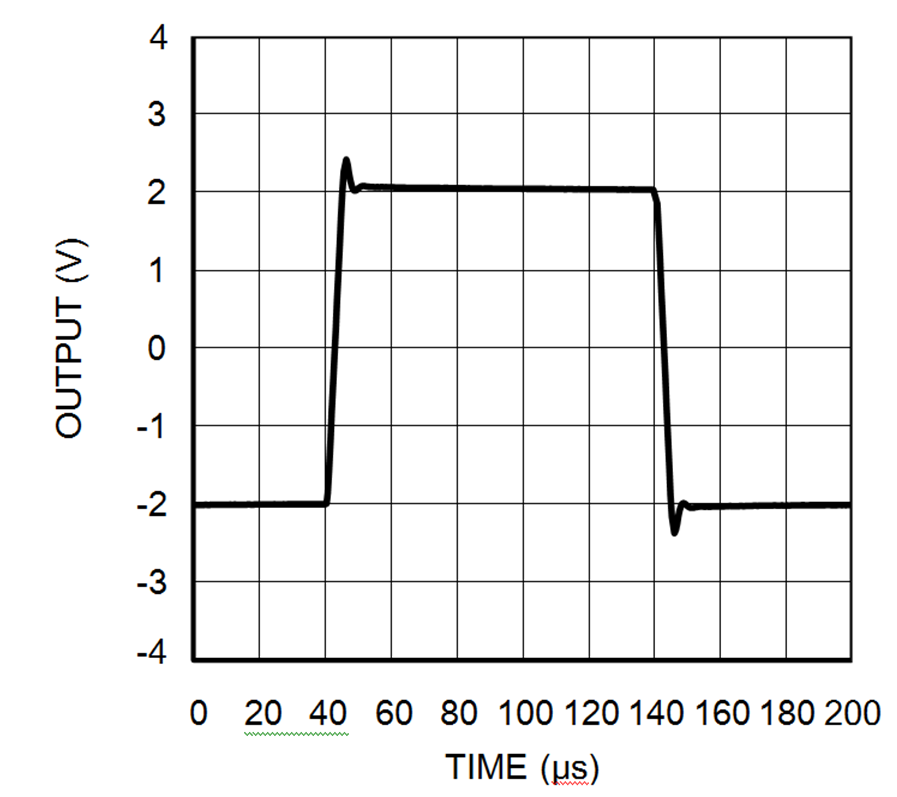

LMP8480 LMP8481 30191559.png Figure 9. Large Signal Pulse Response

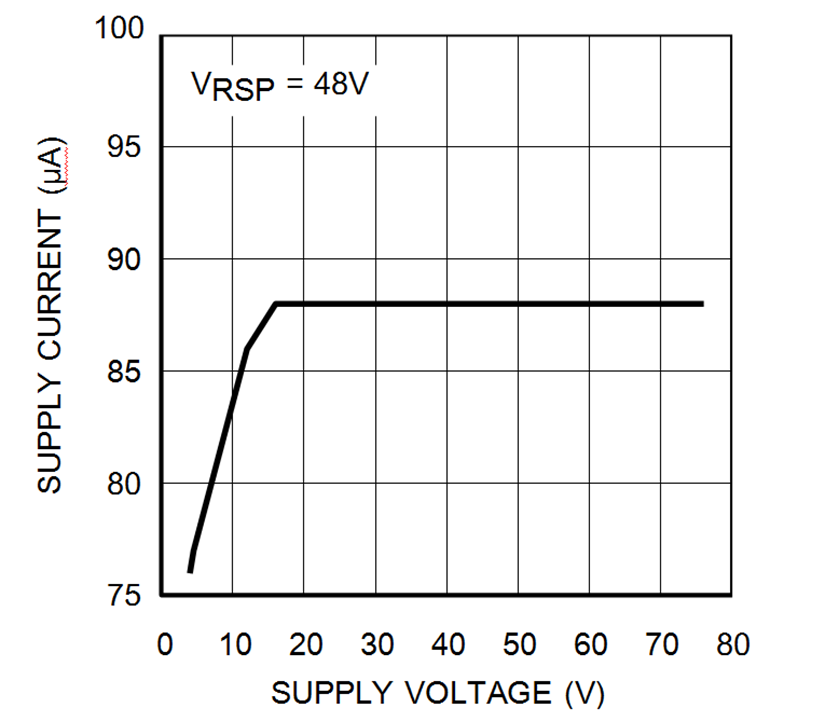

LMP8480 LMP8481 30191511.png Figure 11. Supply Current vs Supply Voltage

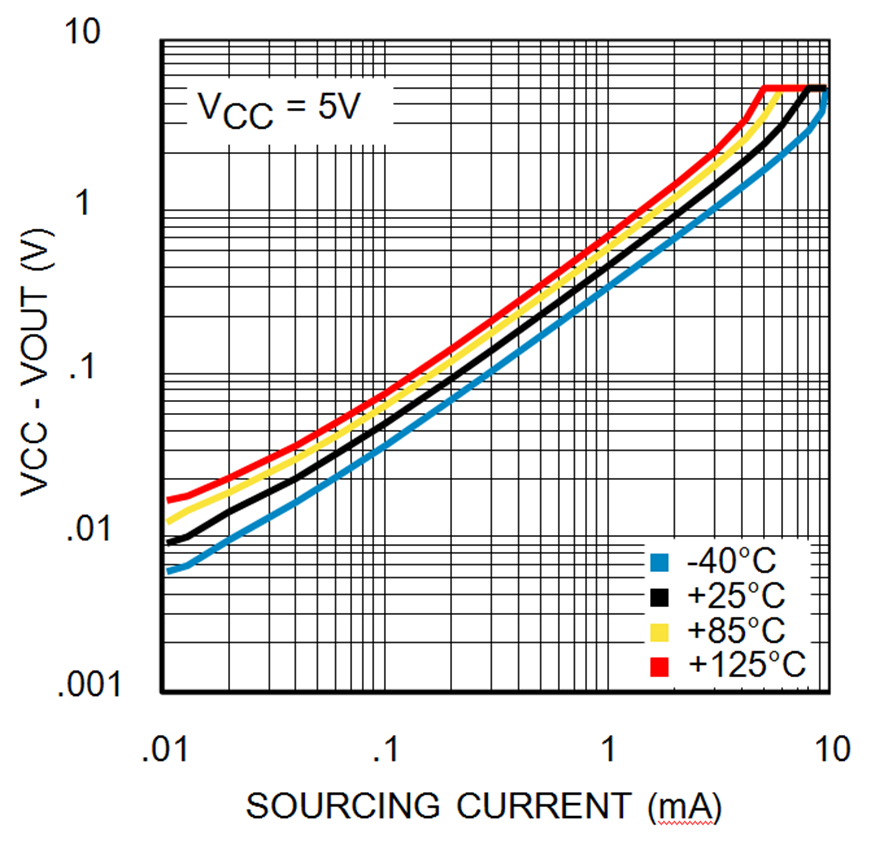

LMP8480 LMP8481 30191504.png Figure 13. Saturated Output Sourcing Current at 4.5 V

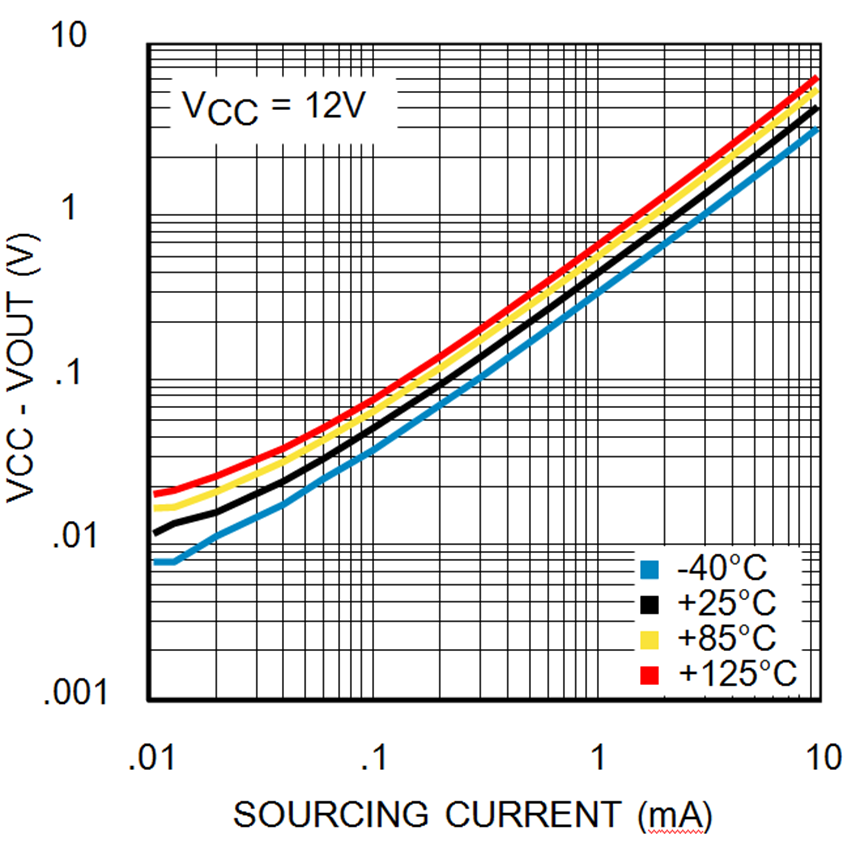

LMP8480 LMP8481 30191506.png Figure 15. Saturated Output Sourcing Current at 12 V

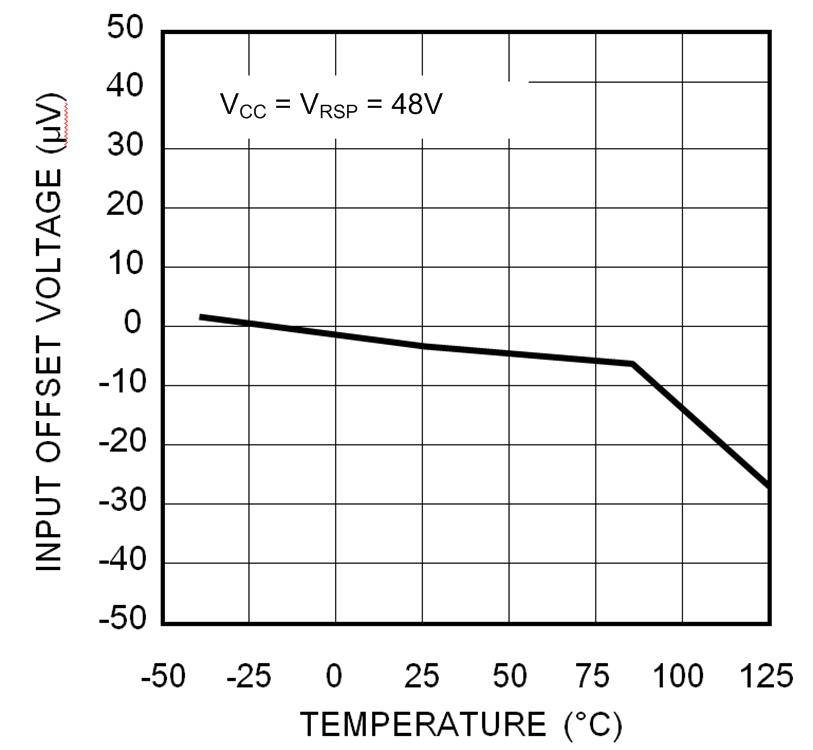

LMP8480 LMP8481 30191508.png Figure 2. Typical Offset Voltage vs Temperature

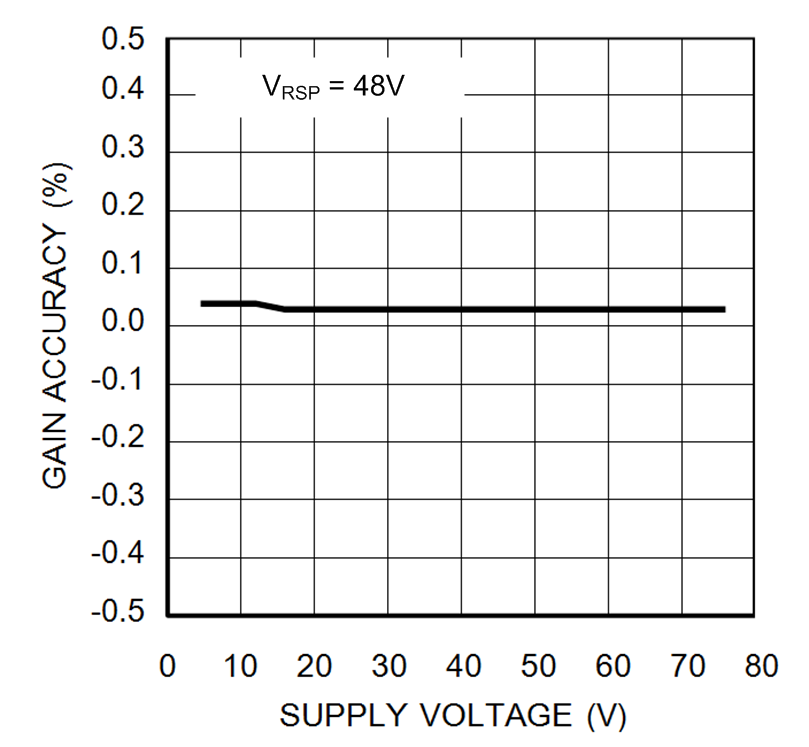

LMP8480 LMP8481 30191512.png Figure 4. Typical Gain Accuracy vs Supply Voltage

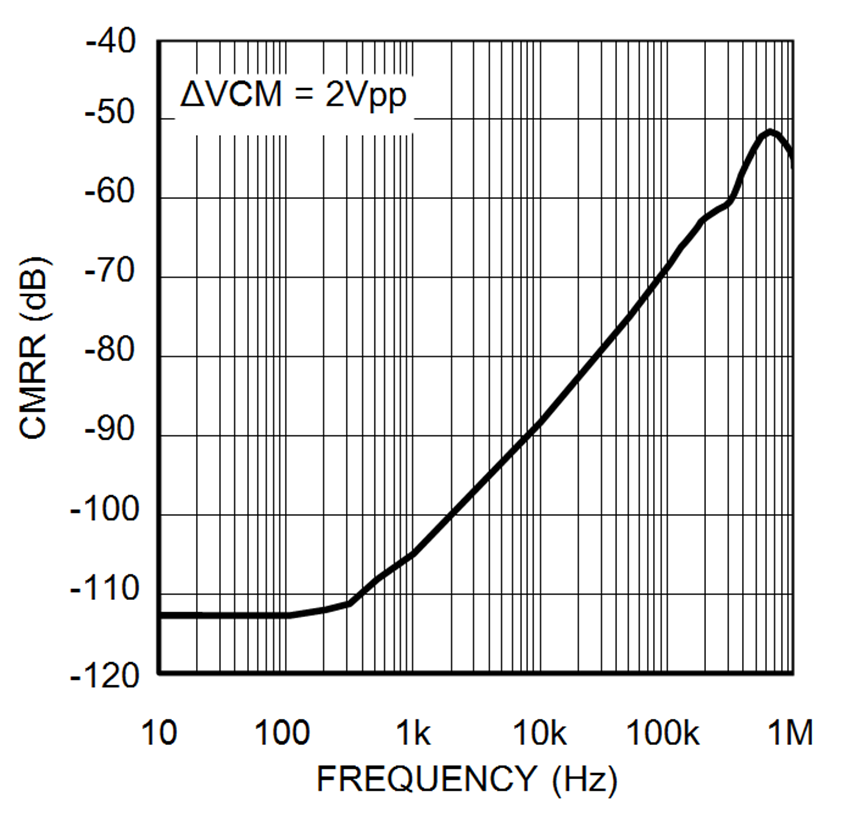

LMP8480 LMP8481 30191516.png Figure 6. AC Common-Mode Rejection Ratio vs Frequency

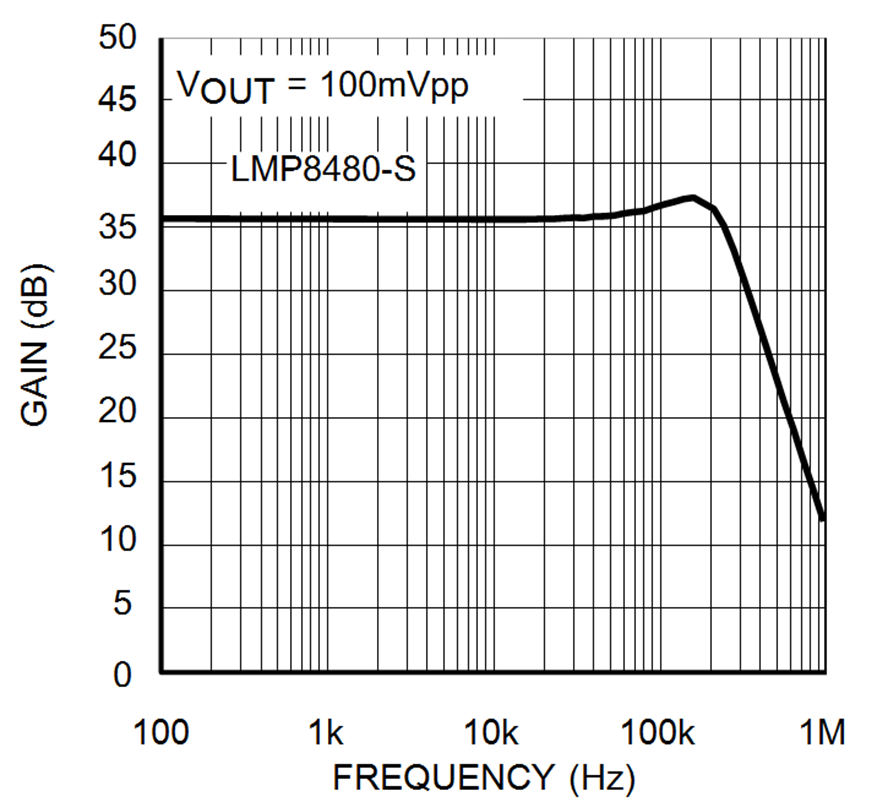

LMP8480 LMP8481 30191513.png Figure 8. Small Signal Gain vs Frequency

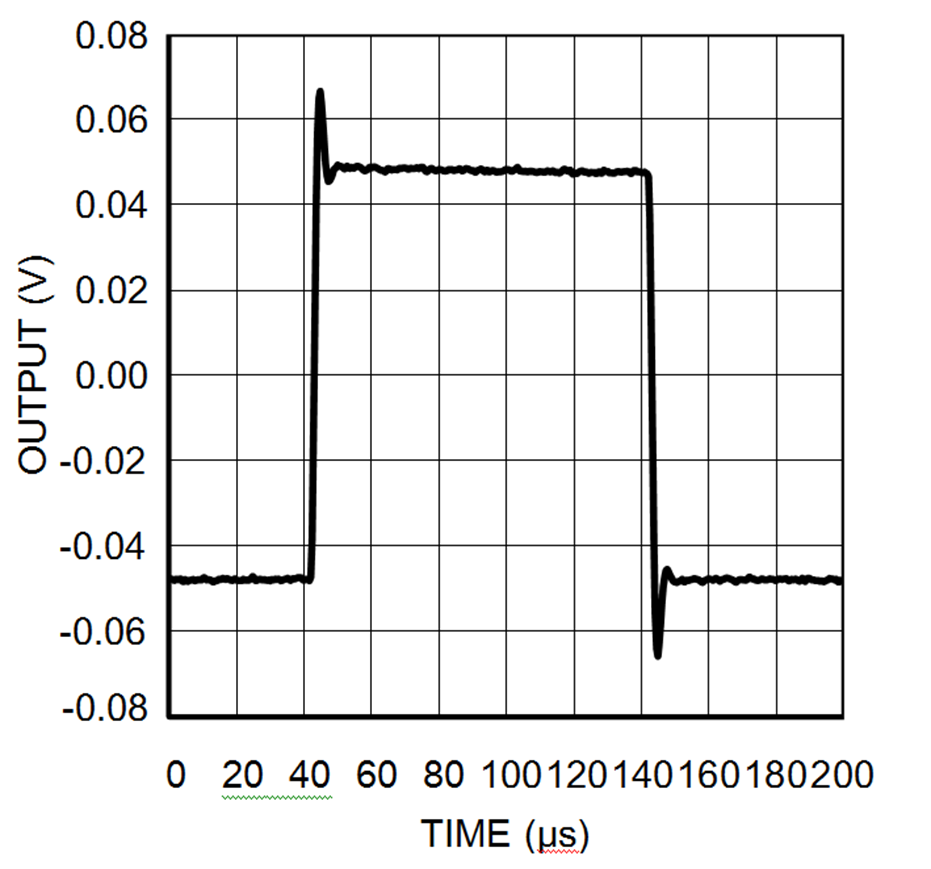

LMP8480 LMP8481 30191560.png Figure 10. Small Signal Pulse Response

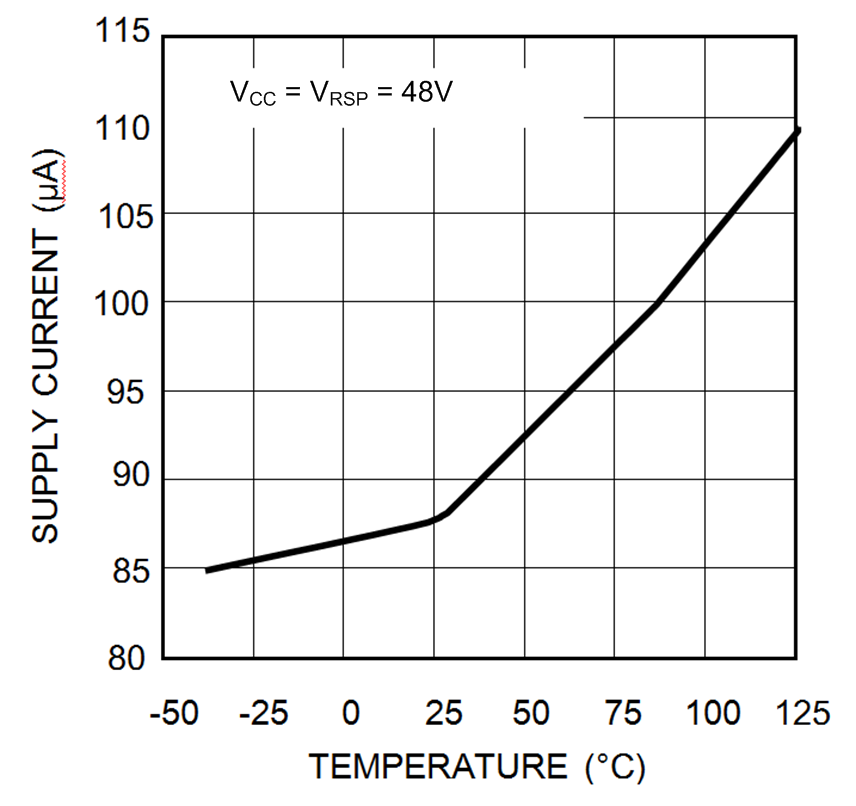

LMP8480 LMP8481 30191510.png Figure 12. Supply Current vs Temperature

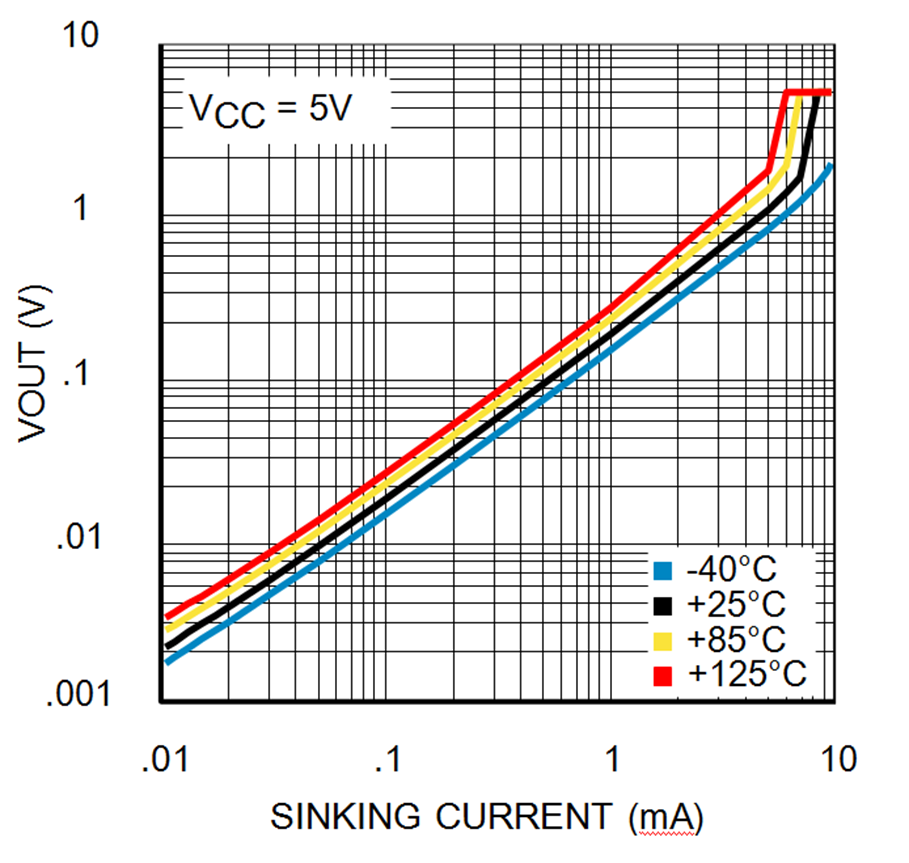

LMP8480 LMP8481 30191505.png Figure 14. Saturated Output Sinking Current at 4.5 V

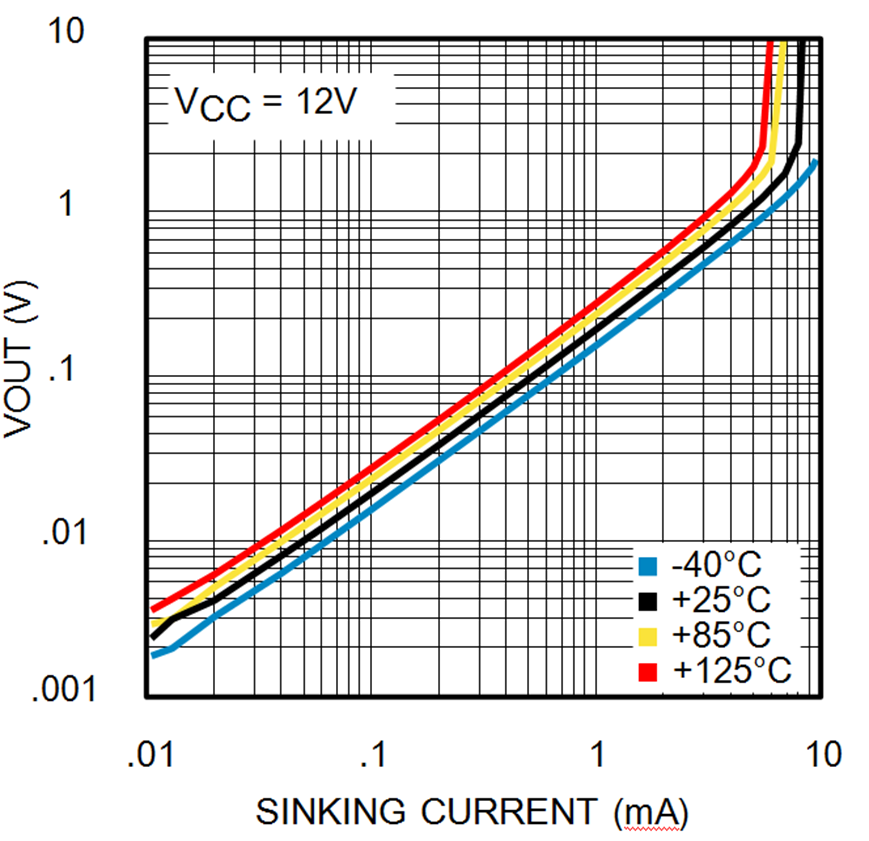

LMP8480 LMP8481 30191507.png Figure 16. Saturated Output Current Sinking at 12 V
