Application Performance Plots

Depending on the selected input, the LMH1219 performance was measured with the test setups shown in Figure 23 and Figure 24.

LMH1219 app_test_setup_diagram_IN0.gifFigure 23. Test Setup for LMH1219 Cable Equalizer (IN0+)
LMH1219 app_test_setup_diagram_IN1.gifFigure 24. Test Setup for LMH1219 PCB Equalizer (IN1±)

The eye diagrams in this subsection show how the LMH1219 improves overall signal integrity in the data path for 75-Ω coax cable input length (CC) when IN0 is selected and 100-Ω differential FR4 PCB trace when IN1 is selected.

LMH1219 12G_75m_85mvDIV_14psDIV_EQonly.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L
Figure 25. 11.88 Gbps, CC = 75 m Belden 1694A,
EQ Only
LMH1219 6G_120m_85mvDIV_28psDIV_EQOnly.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L
Figure 27. 5.94 Gbps, CC = 120 m Belden 1694A,
EQ Only
LMH1219 3G_200m_85mvDIV_56psDIV_EQonly.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L
Figure 29. 2.97 Gbps, CC = 200 m Belden 1694A,
EQ Only
LMH1219 1.5G_280m_85mvDIV_112psDIV_EQonly.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L
Figure 31. 1.485 Gbps, CC = 280 m Belden 1694A,
EQ Only
LMH1219 270M_600m_85mvDIV_617psDIV_EQonly.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = L
Figure 33. 270 Mbps, CC = 600 m Belden 1694A,
EQ Only
LMH1219 IN1_10GbE_20in5mil_100mvDIV_30psDIV_EQonly_manual1100.gif
IN1 Selected, VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = L
Figure 35. 10.3125 Gbps, TL = 20 in. 5-Mil FR4,
EQ Only
LMH1219 IN1_12G_20in5mil_100mvDIV_20psDIV_EQonly_manual1100.gif
IN1 Selected, VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = L,
Override reference rate to lock to SMPTE rates
Figure 37. 11.88 Gbps, TL = 20 in. 5-Mil FR4,
EQ Only
LMH1219 12G_75m_85mvDIV_14psDIV_Retimed.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F
Figure 26. 11.88 Gbps, CC = 75 m Belden 1694A,
Reclocked
LMH1219 6G_120m_85mvDIV_28psDIV_Retimed.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F
Figure 28. 5.94 Gbps, CC = 120 m Belden 1694A,
Reclocked
LMH1219 3G_200m_85mvDIV_56psDIV_Retimed.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F
Figure 30. 2.97 Gbps, CC = 200 m Belden 1694A,
Reclocked

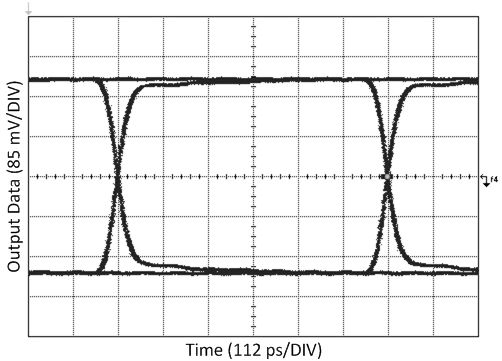

LMH1219 1.5G_280m_85mvDIV_112psDIV_Retimed.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F
Figure 32. 1.485 Gbps, CC = 280 m Belden 1694A,
Reclocked
LMH1219 270M_600m_85mvDIV_617psDIV_Retimed.gif
IN0 Selected, VOD_DE = H, IN_OUT_SEL = H, OUT_CTRL = F
Figure 34. 270 Mbps, CC = 600 m Belden 1694A,
Reclocked
LMH1219 IN1_10GbE_20in5mil_100mvDIV_30psDIV_Retimed.gif
IN1 Selected, VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = F
Figure 36. 10.3125 Gbps, TL = 20 in. 5-Mil FR4,
Reclocked
LMH1219 IN1_12G_20in5mil_100mvDIV_20psDIV_Retimed.gif
IN1 Selected, VOD_DE = H, IN_OUT_SEL = L, OUT_CTRL = F,
Override reference rate to lock to SMPTE rates
Figure 38. 11.88 Gbps, TL = 20 in. 5-Mil FR4,
Reclocked
