Typical Characteristics

TA = 25 °C, V(IN) = 12 V, V(SHDN)= 2 V, R(ILIM) = 120 kΩ, IMON = FLT = OPEN, C(IN) = 0.1 μF, C(OUT) = 1 μF, C(dVdT) = OPEN. (Unless otherwise noted)
LM76202-Q1 D001_SLVSEM1.gif

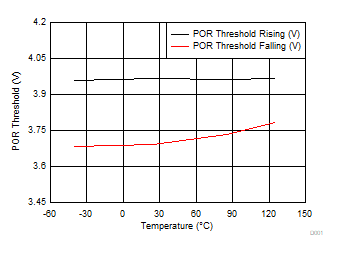

Figure 1. POR Threshold (VPOR) vs Temperature
LM76202-Q1 D003_SLVSEM1.gif

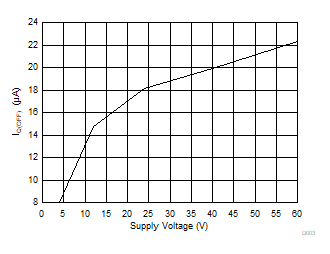

Figure 3. Supply Current OFF (IQOFF) vs Supply Voltage (VIN)
LM76202-Q1 D005_SLVSEM1.gif
Figure 5. OVP Thresholds (VOVPR, VOVPF) vs Temperature
LM76202-Q1 D007_SLVSEM1.gif
Figure 7. ILIM vs RILIM
LM76202-Q1 D009_SLVSEM1.gif

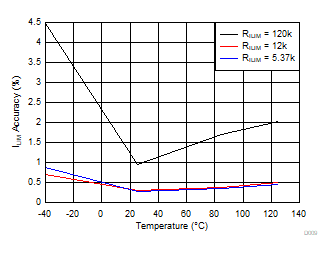

Figure 9. ILIM Accuracy vs Temperature with VIN = 12 V
LM76202-Q1 D011_SLVSEM1.gif
Figure 11. IMON vs IOUT
LM76202-Q1 D013_SLVSEM1.gif
V(OUT) = 24 V V(IN) = 0 V VSHDN = 0 V
Figure 13. Ilkg(OUT) vs Temperature with VIN = 0 V
LM76202-Q1 D015_SLVSEM1.gif
Figure 15. VREVTH vs Temperature
LM76202-Q1 D017_SLVSEM1.gif
Figure 17. ILIM Accuracy vs Temperature with VIN = 24 V
LM76202-Q1 D002_SLVSEM1.gif
Figure 2. Supply Current ON (IQON) vs Supply Voltage (VIN)
LM76202-Q1 D004_SLVSEM1.gif
Figure 4. UVLO Thresholds (VUVLOR, VUVLOF) vs Temperature
LM76202-Q1 D006_SLVSEM1.gif
Figure 6. GAIN(dVdT) vs Temperature
LM76202-Q1 D008_SLVSEM1.gif
TA = -40 to 125 °C
Figure 8. ILIM Accuracy vs Supply Voltage
LM76202-Q1 D010_SLVSEM1.gif
Figure 10. GAIN(IMON) vs Temperature
LM76202-Q1 D012_SLVSEM1.gif
Figure 12. RON vs Temperature
LM76202-Q1 D014_SLVSEM1.gif
V(OUT) = 0 V V(IN) = –24 V VSHDN = 0 V

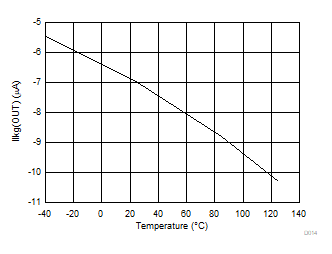

Figure 14. Ilkg(OUT) vs Temperature with VIN = –24 V
LM76202-Q1 D016_SLVSEM1.gif
Figure 16. VFWDTH vs Temperature
LM76202-Q1 D018_SLVSEM1.gif
Taken on 2-layer PCB with 0.07-mm thick copper and copper area of 10.5 cm2 connected to PowerPAD.

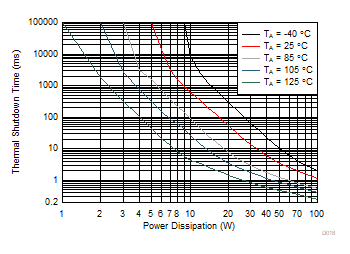

Figure 18. Thermal Shutdown Time vs Power Dissipation
