Pin Configuration and Functions

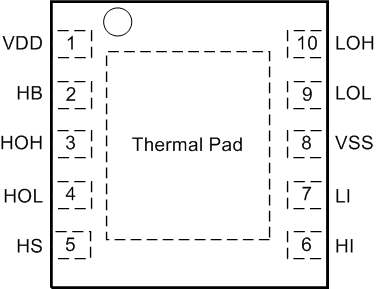

DPR Package
10-Pin WSON With Exposed Thermal Pad
Top View
LM5113 30162901.gif
YFX Package
12-Pin DSBGA
Top View
LM5113 30162902.gif

Pin Functions

PIN TYPE (2) DESCRIPTION
NAME WSON DSBGA
VDD 1 A3, C4(1) P 5-V Positive gate drive supply: locally decouple to VSS using low ESR/ESL capacitor located as close to the IC as possible.
HB 2 D3 P High-side gate driver bootstrap rail: connect the positive terminal of the bootstrap capacitor to HB and the negative terminal to HS. The bootstrap capacitor should be placed as close to the IC as possible.
HOH 3 D2 O High-side gate driver turnon output: connect to the gate of high-side GaN FET with a short, low inductance path. A gate resistor can be used to adjust the turnon speed.
HOL 4 D1 O High-side gate driver turnoff output: connect to the gate of high-side GaN FET with a short, low inductance path. A gate resistor can be used to adjust the turnoff speed.
HS 5 C1, D4(1) P High-side GaN FET source connection: connect to the bootstrap capacitor negative terminal and the source of the high-side GaN FET.
HI 6 B4 I High-side driver control input. The LM5113 inputs have TTL type thresholds. Unused inputs should be tied to ground and not left open.
LI 7 A4 I Low-side driver control input. The LM5113 inputs have TTL type thresholds. Unused inputs should be tied to ground and not left open.
VSS 8 A2 G Ground return: all signals are referenced to this ground.
LOL 9 A1 O Low-side gate driver sink-current output: connect to the gate of the low-side GaN FET with a short, low inductance path. A gate resistor can be used to adjust the turnoff speed.
LOH 10 B1 O Low-side gate driver source-current output: connect to the gate of high-side GaN FET with a short, low inductance path. A gate resistor can be used to adjust the turnon speed.
Exposed Pad EP Exposed pad: TI recommends that the exposed pad on the bottom of the package be soldered to ground plane on the printed-circuit board to aid thermal dissipation.
A3 and C4, C1 and D4 are internally connected
I = Input, O = Output, G = Ground, P = Power
