5 Pin Configuration and Functions

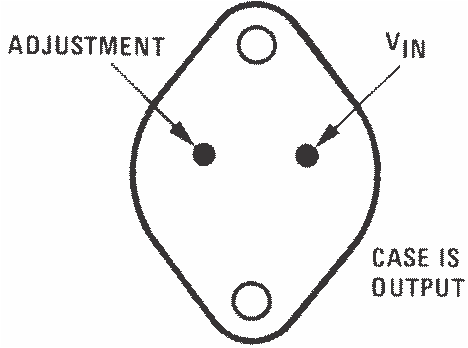

NDS Package
2-Pin TO-CAN
Bottom View
LM338-MIL 00906030.png
Package Number NDS0002A

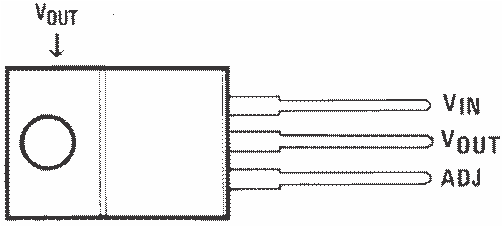

NDE Package
3-Pin TO-220
Front View
LM338-MIL 00906031.png
Package Number NDE0003B

Pin Functions

PIN I/O DESCRIPTION
NAME TO-220 TO-CAN
ADJ 1 1 I Output voltage adjustment pin. Connect to a resistor divider to set VO
VIN 3 2 I Supply input pin
VOUT 2 Case O Voltage output pin
