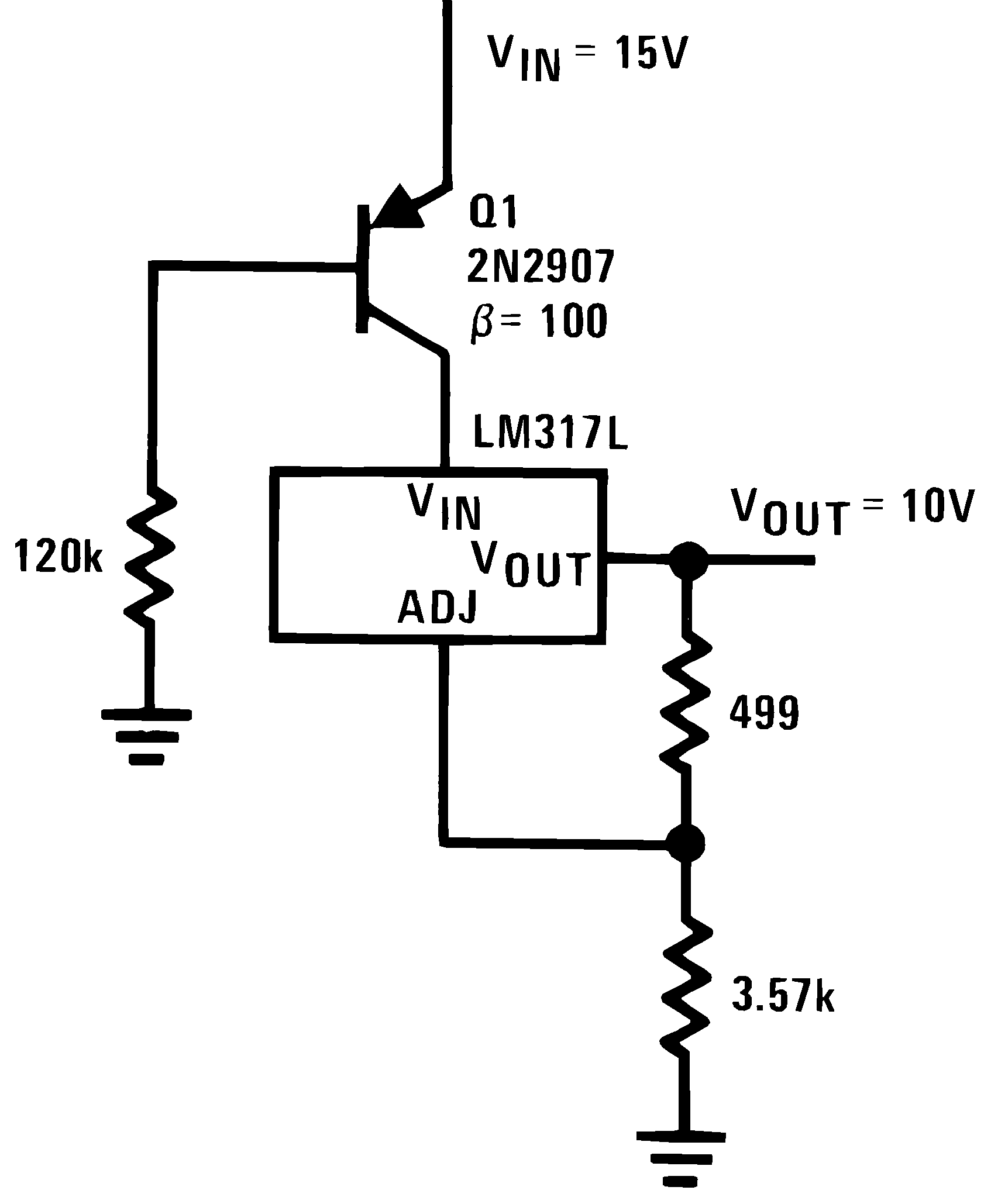

8.2.11 Regulator With 15-mA Short-Circuit Current

This application regulates to a 10-V output with a 15-mA short-circuit current. The output voltage is set by the resistor divider at the output and the PNP is required to set the short-circuit current.

LM317L-N 906420.pngFigure 27. Regulator With 15-mA Short-Circuit Current
