5.11 Typical Characteristics
TA = 25°C, VS = 5V, RPULLUP = 5.1k, CL = 15pF, VCM = 0V, VUNDERDRIVE = 100mV, VOVERDRIVE = 100mV unless otherwise noted.
Figure 5-1 Total Supply Current vs. Supply Voltage
Figure 5-3 Total Supply Current vs. Input Voltage at 3.3V
Figure 5-5 Total Supply Current vs. Input Voltage at 12V
Figure 5-7 Input Offset Voltage vs. Temperature at 3V

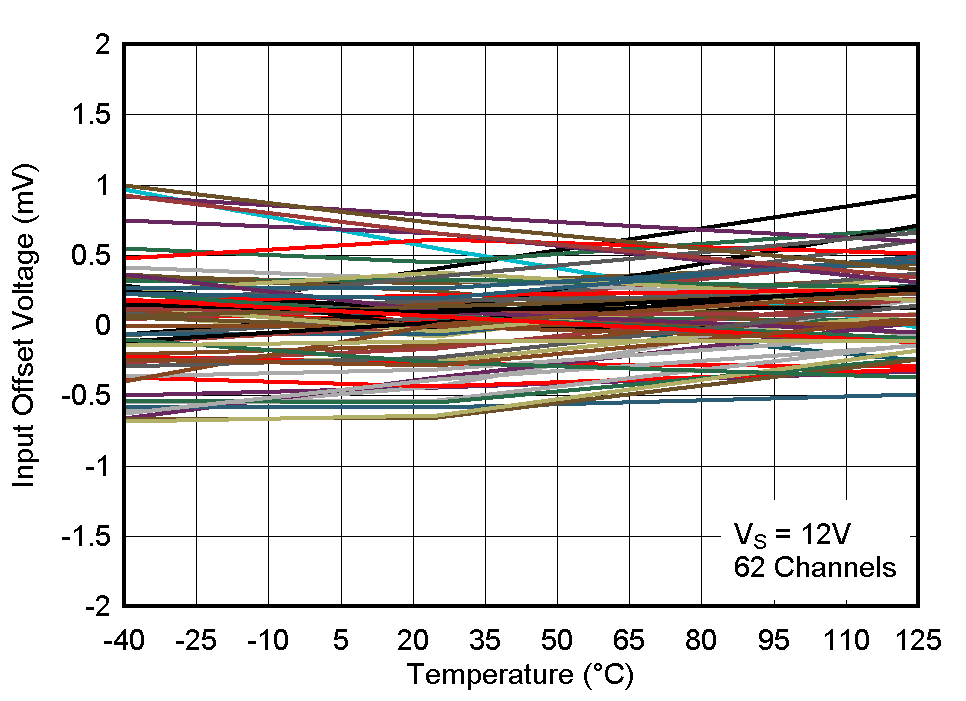

Figure 5-9 Input Offset Voltage vs. Temperature at 12V

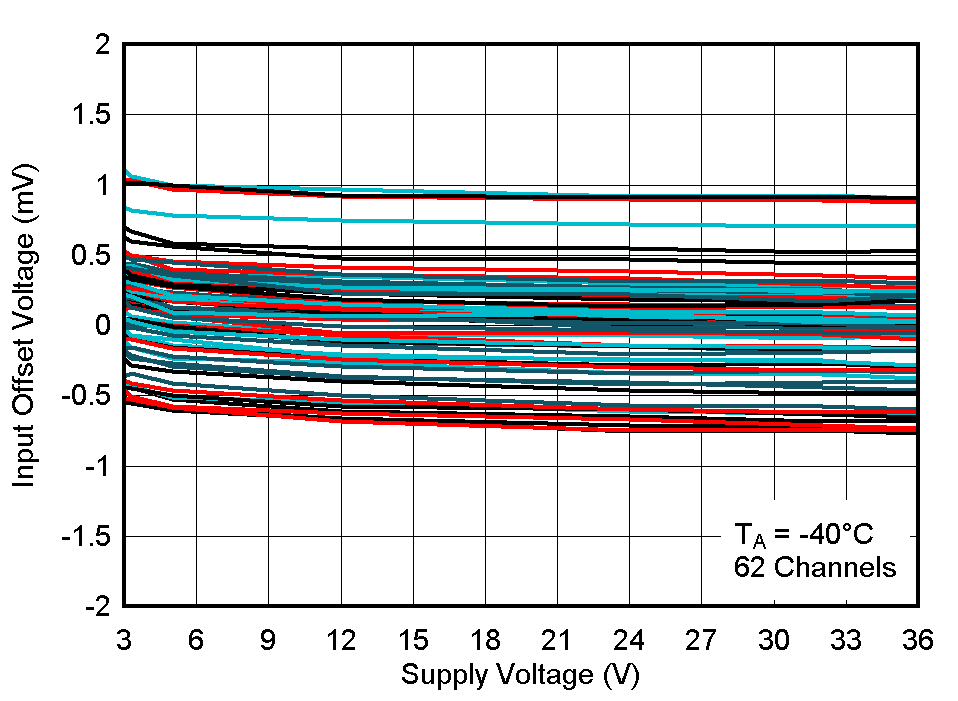

Figure 5-11 Input Offset Voltage vs. Supply Voltage at -40°C

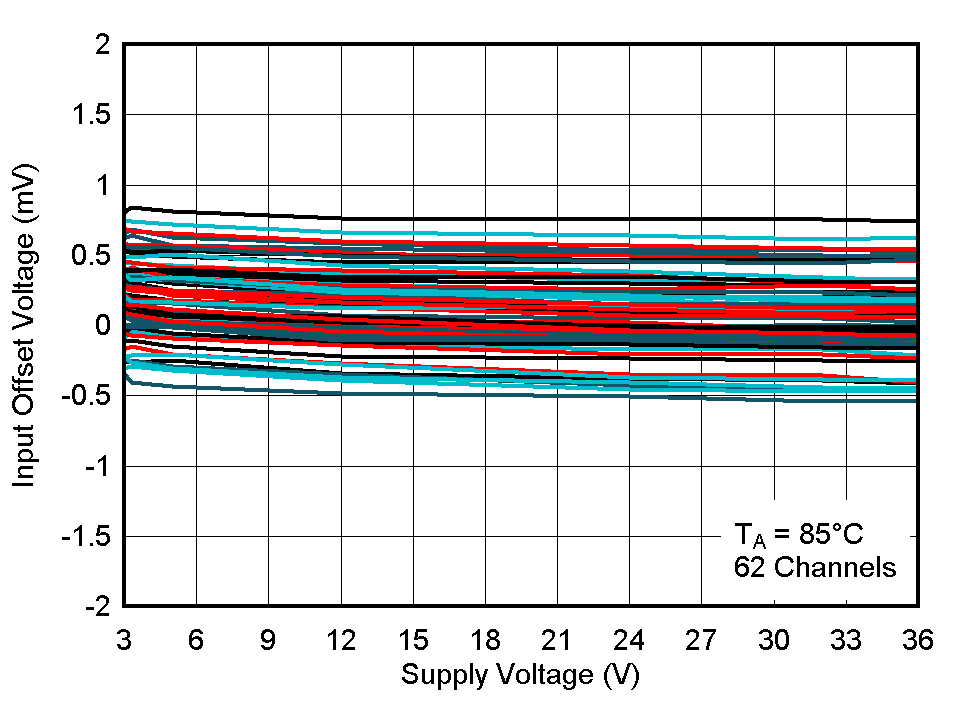

Figure 5-13 Input Offset Voltage vs. Supply Voltage at 85°C
Figure 5-15 Input Bias Current vs. Supply Voltage
Figure 5-17 Input Bias Current vs. Input Voltage at 12V

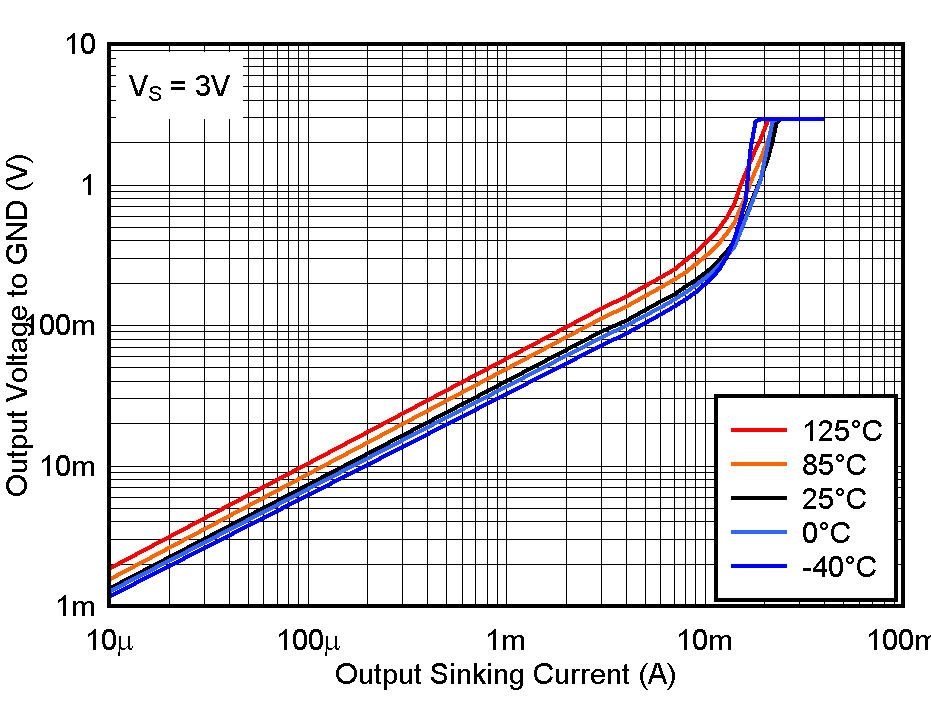

Figure 5-19 Output Low Voltage vs. Output Sinking Current at 3V
Figure 5-21 Output Low Voltage vs. Output Sinking Current at 12V
Figure 5-23 Output High Leakage Current vs.Temperature at 5V
Figure 5-25 High to Low Propagation Delay vs. Input Overdrive Voltage, 5V
Figure 5-27 High to Low Propagation Delay vs. Input Overdrive Voltage, 12V
Figure 5-29 High to Low Propagation Delay vs. Input Overdrive Voltage, 36V

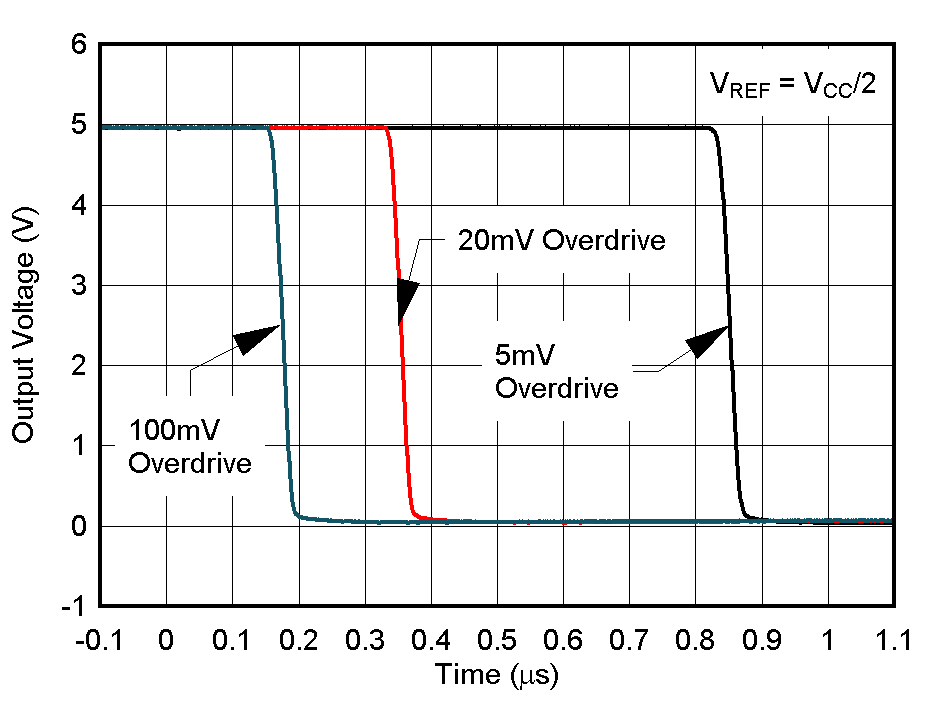

Figure 5-31 Response Time for Various Overdrives, High-to-Low Transition
Figure 5-2 Total Supply Current vs. Input Voltage at 3V
Figure 5-4 Total Supply Current vs. Input Voltage at 5V
Figure 5-6 Total Supply Current vs. Input Voltage at 36V
Figure 5-8 Input Offset Voltage vs. Temperature at 5V

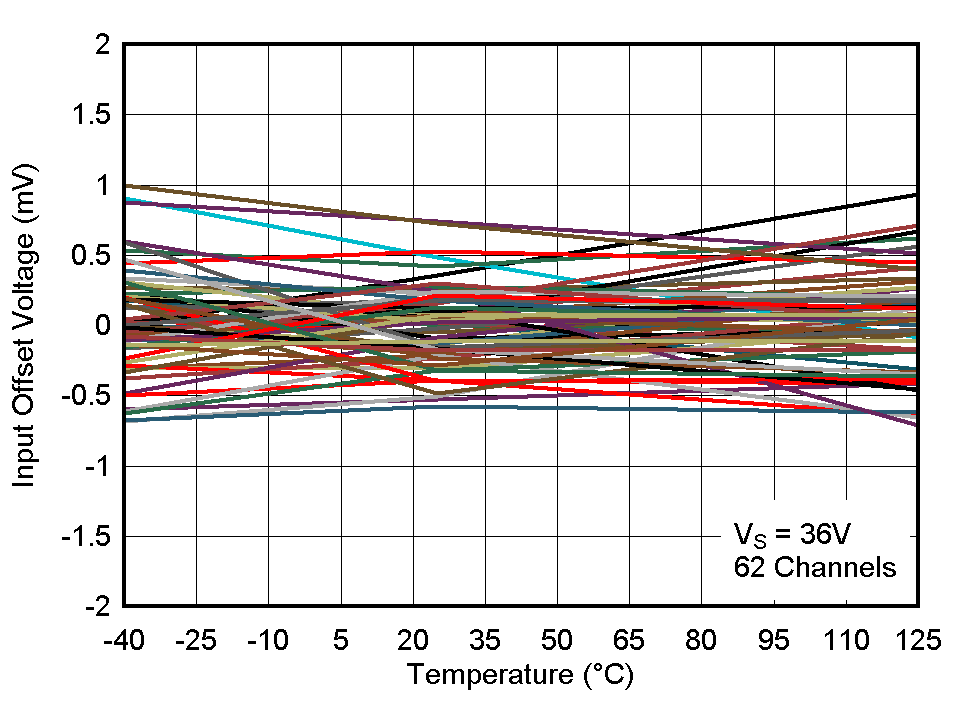

Figure 5-10 Input Offset Voltage vs. Temperature at 36
Figure 5-12 Input Offset Voltage vs. Supply Voltage at 25°C

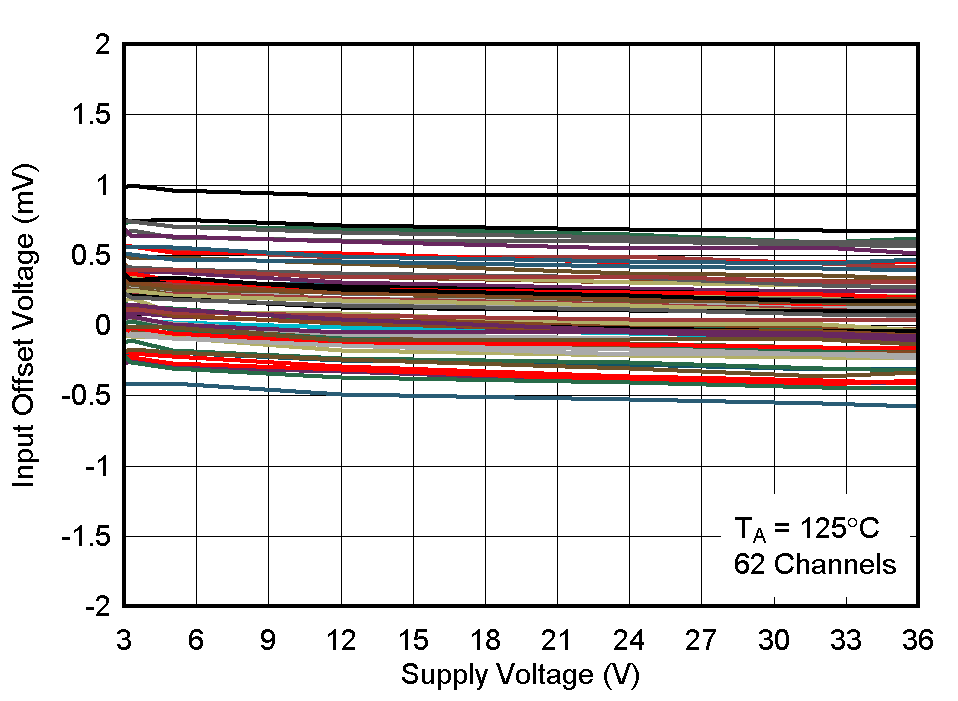

Figure 5-14 Input Offset Voltage vs. Supply Voltage at 125°C
Figure 5-16 Input Bias Current vs. Input Voltage at 5V
Figure 5-18 Input Bias Current vs. Input Voltage at 36V

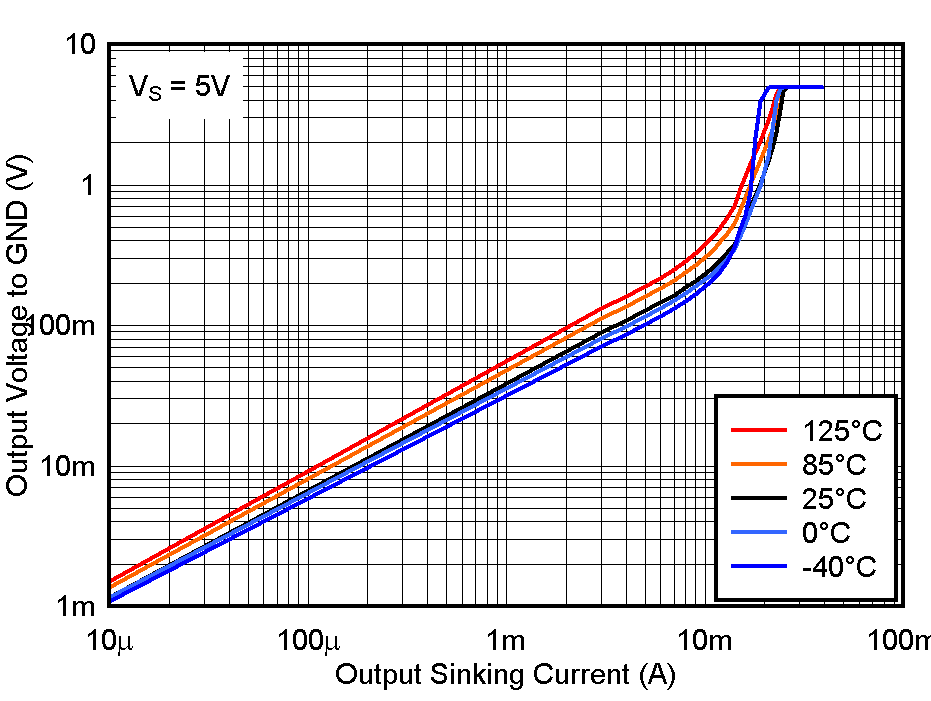

Figure 5-20 Output Low Voltage vs. Output Sinking Current at 5V
Figure 5-22 Output Low Voltage vs.Output Sinking Current at 36V
Figure 5-24 Output High Leakage Current vs. Temperature at 36V
Figure 5-26 Low to High Propagation Delay vs. Input Overdrive Voltage, 5V
Figure 5-28 Low to High Propagation Delay vs. Input Overdrive Voltage, 12V
Figure 5-30 Low to High Propagation Delay vs. Input Overdrive Voltage, 36V

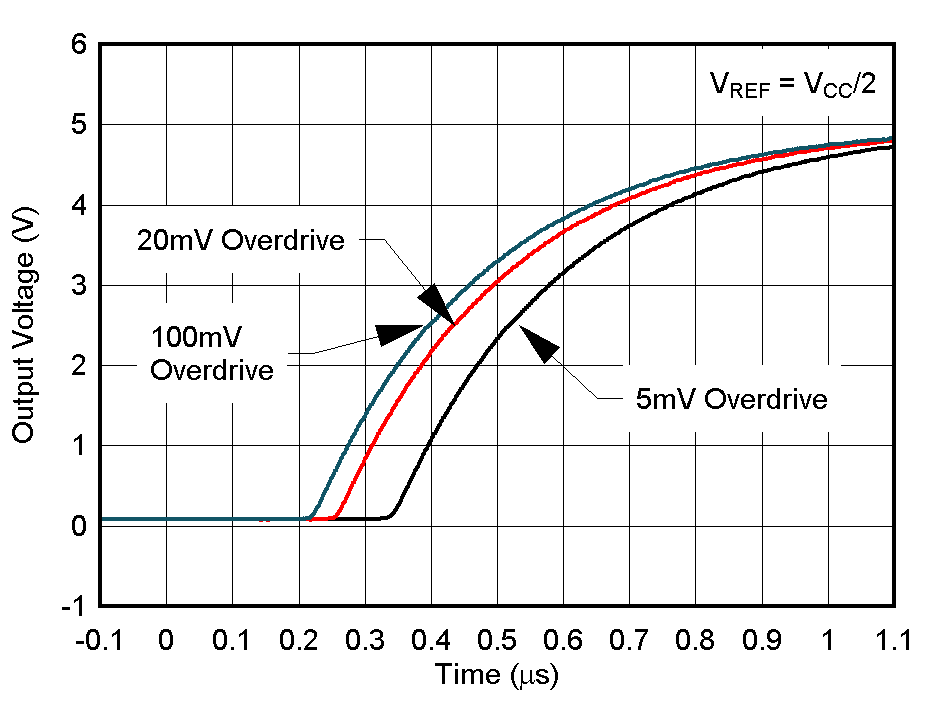

Figure 5-32 Response Time for Various Overdrives, Low-to-High Transition
