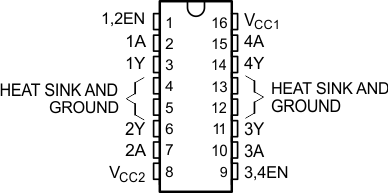

5 Pin Configuration and Functions

NE Package
16-Pin PDIP
Top View
L293 L293D PD1.gif

Pin Functions

PIN TYPE DESCRIPTION
NAME NO.
1,2EN 1 I Enable driver channels 1 and 2 (active high input)
<1:4>A 2, 7, 10, 15 I Driver inputs, noninverting
<1:4>Y 3, 6, 11, 14 O Driver outputs
3,4EN 9 I Enable driver channels 3 and 4 (active high input)
GROUND 4, 5, 12, 13 — Device ground and heat sink pin. Connect to printed-circuit-board ground plane with multiple solid vias
VCC1 16 — 5-V supply for internal logic translation
VCC2 8 — Power VCC for drivers 4.5 V to 36 V
