Typical Characteristics

TA = 25°C CL = 15 pF

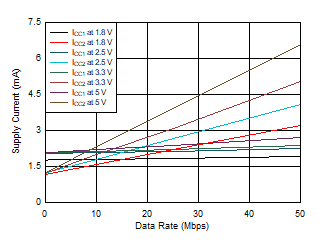

Figure 6-5 ISO6720B Supply Current vs Data Rate (With 15-pF Load)
TA = 25°C CL = 15 pF
Figure 6-7 ISO6721B Supply Current vs Data Rate (With 15-pF Load)
GUID-20210817-SS0I-RK8L-W190-Q8QN7DDSJWKK-low.svg
TA = 25°C CL = 15 pF
Figure 6-9 ISO6721RB Supply Current vs Data Rate (With 15-pF Load)
TA = 25°C
Figure 6-11 High-Level Output Voltage vs High-level Output Current
GUID-20201201-CA0I-X4KW-4M7L-26CVHJRBDBFN-low.svg
Figure 6-13 Power Supply Undervoltage Threshold vs Free-Air Temperature
TA = 25°C CL = No Load
Figure 6-6 ISO6720B Supply Current vs Data Rate (With No Load)
GUID-20201201-CA0I-F4X7-XXWR-HW0T9HRT7TPC-low.svg
TA = 25°C CL = No Load
Figure 6-8 ISO6721B Supply Current vs Data Rate (With No Load)
TA = 25°C CL = No Load
Figure 6-10 ISO6721RB Supply Current vs Data Rate (With No Load)
TA = 25°C
Figure 6-12 Low-Level Output Voltage vs Low-Level Output Current

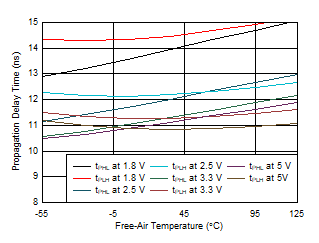

Figure 6-14 Propagation Delay Time vs Free-Air Temperature
