ZHCSID3E September   1997  – June 2018 ISO124

PRODUCTION DATA.

  1. 1 特性
  2. 2 应用
  3. 3 说明
    1.     Device Images
      1.      简化原理图
  4. 4 修订历史记录
  5. 5 Pin Configuration and Functions
    1.     Pin Functions
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
      1. 7.1.1 Modulator
      2. 7.1.2 Demodulator
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 Isolation Amplifier
    4. 7.4 Device Functional Modes
  8. 8 Application and Implementation
    1. 8.1 Application Information
      1. 8.1.1 Carrier Frequency Considerations
      2. 8.1.2 Isolation Mode Voltage Induced Errors
      3. 8.1.3 High IMV dV/dt Errors
      4. 8.1.4 High Voltage Testing
    2. 8.2 Typical Applications
      1. 8.2.1 Output Filters
        1. 8.2.1.1 Design Requirements
        2. 8.2.1.2 Detailed Design Procedure
        3. 8.2.1.3 Application Curves
      2. 8.2.2 Battery Monitor
      3. 8.2.3 Programmable Gain Amplifier
      4. 8.2.4 Thermocouple Amplifier
      5. 8.2.5 Isolated 4-mA to 20-mA Instrument Loop
      6. 8.2.6 Single-Supply Operation of the ISO124 Isolation Amplifier
      7. 8.2.7 Input-Side Powered ISO Amplifier
      8. 8.2.8 Powered ISO Amplifier With Three-Port Isolation
  9. 9 Power Supply Recommendations
    1. 9.1 Signal and Supply Connections
  10. 10Layout
    1. 10.1 Layout Guidelines
    2. 10.2 Layout Example
  11. 11器件和文档支持
    1. 11.1 文档支持
      1. 11.1.1 相关文档
    2. 11.2 接收文档更新通知
    3. 11.3 社区资源
    4. 11.4 商标
    5. 11.5 静电放电警告
    6. 11.6 术语表
  12. 12机械、封装和可订购信息

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • NVF|8
  • DVA|8
散热焊盘机械数据 (封装 | 引脚)
订购信息

6.6 Typical Characteristics

at TA = +25°C, and VS = ±15 V (unless otherwise noted)
ISO124 graph_1_sbos074.gif
f = 2 kHz

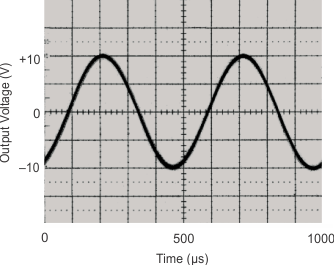

Figure 1. Sine Response
ISO124 graph_3_sbos074.gif

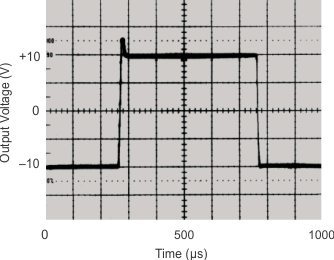

Figure 3. Step Response
ISO124 graph_5_sbos074.gif

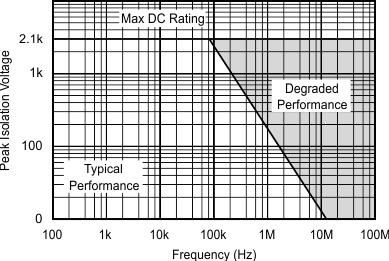

Figure 5. Isolation Voltage vs Frequency
ISO124 graph_7_sbos074.gif

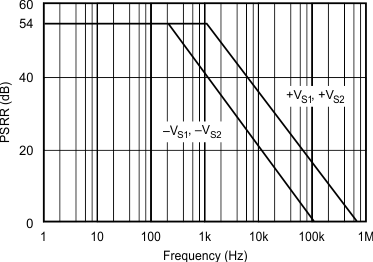

Figure 7. PSRR vs Frequency
ISO124 graph_9_sbos074.gif
NOTE: Shaded area shows aliasing frequencies that cannot be removed by a low-pass filter at the output.
Figure 9. Signal Response to Inputs Greater than 250 kHz
ISO124 graph_2_sbos074.gif
f = 20 kHz

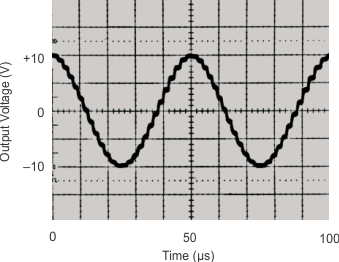

Figure 2. Sine Response
ISO124 graph_4_sbos074.gif

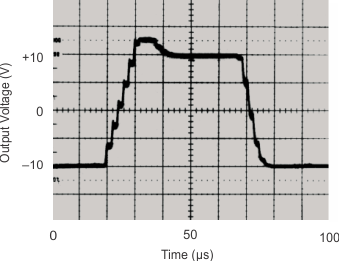

Figure 4. Step Response
ISO124 graph_6_sbos074.gif

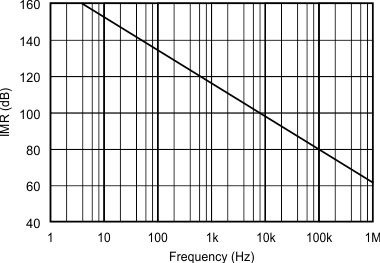

Figure 6. IMR vs Frequency
ISO124 graph_8_sbos074.gif

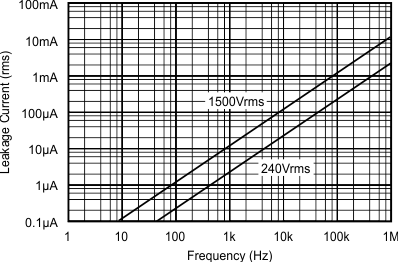

Figure 8. Isolation Leakage Current vs Frequency
