5.8 Typical Performance Curves
At TA = 25°C, VS = ±15 V, G = 0.1, RL = 10 kΩ connected to ground and Ref pin connected to ground, unless otherwise noted.

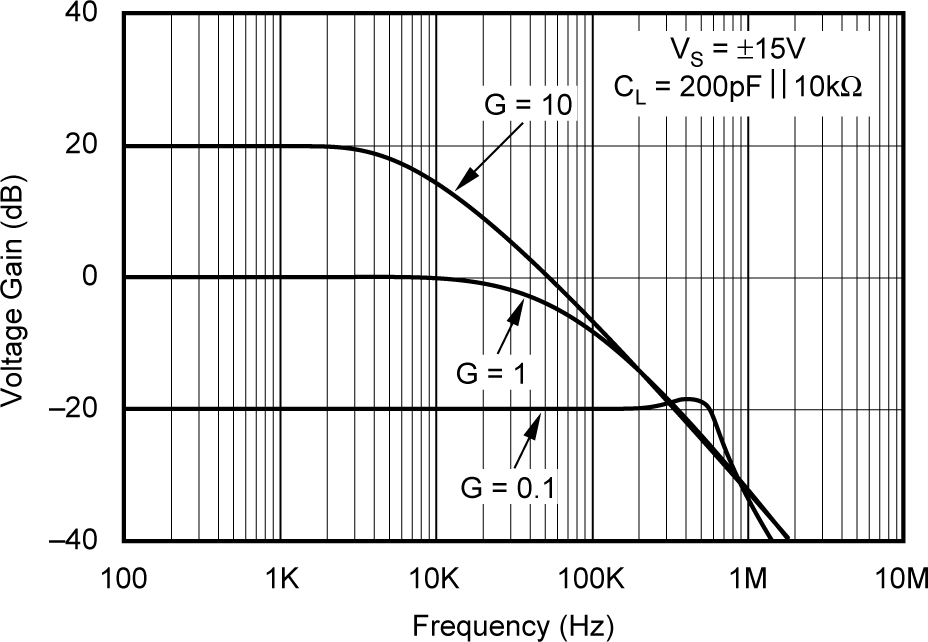

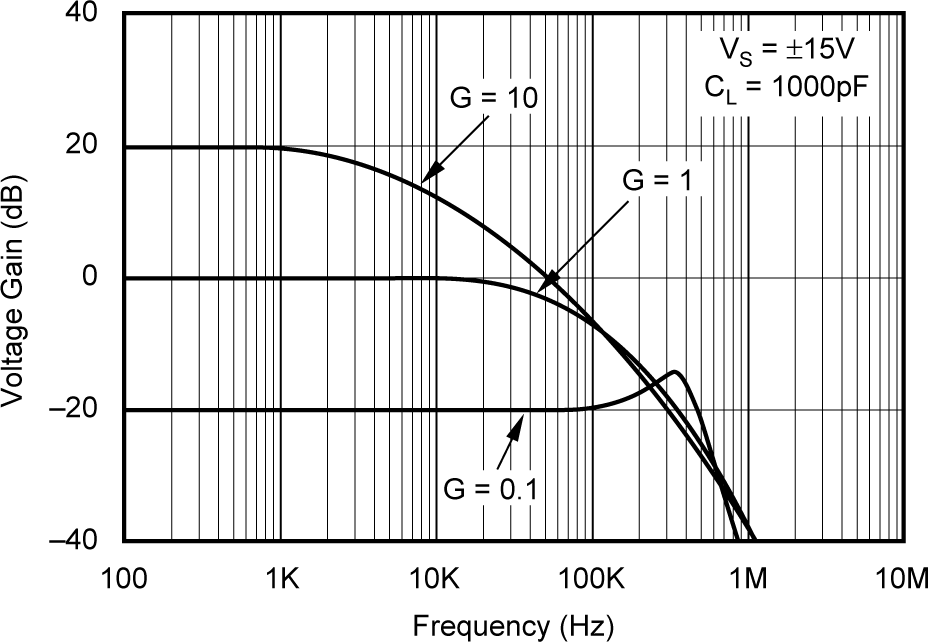

Figure 5-1 Gain vs Frequency
Figure 5-3 Common-mode Rejection vs
Frequency

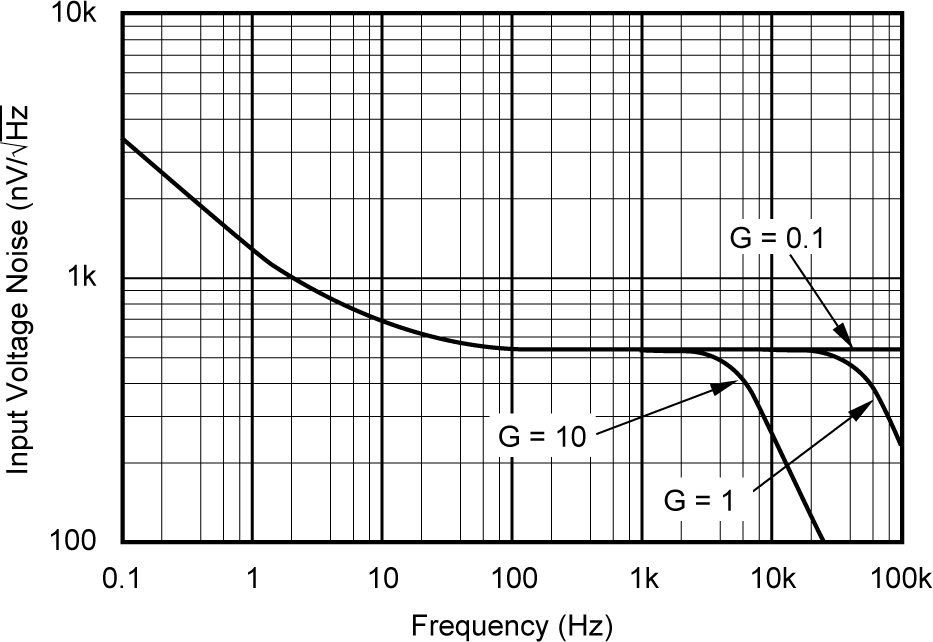

Figure 5-5 Input Voltage Noise
Density
Figure 5-7 Quiescent Current and
Short-circuit Current vs Temperature

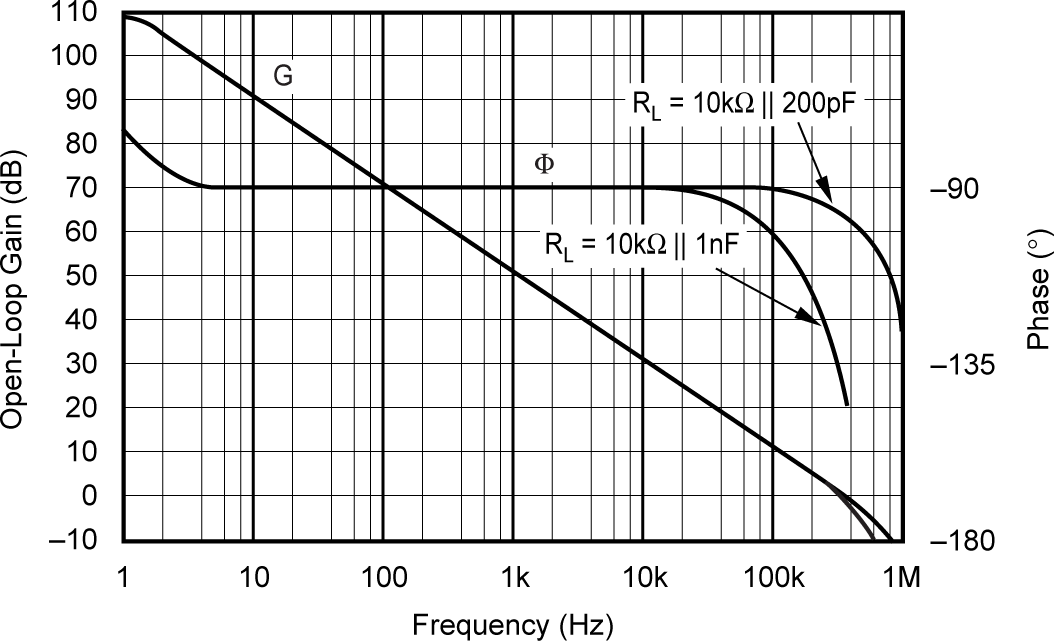

Figure 5-9 Gain and Phase vs
Frequency Op Amp A1 and A2

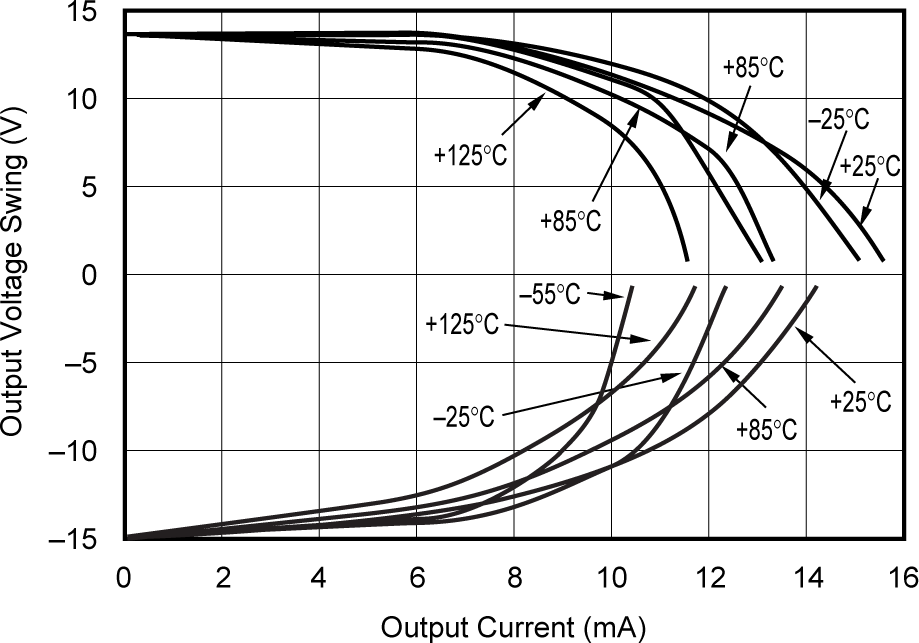

Figure 5-11 Maximum Output Voltage
Swing vs Output Current

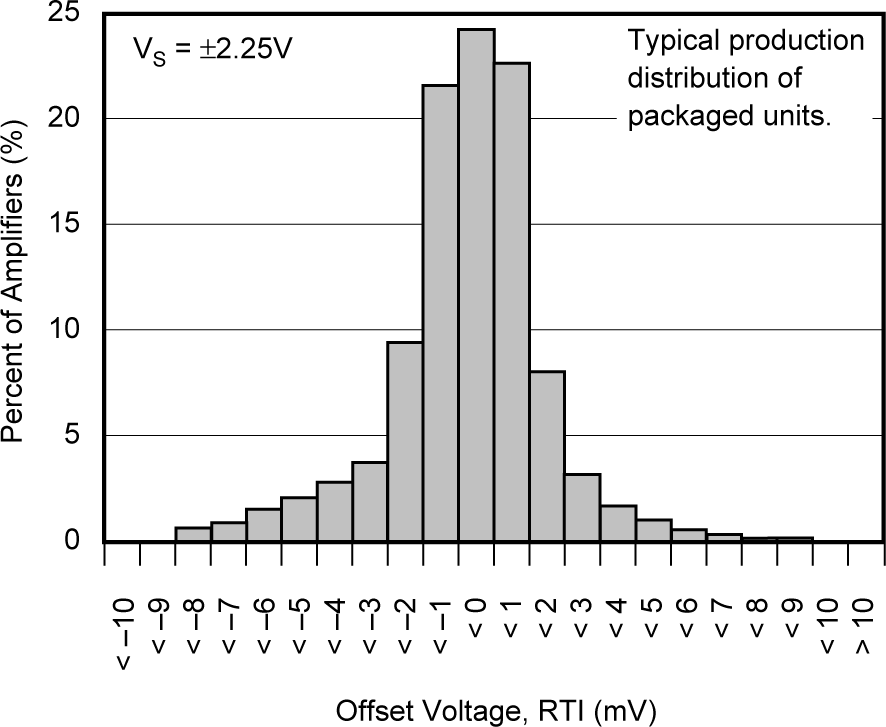

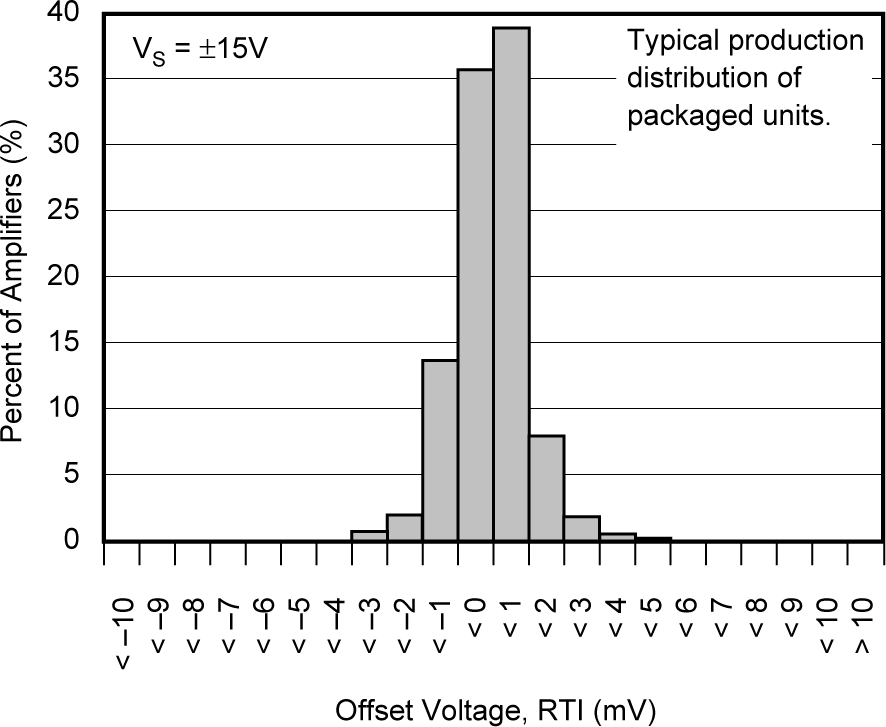

Figure 5-13 Offset Voltage Production
Distribution

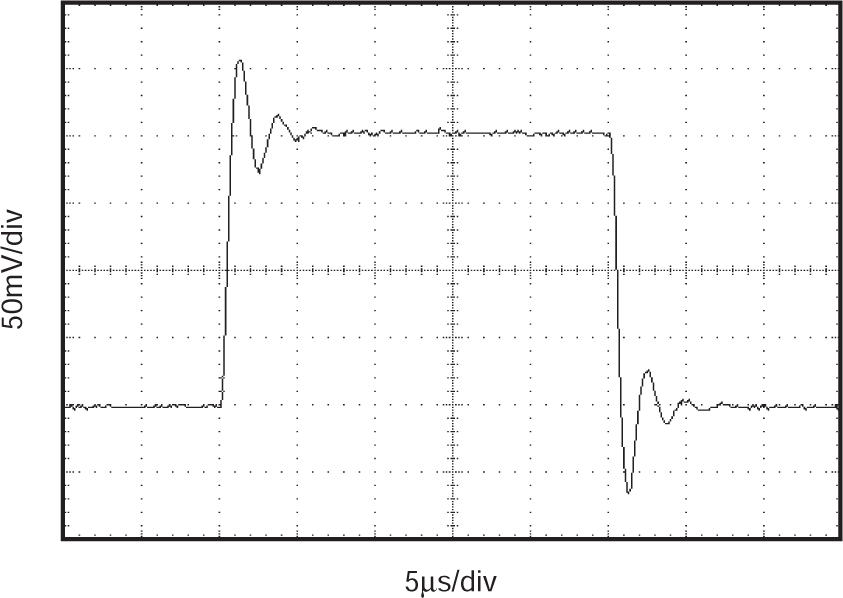

Figure 5-15 Small-signal Step Response
(G = 0.1, RL = 10 kΩ, CL = 200 pF)

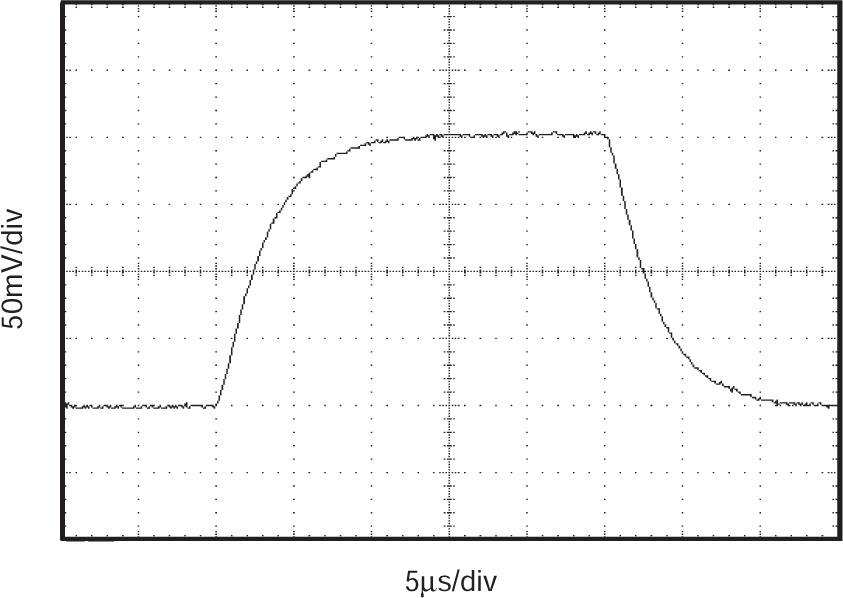

Figure 5-17 Small-signal Step Response
(G = 1, CL = 1000 pF)
Figure 5-2 Gain vs Frequency

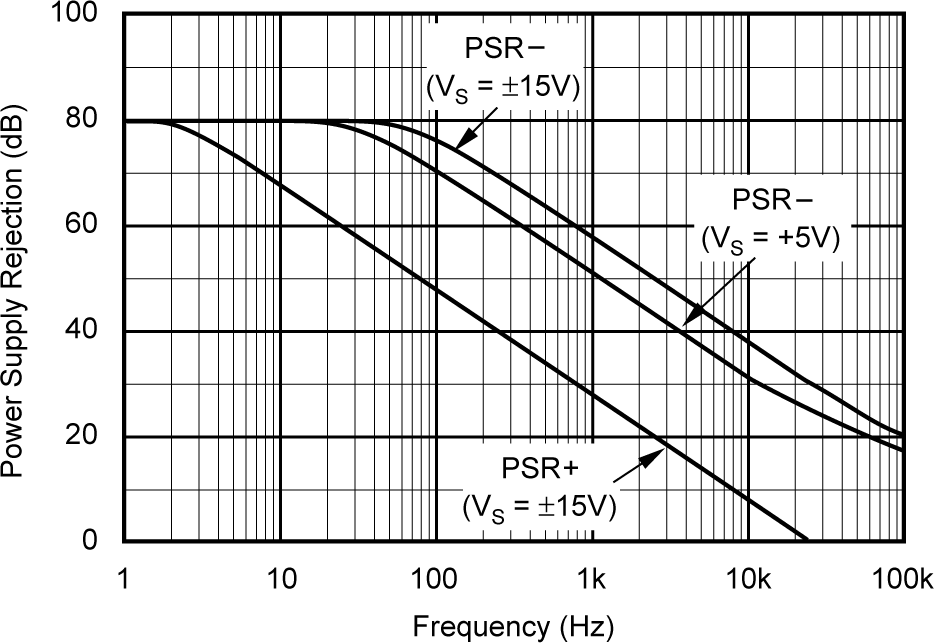

Figure 5-4 Power Supply Rejection vs
Frequency
Figure 5-6 0.1-Hz to 10-Hz Voltage
Noise (Rti)
Figure 5-8 Slew Rate vs
Temperature
Figure 5-10 Settling Time vs Load
Capacitance
Figure 5-12 Offset Voltage Production
Distribution
Figure 5-14 Offset Voltage Drift
Production Distribution

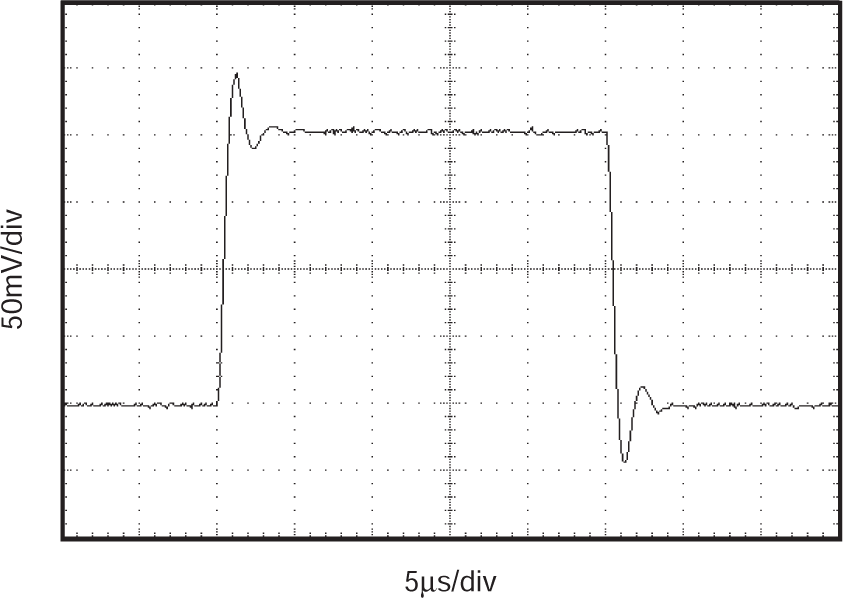

Figure 5-16 Small-signal Step Response
(G = 0.1, CL = 1000 pF)
Figure 5-18 Large-signal Step Response
(G = 1, RL = 10 kΩ, CL = 200pF)
