6.7 Typical Characteristics
Figure 1. TLP I-V Curve, I/O Pin to GND (tp = 100 ns)

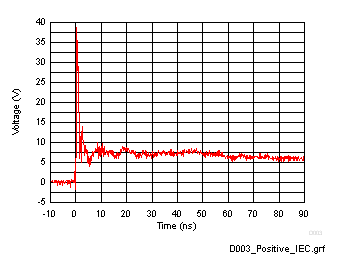

Figure 3. 8-kV IEC 61000-4-2 Clamping Voltage, I/O pin to GND
Figure 5. Surge Curve (IEC 61000-4-5, tp = 8/20 µs), I/O Pin to GND
Figure 7. Leakage Current at 3.6 V Bias Voltage Across Temperature, I/O Pin to GND

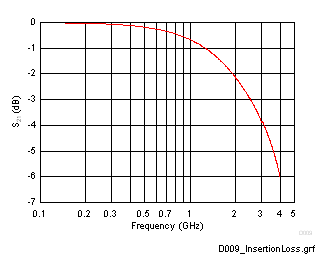

Figure 9. Insertion Loss Vs. Frequency
Figure 2. TLP I/V Curve, GND to I/O Pin (tp = 100 ns)

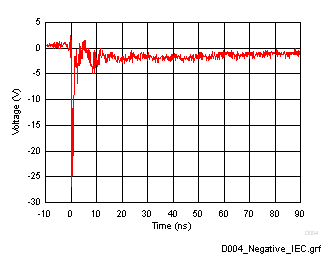

Figure 4. 8-kV IEC 61000-4-2 Clamping Voltage, GND to I/O Pin
Figure 6. DC IV-Curve, I/O Pin to GND
Figure 8. Capacitance Vs. Bias Voltage at Different Temperatures (°C)
