9.1 Power-Up Requirements and PDB Pin

The power supply ramp should be faster than 1.5 ms with a monotonic rise. A large capacitor on the PDB pin is needed to ensure PDB arrives after all the supply pins have settled to the recommended operating voltage. When PDB pin is pulled up to VDDIO, a 10-kΩ pull-up and a >10-μF capacitor to GND are required to delay the PDB input signal rise. All inputs must not be driven until all power supplies have reached steady state.

The recommended power up sequence is as follows:

  • VDD18
  • VDD11
  • Wait until all supplies have settled
  • Activate PDB
  • Apply OpenLDI input

After power up write the following to the device:

Reg0x40=0x10 // select OLDI register Reg0x41=0x49 // force PLL controller in PPM reset state Reg0x42=0x16 Reg0x41=0x47 // force PLL LOCK Low Reg0x42=0x20 Reg0x42=0xA0 // reset PLL divider Reg0x42=0x20 Reg0x42=0x00 // release PLL LOCK control Reg0x41=0x49 // release PLL state control Reg0x42=0x00

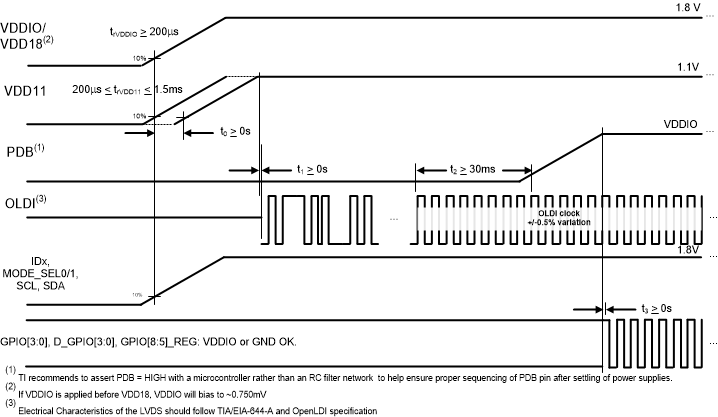

DS90UB947-Q1 947_power_sequence.gifFigure 42. Recommended Power Sequencing
