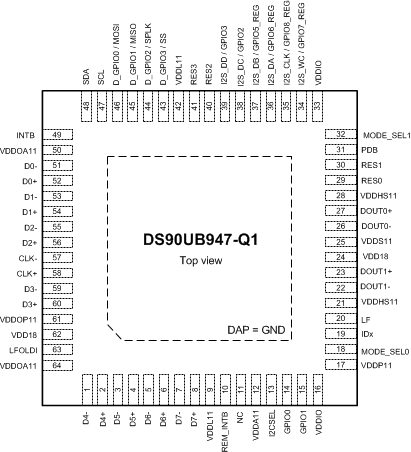

5 Pin Configuration and Functions

RGC Package
64-Pin VQFN
Top View
DS90UB947-Q1 UB947B_Final_Pinout.gif

Pin Functions

PIN I/O, TYPE DESCRIPTION
NAME NO.
LVDS INPUT PINS
D7-
D6-
D5-
D4-
D3-
D2-
D1-
D0-		 7
5
3
1
59
55
53
51		 I, LVDS Inverting LVDS Data Inputs
Each pair requires external 100-Ω differential termination for standard LVDS levels
D7+
D6+
D5+
D4+
D3+
D2+
D1+
D0+		 8
6
4
2
60
56
54
52		 I, LVDS True LVDS Data Inputs
Each pair requires external 100-Ω differential termination for standard LVDS levels
CLK- 57 I, LVDS Inverting LVDS Clock Input
Each pair requires external 100-Ω differential termination for standard LVDS levels
CLK+ 58 I, LVDS True LVDS Clock Input
Each pair requires external 100-Ω differential termination for standard LVDS levels
LFOLDI 63 Analog OpenLDI Loop Filter
Connect to a 10-nF capacitor to GND
FPD-LINK III SERIAL PINS
DOUT0- 26 I/O FPD-Link III Inverting Output 0
The output must be coupled with a 33-nF capacitor
DOUT0+ 27 I/O FPD-Link III True Output 0
The output must be coupled with a 33-nF capacitor
DOUT1- 22 I/O FPD-Link III Inverting Output 1
The output must be coupled with a 33-nF capacitor
DOUT1+ 23 I/O FPD-Link III True Output 1
The output must be coupled with a 33-nF capacitor
LF 20 Analog FPD-Link III Loop Filter
Connect to a 10-nF capacitor to GND
CONTROL PINS
SDA 48 IO, Open-Drain I2C Data Input / Output Interface
Open-drain. Must have an external pullup resistor to 1.8 V or 3.3 V. DO NOT FLOAT.
Recommended pullup: 4.7 kΩ.
SCL 47 IO, Open-Drain I2C Clock Input / Output Interface
Open-drain. Must have an external pullup resistor to 1.8 V or 3.3 V. DO NOT FLOAT.
Recommended pullup: 4.7 kΩ.
I2CSEL 13 I, LVCMOS I2C Voltage Level Strap Option
Tie to VDDIO with a 10-kΩ resistor for 1.8-V I2C operation.
Leave floating for 3.3-V I2C operation.
This pin is read as an input at power up.
IDx 19 I, Analog I2C Address Select
External pullup to VDD18 is required under all conditions. DO NOT FLOAT.
Connect to external pullup and pulldown resistors to create a voltage divider.
MODE_SEL0 18 Analog Mode Select 0 Input. Refer to Table 7.
MODE_SEL1 32 Analog Mode Select 1 Input. Refer to Table 8.
PDB 31 I, LVCMOS Power-Down Mode Input Pin
INTB 49 O, Open-Drain Remote interrupt
INTB = H, Normal Operation
INTB = L, Interrupt Request
Recommended pullup: 4.7 kΩ to VDDIO. DO NOT FLOAT.
REM_INTB 10 O, LVCMOS LVCMOS Output
REM_INTB will directly mirror the status of the INTB_IN signal from the remote device. No separate serializer register read will be required to reset and change the status of this pin.
SPI PINS
MOSI 46 IO, LVCMOS SPI Master Output Slave Input
Only available in Dual Link Mode. Shared with D_GPIO0
MISO 45 IO, LVCMOS SPI Master Input Slave Output
Only available in Dual Link Mode. Shared with D_GPIO1
SPLK 44 IO, LVCMOS SPI Clock
Only available in Dual Link Mode. Shared with D_GPIO2
SS 43 IO, LVCMOS SPI Slave Select
Only available in Dual Link Mode. Shared with D_GPIO3
HIGH-SPEED GPIO PINS
D_GPIO0 46 IO, LVCMOS High-Speed GPIO0
Only available in Dual Link Mode. Shared with MOSI
D_GPIO1 45 IO, LVCMOS High-Speed GPIO1
Only available in Dual Link Mode. Shared with MISO
D_GPIO2 44 IO, LVCMOS High-Speed GPIO2
Only available in Dual Link Mode. Shared with SPLK
D_GPIO3 43 IO, LVCMOS High-Speed GPIO3
Only available in Dual Link Mode. Shared with SS
GPIO PINS
GPIO0 14 IO, LVCMOS General-Purpose Input/Output 0
GPIO1 15 IO, LVCMOS General-Purpose Input/Output 1
GPIO2 38 IO, LVCMOS General-Purpose Input/Output 2
Shared with I2S_DC
GPIO3 39 IO, LVCMOS General-Purpose Input/Output 3
Shared with I2S_DD
REGISTER-ONLY GPIO PINS
GPIO5_REG 37 IO, LVCMOS General-Purpose Input/Output 5
Local register control only. Shared with I2S_DB
GPIO6_REG 36 IO, LVCMOS General-Purpose Input/Output 6
Local register control only. Shared with I2S_DA
GPIO7_REG 34 IO, LVCMOS General-Purpose Input/Output 7
Local register control only. Shared with I2S_WC
GPIO8_REG 35 IO, LVCMOS General-Purpose Input/Output 8
Local register control only. Shared with I2S_CLK
SLAVE MODE LOCAL I2S CHANNEL PINS
I2S_WC 34 I, LVCMOS Slave Mode I2S Word Clock Input. Shared with GPIO7_REG
I2S_CLK 35 I, LVCMOS Slave Mode I2S Clock Input. Shared with GPIO8_REG
I2S_DA 36 I, LVCMOS Slave Mode I2S Data Input. Shared with GPIO6_REG
I2S_DB 37 I, LVCMOS Slave Mode I2S Data Input. Shared with GPIO5_REG
I2S_DC 38 I, LVCMOS Slave Mode I2S Data Input. Shared with GPIO2
I2S_DD 39 I, LVCMOS Slave Mode I2S Data Input. Shared with GPIO3
POWER AND GROUND PINS
VDD18 24
62		 Power 1.8-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDOA11 50
64		 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDA11 12 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDHS11 21
28		 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDL11 9
42		 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDOP11 61 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDP11 17 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDS11 25 Power 1.1-V (±5%) supply. Refer to Figure 35 or Figure 36.
VDDIO 16
33		 Power 1.8-V (±5%) LVCMOS I/O Power. Refer to Figure 35 or Figure 36.
GND Thermal Pad Ground.
OTHER PINS
RES0
RES2
RES3		 29
40
41		 Reserved. Tie to GND.
RES1 30 Reserved. Connect with 50Ω to GND.
NC 11 No connect. Leave floating Do not connect to VDD or GND.
