9.2.3 Application Curves

DS125BR800 30198769.png
DS125BR800 settings: EQ[1:0] = 0, F = 0x02, DEM[1:0] = 0, 1
Figure 12. TL = 10 inch 5–mil FR4 trace, 5 Gbps
DS125BR800 30198758.png
DS125BR800 settings: EQ[1:0] = 0, R = 0x01, DEM[1:0] = 0, 1
Figure 14. TL = 10 inch 5–mil FR4 trace, 12 Gbps
DS125BR800 30198761.png
DS125BR800 settings: EQ[1:0] = 0, 1 = 0x03, DEM[1:0] = 0, 1
Figure 16. TL = 20 inch 5–mil FR4 trace, 8 Gbps
DS125BR800 30198766.png
DS125BR800 settings: EQ[1:0] = R, 0 = 0x07, DEM[1:0] = 0, 1
Figure 18. TL = 30 inch 5–mil FR4 trace, 5 Gbps

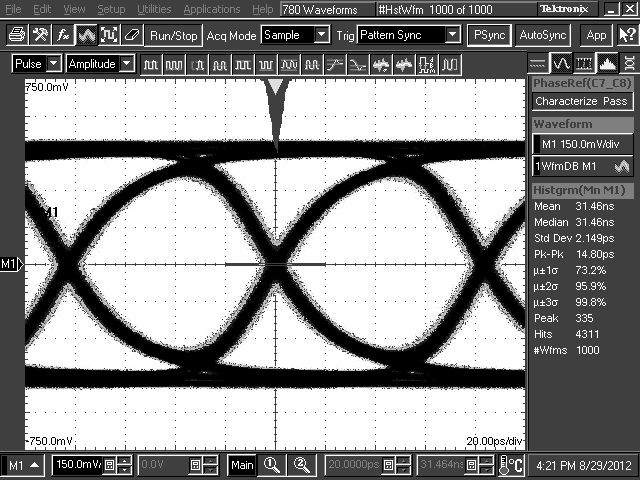

DS125BR800 30198768.png
DS125BR800 settings: EQ[1:0] = R, 0 = 0x07, DEM[1:0] = 0, 1
Figure 20. TL = 30 inch 5–mil FR4 trace, 12 Gbps
DS125BR800 30198757.png
DS125BR800 settings: EQ[1:0] = R, 1 = 0x0F, DEM[1:0] = 0, 1
Figure 22. TL1 = 8-meter 30-AWG 100 Ω Twin-axial Cable, 12 Gbps
DS125BR800 30198763.png
DS125BR800 settings: EQ[1:0] = R, 1 = 0x0F, DEM[1:0] = R, 0
Figure 24. TL1 = 20 inch 5–mil FR4 trace, TL2 = 10 inch 5–mil FR4 trace, 8 Gbps
DS125BR800 30198759.png
DS125BR800 settings: EQ[1:0] = 0, F = 0x02, DEM[1:0] = 0, 1
Figure 13. TL = 10 inch 5–mil FR4 trace, 8 Gbps
DS125BR800 30198760.png
DS125BR800 settings: EQ[1:0] = 0, 1 = 0x03, DEM[1:0] = 0, 1
Figure 15. TL = 20 inch 5–mil FR4 trace, 5 Gbps

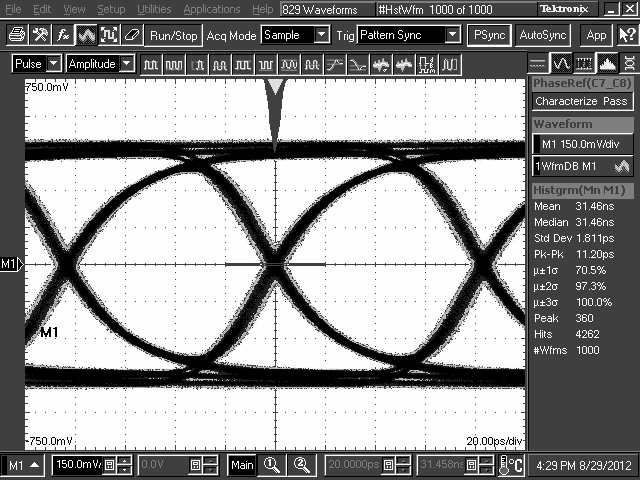

DS125BR800 30198765.png
DS125BR800 settings: EQ[1:0] = 0, 1 = 0x03, DEM[1:0] = 0, 1
Figure 17. TL = 20 inch 5–mil FR4 trace, 12 Gbps

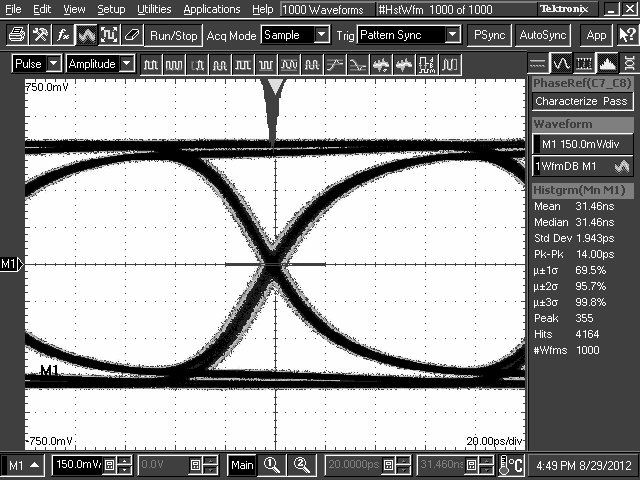

DS125BR800 30198767.png
DS125BR800 settings: EQ[1:0] = R, 0 = 0x07, DEM[1:0] = 0, 1
Figure 19. TL = 30 inch 5–mil FR4 trace, 8 Gbps

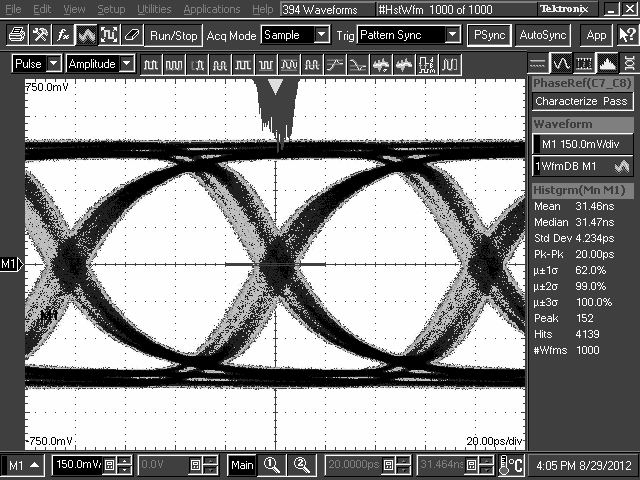

DS125BR800 30198756.png
DS125BR800 settings: EQ[1:0] = R, 0 = 0x07, DEM[1:0] = 0, 1
Figure 21. TL1 = 5-meter 30-AWG 100 Ω Twin-axial Cable, 12 Gbps
DS125BR800 30198762.png
DS125BR800 settings: EQ[1:0] = 0, 1 = 0x03, DEM[1:0] = R, 0
Figure 23. TL1 = 20 inch 5–mil FR4 trace, TL2 = 10 inch 5–mil FR4 trace, 5 Gbps

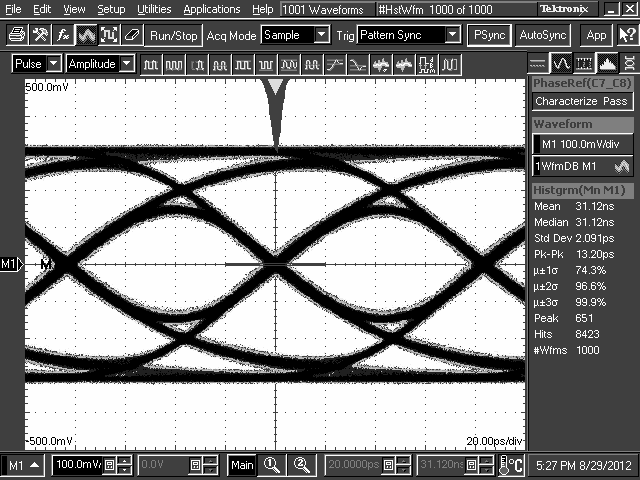

DS125BR800 30198764.png
DS125BR800 settings: EQ[1:0] = R, 1 = 0x0F, DEM[1:0] = R, 0
Figure 25. TL1 = 20 inch 5–mil FR4 trace, TL2 = 10 inch 5–mil FR4 trace, 12 Gbps
