ZHCSQT3K October   2009  – January 2022 DRV8824

PRODUCTION DATA

  1. 1 特性
  2. 2 应用
  3. 3 说明
  4. 4 Revision History
  5. 5 Pin Configuration and Functions
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Timing Requirements
    7. 6.7 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1 PWM Motor Drivers
      2. 7.3.2 Current Regulation
      3. 7.3.3 Decay Mode
      4. 7.3.4 Blanking Time
      5. 7.3.5 Microstepping Indexer
      6. 7.3.6 nRESET, nENBL and nSLEEP Operation
      7. 7.3.7 Protection Circuits
        1. 7.3.7.1 Overcurrent Protection (OCP)
        2. 7.3.7.2 Thermal Shutdown (TSD)
        3. 7.3.7.3 Undervoltage Lockout (UVLO)
    4. 7.4 Device Functional Modes
      1. 7.4.1 STEP/DIR Interface
      2. 7.4.2 Microstepping
  8. 8 Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
        1. 8.2.2.1 Stepper Motor Speed
        2. 8.2.2.2 Current Regulation
        3. 8.2.2.3 Decay Modes
      3. 8.2.3 Application Curves
        1.       Power Supply Recommendations
          1. 9.1 Bulk Capacitance
          2. 9.2 Power Supply and Logic Sequencing
  9. 9 Layout
    1. 9.1 Layout Guidelines
    2. 9.2 Layout Example
    3. 9.3 Thermal Considerations
    4. 9.4 Power Dissipation
    5. 9.5 Heatsinking
  10. 10Device and Documentation Support
    1. 10.1 Community Resources
    2. 10.2 Trademarks
  11. 11Mechanical, Packaging, and Orderable Information

封装选项

请参考 PDF 数据表获取器件具体的封装图。

机械数据 (封装 | 引脚)
  • RHD|28
  • PWP|28
散热焊盘机械数据 (封装 | 引脚)
订购信息

6.6 Timing Requirements

MINMAXUNIT
1ƒSTEPStep frequency175kHz
2tWH(STEP)Pulse duration, STEP high2.8μs
3tWL(STEP)Pulse duration, STEP low2.8μs
4tSU(STEP)Setup time, command before STEP rising200ns
5tH(STEP)Hold time, command after STEP rising200ns
6tENBLEnable time, nENBL active to STEP200ns
7tWAKEWakeup time, nSLEEP inactive high to STEP input accepted1ms

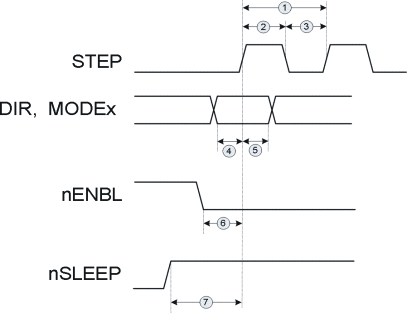

GUID-B11E2346-1494-4142-AEFB-4B08CC73171A-low.gifFigure 6-1 Timing Diagram
