6.7 Timing Requirements

Device electrical characteristics are over Section 6.4 unless otherwise noted.

			MIN	NOM	MAX	UNIT
LPSDR
t_r	Rise slew rate⁽¹⁾	(30% to 80%) × VDD, see Figure 6-3	1		3	V/ns
t_ƒ	Fall slew rate⁽¹⁾	(70% to 20%) × VDD, see Figure 6-3	1		3	V/ns
t_r	Rise slew rate⁽²⁾	(20% to 80%) × VDD, see Figure 6-3	0.25			V/ns
t_ƒ	Fall slew rate⁽²⁾	(80% to 20%) × VDD, see Figure 6-3	0.25			V/ns
t_c	Cycle time LS_CLK,	See Figure 6-2	7.7	8.3		ns
t_W(H)	Pulse duration LS_CLK high	50% to 50% reference points, see Figure 6-2	3.1			ns
t_W(L)	Pulse duration LS_CLK low	50% to 50% reference points, see Figure 6-2	3.1			ns
t_su	Setup time	LS_WDATA valid before LS_CLK ↑, see Figure 6-2	1.5			ns
t_h	Hold time	LS_WDATA valid after LS_CLK ↑, see Figure 6-2	1.5			ns
t_WINDOW	Window time⁽¹⁾⁽⁴⁾	Setup time + hold time, see Figure 6-2	3			ns
t_DERATING	Window time derating⁽¹⁾⁽⁴⁾	For each 0.25-V/ns reduction in slew rate below 1 V/ns, see Figure 6-5		0.35		ns

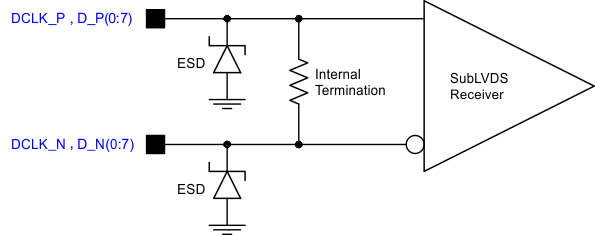

SubLVDS
t_r	Rise slew rate	20% to 80% reference points, see Figure 6-4	0.7	1		V/ns
t_ƒ	Fall slew rate	80% to 20% reference points, see Figure 6-4	0.7	1		V/ns

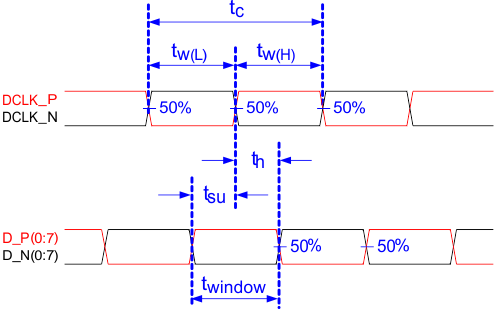

t_c	Cycle time DCLK,	See Figure 6-6	1.79	1.85		ns
t_W(H)	Pulse duration DCLK high	50% to 50% reference points, see Figure 6-6	0.79			ns
t_W(L)	Pulse duration DCLK low	50% to 50% reference points, see Figure 6-6	0.79			ns
t_su	Setup time	D(0:3) valid before DCLK ↑ or DCLK ↓, see Figure 6-6
t_h	Hold time	D(0:3) valid after DCLK ↑ or DCLK ↓, see Figure 6-6
t_WINDOW	Window time	Setup time + hold time, see Figure 6-6 and Figure 6-7			0.3	ns
t_{LVDS-ENABLE+REFGEN}	Power-up receiver⁽³⁾				2000	ns

(1) Specification is for LS_CLK and LS_WDATA pins. Refer to LPSDR input rise slew rate and fall slew rate in Figure 6-3.

(2) Specification is for DMD_DEN_ARSTZ pin. Refer to LPSDR input rise and fall slew rate in Figure 6-3.

(3) Specification is for SubLVDS receiver time only and does not take into account commanding and latency after commanding.

(4) Window time derating example: 0.5-V/ns slew rate increases the window time by 0.7 ns, from 3 ns to 3.7 ns.

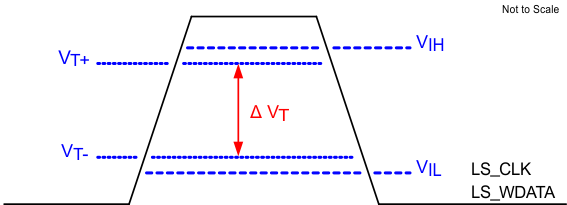

Low-speed interface is LPSDR and adheres to the Section 6.6 and AC/DC Operating Conditions table in JEDEC Standard No. 209B, Low Power Double Data Rate (LPDDR)JESD209B.

Figure 6-2 LPSDR Switching Parameters
