6.9 System Mounting Interface Loads

PARAMETER MIN NOM MAX UNIT
Maximum system mounting interface load to be applied to the: Electrical interface area, see Figure 6-14 125 N
Clamping and thermal interface area, see Figure 6-14 67

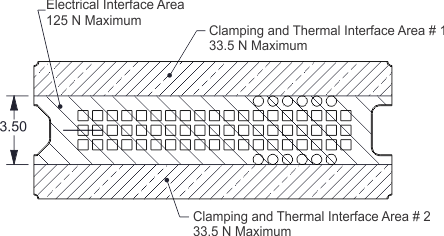

GUID-9AD129F8-C216-4FD3-ACCA-229E6CB1E870-low.gif Figure 6-14 System Interface Loads
