6.9 System Mounting Interface Loads

PARAMETER MIN NOM MAX UNIT
Maximum system mounting interface load to be applied to the:
  • Thermal interface area (1)
 45 N
  • Clamping and electrical interface area (1)
 100 N
(1) Uniformly distributed within area shown in Figure 6-14.

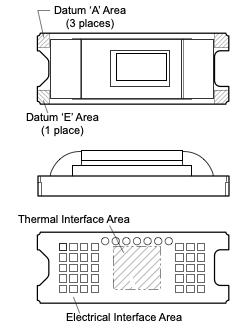

GUID-20220108-SS0I-3X4G-5P0X-V2SR1JCPMP5D-low.gif Figure 6-14 System Interface Loads
