6.10 Micromirror Array Physical Characteristics

PARAMETERVALUEUNIT
Number of active columnsSee Figure 6-15960micromirrors
Number of active rowsSee Figure 6-15540micromirrors
Micromirror (pixel) pitchSee Figure 6-165.4µm
Micromirror active array widthMicromirror pitch × number of active columns; see Figure 6-155.184mm
Micromirror active array heightMicromirror pitch × number of active rows; see Figure 6-152.916mm
Micromirror active borderPond of micromirror (POM)(1)20micromirrors/side
(1) The structure and qualities of the border around the active array include a band of partially functional micromirrors called the POM. These micromirrors are structurally or electrically prevented from tilting toward the bright or ON state, but still require an electrical bias to tilt toward OFF.
GUID-5D62B46F-18AF-469B-A303-3CFA0953C212-low.gif Figure 6-15 Micromirror Array Physical Characteristics

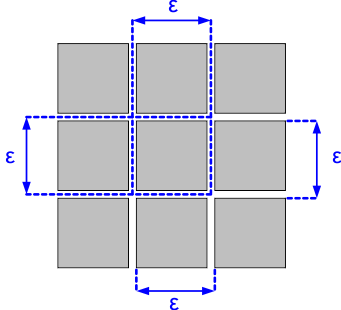

GUID-A6D235F3-4CFD-4C2F-B50B-8494A8C939CE-low.gifFigure 6-16 Mirror (Pixel) Pitch
