5 Pin Configuration and Functions

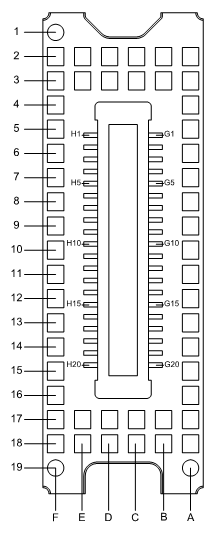

GUID-7936A0D5-77B9-4CA4-8C08-6F52610A1D41-low.gif Figure 5-1 FQJ Package. 40-Pin CLGA. Bottom View.
PIN TYPE SIGNAL DATA RATE DESCRIPTION PACKAGE NET TRACE LENGTH(2) (mm)
NAME NO.
DATA INPUTS, SUBLVDS INTERFACE
D_N(0) G4 I SubLVDS Double Input data pair 0, negative 7.03
D_P(0) G3 I SubLVDS Double Input data pair 0, positive 7.03
D_N(1) G8 I SubLVDS Double Input data pair 1, negative 7.03
D_P(1) G7 I SubLVDS Double Input data pair 1, positive 7.03
D_N(2) H5 I SubLVDS Double Input data pair 2, negative 7.02
D_P(2) H6 I SubLVDS Double Input data pair 2, positive 7.02
D_N(3) H1 I SubLVDS Double Input data pair 3, negative 7.00
D_P(3) H2 I SubLVDS Double Input data pair 3, positive 7.00
DCLK_N H9 I SubLVDS Double Clock, negative 7.03
DCLK_P H10 I SubLVDS Double Clock, positive 7.03
CONTROL INPUTS, LPSDR INTERFACE
DMD_DEN_ARSTZ G12 I LPSDR (1) Active low asynchronous DMD reset signal. A low signal places the DMD in reset. A high signal releases the DMD from reset and places it in active mode. 5.72
LS_CLK G19 I LPSDR Single Clock for low-speed interface 3.54
LS_WDATA G18 I LPSDR Single Write data for low-speed interface 3.54
LS_RDATA G11 O LPSDR Single Read data for low-speed interface 8.11
POWER
VBIAS (3) H17 Power Supply voltage for micromirror positive bias level
VOFFSET (3) H13 Power Supply voltage for high voltage CMOS (HVCMOS) core logic.
Includes: Supply voltage for stepped high level at micromirror address electrodes and supply voltage for offset level at micromirrors.
VRESET (3) H18 Power Supply voltage for micromirror negative reset level
VDD(3) G20 Power Supply voltage for low voltage CMOS (LVCMOS) core logic. Includes supply voltage for LPSDR inputs and supply voltage for normal high level at micromirror address electrodes.
VDD H14 Power
VDD H15 Power
VDD H16 Power
VDD H19 Power
VDD H20 Power
VDDI (3) G1 Power Supply voltage for SubLVDS receivers
VDDI G2 Power
VDDI G5 Power
VDDI G6 Power
VSS(3) G9 Power Ground. Common return for all power.
VSS G10 Power
VSS G13 Power
VSS G14 Power
VSS G15 Power
VSS G16 Power
VSS G17 Power
VSS H3 Power
VSS H4 Power
VSS H7 Power
VSS H8 Power
VSS H11 Power
VSS H12 Power
RESERVED
No connect A2, A3, A4, A5, A6 A7, A8, A9, A10, A11, A12, A13, A14, A15, A16, A17, A18, A19 Reserved pins. For proper device operation, leave these pins unconnected.
No connect B2, B3, B17, B18 Reserved pins. For proper device operation, leave these pins unconnected.
No connect C2, C3, C17, C18 Reserved pins. For proper device operation, leave these pins unconnected.
No connect D2, D3, D17, D18 Reserved pins. For proper device operation, leave these pins unconnected.
No connect E2, E3, E17, E18 Reserved pins. For proper device operation, leave these pins unconnected.
No connect F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, F13, F14, F15, F16, F17, F18, F19 Reserved pins. For proper device operation, leave these pins unconnected.
(1) Low speed interface is LPSDR and adheres to the electrical characteristics and AC/DC operating conditions table in JEDEC Standard No. 209B, Low Power Double Data Rate (LPDDR) JESD209B.
(2) Net trace lengths inside the package:
Relative dielectric constant for the FQJ ceramic package is 9.8.
Propagation speed = 11.8 / sqrt(9.8) = 3.769 inches/ns.
Propagation delay = 0.265 ns/inch = 265 ps/inch = 10.43 ps/mm.
(3) The following power supplies are all required to operate the DMD: VSS, VDD, VDDI, VOFFSET, VBIAS, VRESET.
