6.10 Physical Characteristics of the Micromirror Array

VALUE UNIT
Number of active columns See Figure 6-15 854 micromirrors
Number of active rows See Figure 6-15 480 micromirrors
ε Micromirror (pixel) pitch See Figure 6-16 5.4 µm
Micromirror active array width Micromirror pitch × number of active columns; see Figure 6-15 4.6116 mm
Micromirror active array height Micromirror pitch × number of active rows; see Figure 6-15 2.592 mm
Micromirror active border Pond of micromirror (POM)(1) 20 micromirrors/side
(1) The structure and qualities of the border around the active array includes a band of partially functional micromirrors called the POM. These micromirrors are structurally and/or electrically prevented from tilting toward the bright or ON state, but still require an electrical bias to tilt toward OFF.

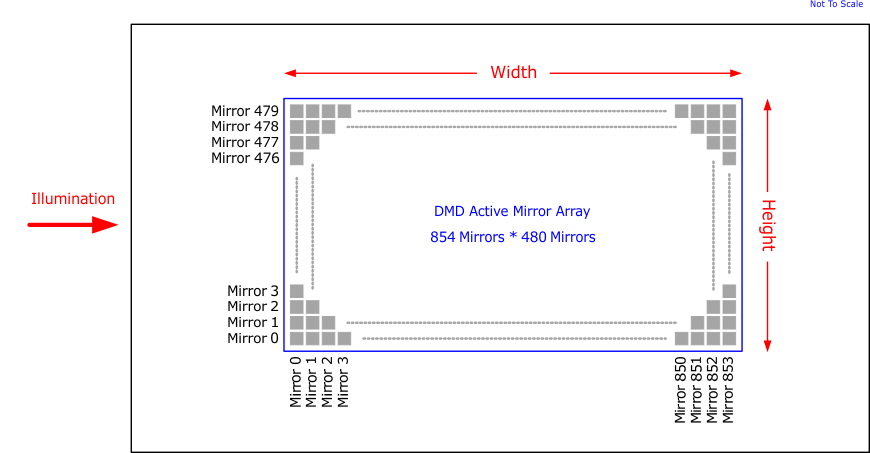

GUID-48A49734-2A30-4C56-BB96-34FA8DCA6BBE-low.gif Figure 6-15 Micromirror Array Physical Characteristics

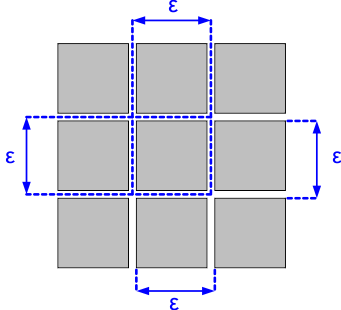

GUID-0D71C562-4A58-4442-9316-FD4908F65D4E-low.gif Figure 6-16 Mirror (Pixel) Pitch
