9.3.2 Interfacing to a Low-Jitter LDAC Source

When the processor is not able to provide a low-jitter source for the LDAC signal, an external low-jitter LDAC source can be used, as shown in Figure 68. The processor can take the LDAC signal as an interrupt and trigger the SPI frame synchronously.

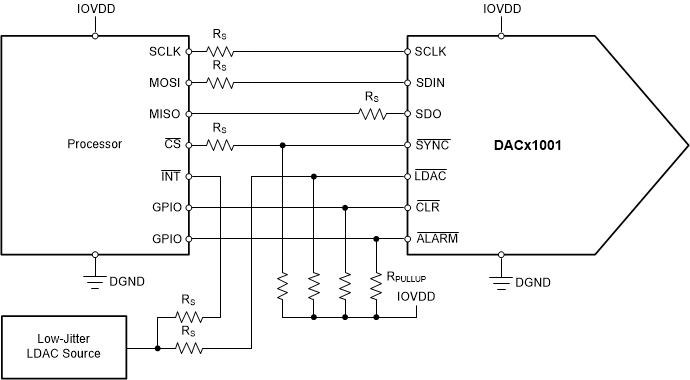

DAC11001A DAC91001 DAC81001 dac11001-intefacing-with-external-ldac-source.gifFigure 68. Interfacing to an External LDAC Source
