7.6 Typical Characteristics

at TA = 25°C, VCC = 15 V, VSS = –15 V, AVDD = 5 V, IOVDD = 1.8 V, gain resistors unconnected (gain = 1x), OPA827 used as output and reference amplifier, UP = unipolar, BP = bipolar, and temperature calibration disabled (unless otherwise noted)
DAC11001A DAC91001 DAC81001 D001_SLASEL0.gif

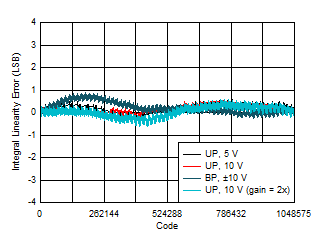

Figure 3. . Integral Linearity Error vs Digital Input Code
DAC11001A DAC91001 DAC81001 D003_SLASEL0.gif

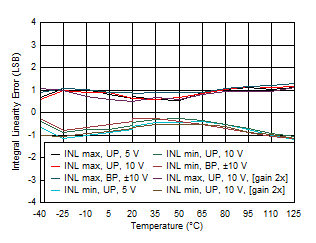

Figure 5. Integral Linearity Error vs Temperature

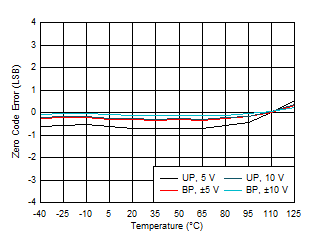

DAC11001A DAC91001 DAC81001 D005_SLASEL0.gif Figure 7. Zero Code Error vs Temperature

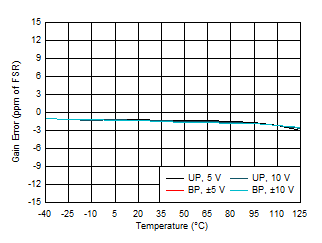

DAC11001A DAC91001 DAC81001 D009_SLASEL0.gif Figure 9. Gain Error vs Temperature
DAC11001A DAC91001 DAC81001 D011_SLASEL0.gif
Figure 11. Differential Linearity Error vs Supply Voltage
DAC11001A DAC91001 DAC81001 D013_SLASEL0.gif
Figure 13. Positive Full-Scale Error vs Supply Voltage
DAC11001A DAC91001 DAC81001 D016_SLASEL0.gif

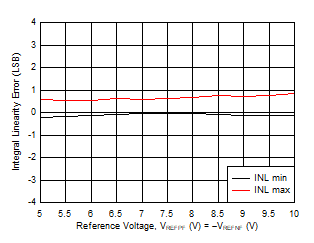

Figure 15. Integral Linearity Error vs Reference Voltage
DAC11001A DAC91001 DAC81001 D018A_SLASEL0.gif

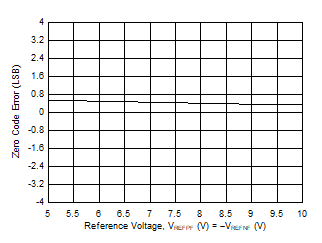

Figure 17. Zero Code Error vs Reference Voltage
DAC11001A DAC91001 DAC81001 D019_SLASEL0.gif
Figure 19. Positive Full-Scale Error vs Reference Voltage
DAC11001A DAC91001 DAC81001 D020A_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V
Figure 21. Supply Current (VCC and VSS)
vs Digital Input Code
DAC11001A DAC91001 DAC81001 D020C_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V
Figure 23. Supply Current (AVDD) vs Digital Input Code
DAC11001A DAC91001 DAC81001 D021B_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode

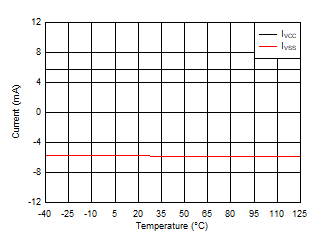

Figure 25. Supply Current (VCC and VSS)
vs Temperature
DAC11001A DAC91001 DAC81001 D021D_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 27. Supply Current (AVDD) vs Temperature
DAC11001A DAC91001 DAC81001 D023A_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 29. Supply Current (IOVDD)
vs Input Pin Logic Level
DAC11001A DAC91001 DAC81001 D024_SLASEL0.gif
VREFPF = 10 V, VREFNF = –10 V, DAC transition midcode – 1 to midcode

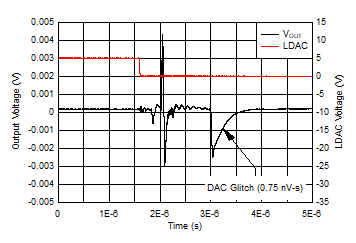

Figure 31. Glitch Impulse, Rising Edge, 1-LSB Step
DAC11001A DAC91001 DAC81001 D026_SLASEL0.gif
VREFPF = 10 V, VREFNF = –10 V

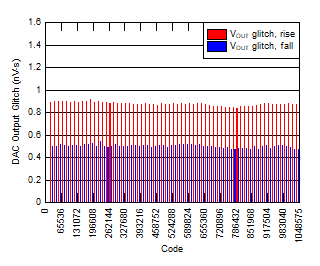

Figure 33. Segment Glitch Impulse, 1-LSB Step
DAC11001A DAC91001 DAC81001 D028_SLASEL0.gif
VREFPF = 5 V, VREFNF = 0 V
Figure 35. Segment Glitch Impulse, 1-LSB Step
DAC11001A DAC91001 DAC81001 D030_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V
Figure 37. Full-Scale Settling Time, Falling Edge
DAC11001A DAC91001 DAC81001 D032_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC transitions 100 codes around midscale

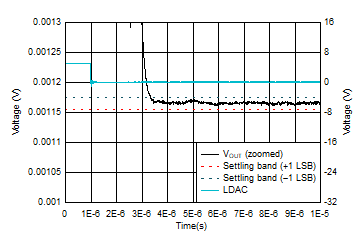

Figure 39. 100 Codes Settling Time, Falling Edge
DAC11001A DAC91001 DAC81001 D036_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, measured at DAC output
Figure 41. DAC Output Noise Spectral Density
DAC11001A DAC91001 DAC81001 D038_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode, measured at DAC output pin
Figure 43. Clock Feedthrough
DAC11001A DAC91001 DAC81001 D002_SLASEL0.gif
Figure 4. Differential Linearity Error vs Digital Input Code

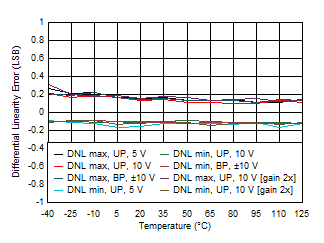

DAC11001A DAC91001 DAC81001 D004_SLASEL0.gif Figure 6. Differential Linearity Error vs Temperature
DAC11001A DAC91001 DAC81001 D008_SLASEL0.gif Figure 8. Positive Full-Scale Error vs Temperature
DAC11001A DAC91001 DAC81001 D010_SLASEL0.gif
Figure 10. Integral Linearity Error vs Supply Voltage
DAC11001A DAC91001 DAC81001 D012_SLASEL0.gif

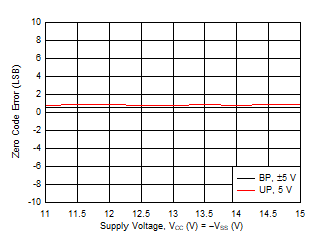

Figure 12. Zero Code Error vs Supply Voltage
DAC11001A DAC91001 DAC81001 D014_SLASEL0.gif
Figure 14. Gain Error vs Supply Voltage
DAC11001A DAC91001 DAC81001 D017_SLASEL0.gif
Figure 16. Differential Linearity Error vs Reference Voltage
DAC11001A DAC91001 DAC81001 D018_SLASEL0.gif

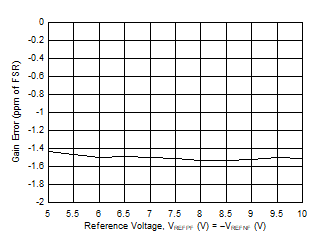

Figure 18. Gain Error vs Reference Voltage
DAC11001A DAC91001 DAC81001 D020_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V
Figure 20. Supply Current (DVDD and IOVDD)
vs Digital Input Code
DAC11001A DAC91001 DAC81001 D020B_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V

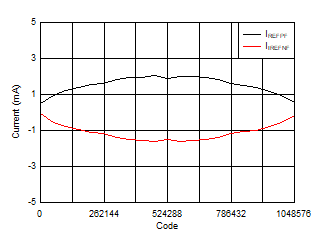

Figure 22. Reference Current (VREFPF and VREFNF)
vs Digital Input Code
DAC11001A DAC91001 DAC81001 D021A_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode

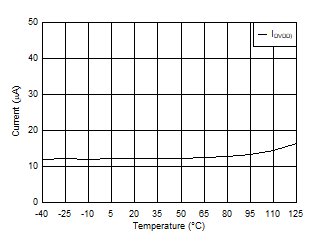

Figure 24. Supply Current (DVDD) vs Temperature
DAC11001A DAC91001 DAC81001 D021C_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode

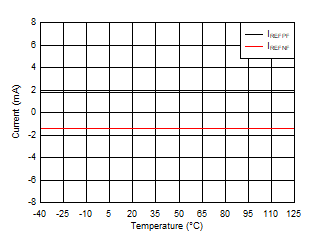

Figure 26. Reference Current (VREFPF and VREFNF)
vs Temperature
DAC11001A DAC91001 DAC81001 D022_SLASEL0.gif
VREFPF = 5 V, VREFNF = 0 V, DAC at midcode

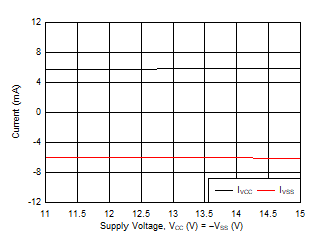

Figure 28. Supply Current (VCC and VSS) vs Supply Voltage
DAC11001A DAC91001 DAC81001 D023B_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode
Figure 30. Supply Current (IOVDD = 1.8 V)
vs Input Pin Logic Level
DAC11001A DAC91001 DAC81001 D025_SLASEL0.gif
VREFPF = 10 V, VREFNF = –10 V, DAC transition midcode to midcode – 1
Figure 32. Glitch Impulse, Falling Edge, 1-LSB Step
DAC11001A DAC91001 DAC81001 D027_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V
Figure 34. Segment Glitch Impulse, 1-LSB Step
DAC11001A DAC91001 DAC81001 D029_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V

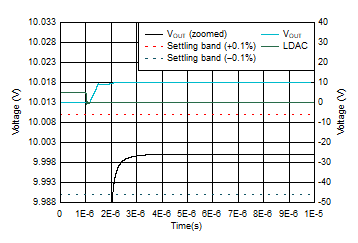

Figure 36. Full-Scale Settling Time, Rising Edge
DAC11001A DAC91001 DAC81001 D031_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC transitions 100 codes around midscale
Figure 38. 100 Codes Settling Time, Rising Edge
DAC11001A DAC91001 DAC81001 D033_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC output frequency = 1 kHz, DAC update rate = 400 kHz
Figure 40. Total Harmonic Distortion (THD + N)
vs Frequency
DAC11001A DAC91001 DAC81001 D037_SLASEL0.gif
VREFPF = 10 V, VREFNF = 0 V, DAC at midcode, measured at DAC output pin
Figure 42. DAC Output Noise: 0.1 Hz to 10 Hz
