8 Detailed Description

8.1 Overview

The DAC8812 contains two 16-bit, current-output, digital-to-analog converters (DACs). Each DAC has its own independent multiplying reference input. The DAC8812 uses a 3-wire, SPI-compatible serial data interface, with a configurable asynchronous RS pin for midscale (MSB = 1) or zero-scale (MSB = 0) preset. In addition, an LDAC strobe enables two channel simultaneous updates for hardware synchronized output voltage changes.

8.2 Functional Block Diagram

DAC8812 fbd_bas349.gif

8.3 Feature Description

8.3.1 Digital-to-Analog Converters

The DAC8812 contains two current-steering R-2R ladder DACs. Figure 30 shows a typical equivalent DAC. Each DAC contains a matching feedback resistor for use with an external I-to-V converter amplifier. The RFBX pin is connected to the output of the external amplifier. The IOUTX pin is connected to the inverting input of the external amplifier. The AGNDX pin should be Kelvin-connected to the load point in the circuit requiring the full 16-bit accuracy.

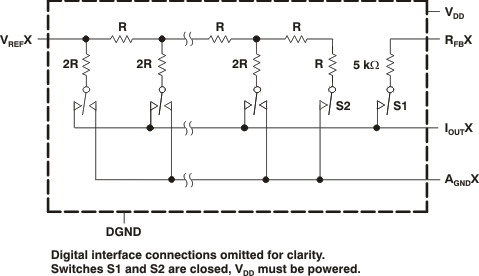

DAC8812 typeq-dac_bas349.gif Figure 30. Typical Equivalent DAC Channel

The DAC is designed to operate with both negative or positive reference voltages. The VDD power pin is only used by the logic to drive the DAC switches on and off. Note that a matching switch is used in series with the internal 5 kΩ feedback resistor. If users are attempting to measure the value of RFB, power must be applied to VDD in order to achieve continuity. The DAC output voltage is determined by VREF and the digital data (D) according to Equation 1:

Equation 1. DAC8812 q_vovref_bas349.gif

Note that the output polarity is opposite of the VREF polarity for dc reference voltages.

The DAC is also designed to accommodate ac reference input signals. The DAC8812 accommodates input reference voltages in the range of –15 V to 15 V. The reference voltage inputs exhibit a constant nominal input resistance of 5 kΩ, ±20%. On the other hand, DAC outputs IOUTA and B are code-dependent and produce various output resistances and capacitances.

The choice of external amplifier should take into account the variation in impedance generated by the DAC8812 on the amplifiers' inverting input node. The feedback resistance, in parallel with the DAC ladder resistance, dominates output voltage noise. For multiplying mode applications, an external feedback compensation capacitor, CFB (4 pF to 20 pF typical), may be needed to provide a critically damped output response for step changes in reference input voltages.

Figure 15 shows the gain vs frequency performance at various attenuation settings using a 3 pF external feedback capacitor connected across the IOUTX and RFBX pins. In order to maintain good analog performance, power-supply bypassing of 0.01 μF, in parallel with 1 μF, is recommended. Under these conditions, clean power supply with low ripple voltage capability should be used. Switching power supplies is usually not suitable for this application due to the higher ripple voltage and PSS frequency-dependent characteristics. It is best to derive the DAC8812 5-V supply from the system analog supply voltages (do not use the digital 5-V supply); see Figure 31.

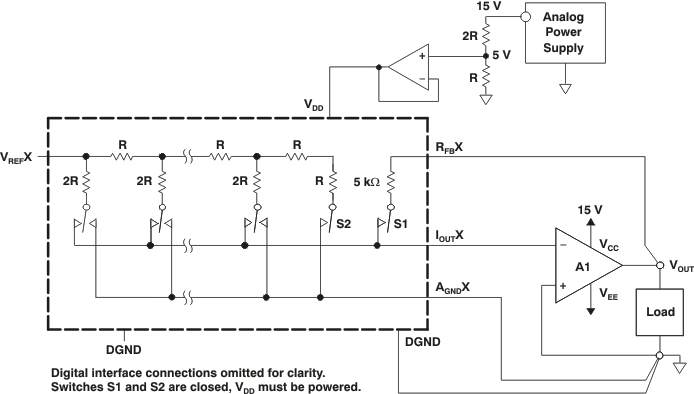

DAC8812 typeq-ksh_bas349.gif Figure 31. Recommended Kelvin-Sensed Hookup

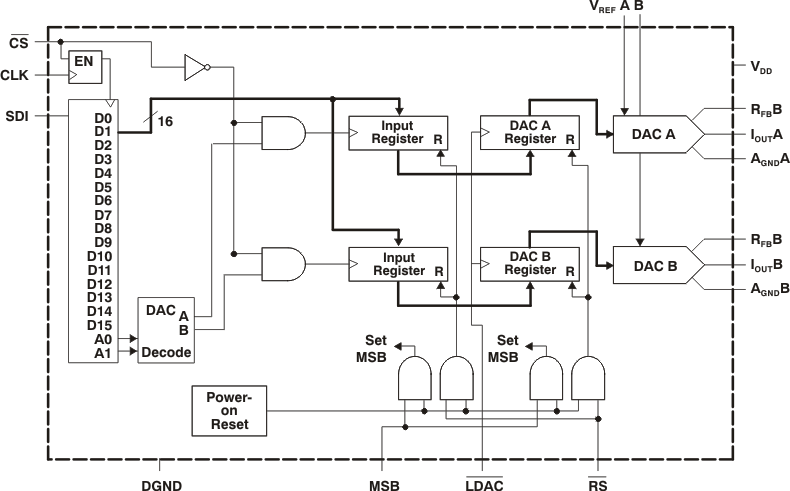

DAC8812 fbd-digit_bas349.gif Figure 32. System-Level Digital Interfacing

8.3.2 Power-On Reset

When the VDD power supply is turned on, an internal reset strobe forces all the Input and DAC registers to the zero-code state or midscale, depending on the MSB pin voltage. The VDD power supply should have a smooth positive ramp without drooping, in order to have consistent results, especially in the region of VDD = 1.5 V to
2.3 V. The DAC register data stays at zero or midscale setting until a valid serial register data load takes place.

8.3.2.1 ESD Protection Circuits

All logic-input pins contain back-biased ESD protection zener diodes connected to ground (DGND) and VDD as shown in Figure 33.

DAC8812 too_esd_bas349.gif Figure 33. Equivalent ESD Protection Circuits

8.4 Device Functional Modes

8.4.1 Serial Data Interface

The DAC8812 uses a 3-wire (CS, SDI, CLK) SPI-compatible serial data interface. Serial data of the DAC8812 is clocked into the serial input register in an 18-bit data-word format. MSB bits are loaded first. Table 1 defines the 18 data-word bits for the DAC8812.

Data is placed on the SDI pin, and clocked into the register on the positive clock edge of CLK subject to the data setup and data hold time requirements specified in the Interface Timing specifications of the Electrical Characteristics. Data can only be clocked in while the CS chip select pin is active low. For the DAC8812, only the last 18 bits clocked into the serial register are interrogated when the CS pin returns to the logic high state.

Because most microcontrollers output serial data in 8-bit bytes, three right-justified data bytes can be written to the DAC8812. Keeping the CS line low between the first, second, and third byte transfers will result in a successful serial register update.

When the data is properly aligned in the shift register, the positive edge of the CS initiates the transfer of new data to the target DAC register, determined by the decoding of address bits A1 and A0. For the DAC8812, Table 1, Table 2, Table 3, and Figure 1 define the characteristics of the software serial interface.

Table 1. Serial Input Register Data Format, Data Loaded MSB First(1)

Bit B17 (MSB) B16 B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0 (LSB)
Data A1 A0 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
(1) Only the last 18 bits of data clocked into the serial register (address + data) are inspected when the CS line positive edge returns to logic high. At this point an internally-generated load strobe transfers the serial register data contents (bits D15-D0) to the decoded DAC-input-register address determined by bits A1 and A0. Any extra bits clocked into the DAC8812 shift register are ignored; only the last 18 bits clocked in are used. If double-buffered data is not needed, the LDAC pin can be tied logic low to disable the DAC registers.

Table 2. Control Logic Truth Table(1)

CS CLK LDAC RS MSB SERIAL SHIFT REGISTER INPUT REGISTER DAC REGISTER
H X H H X No effect Latched Latched
L L H H X No effect Latched Latched
L ↑+ H H X Shift register data advanced one bit Latched Latched
L H H H X No effect Latched Latched
↑+ L H H X No effect Selected DAC updated with current SR contents Latched
H X L H X No effect Latched Transparent
H X H H X No effect Latched Latched
H X ↑+ H X No effect Latched Latched
H X H L 0 No effect Latched data = 0000h Latched data = 0000h
H X H L H No effect Latched data = 8000h Latched data = 8000h
(1) ↑+ = Positive logic transition; X = Don't care

Table 3. Address Decode

A1 A0 DAC DECODE
0 0 None
0 1 DAC A
1 0 DAC B
1 1 DAC A and DAC B

Figure 34 shows the equivalent logic interface for the key digital control pins for the DAC8812.

DAC8812 typeq-li_bas349.gif Figure 34. DAC8812 Equivalent Logic Interface

Two additional pins, RS and MSB, provide hardware control over the preset function and DAC register loading. If these functions are not needed, the RS pin can be tied to logic high. The asynchronous input RS pin forces all input and DAC registers to either the zero-code state (MSB = 0), or the midscale state (MSB = 1).
