8.4.1 Layout Guidelines

  • DAC RF output traces
    • DAC38RF80, DAC38RF90, DAC38RF84: Single-ended 50 Ω co-planar wave guide for output traces is recommended.
    • DAC38RF83, DAC38RF93, DAC38RF85: Differential 100 Ω co-planar wave guide for output traces is recommended.
    • Use short RF traces. Place DAC close to edge of PCB to shorten the length of output and clock traces. This helps to minimize PCB loss and coupling
    • Stitch the ground plane with ground vias uniformly along the output trace. An example is shown in 5
    • Avoid width/spacing differences when entering a landing pad (for example, a balun) by tapering or by redefining width/space rules for the traces

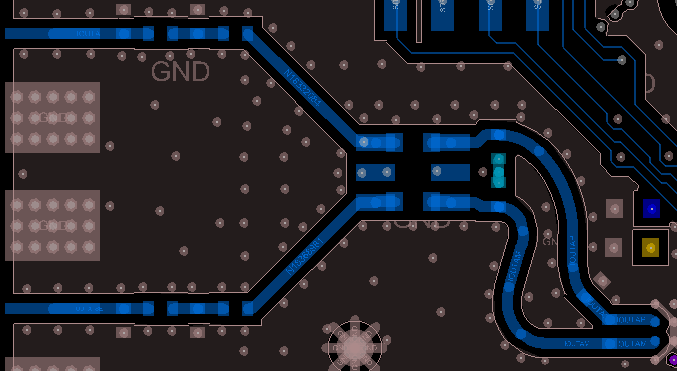

    GUID-4EDDF82B-6449-4F7C-892D-98708A39BD75-low.png Figure 8-7 Single-ended, 50-Ω Coplanar Wave Guide RF Output Trace Example
  • Power supply planes
    • Make sure sufficient lateral spacing between two power planes (about 3x the thickness of the plane is recommended)
    • Insert ground plane between adjacent power planes where possible

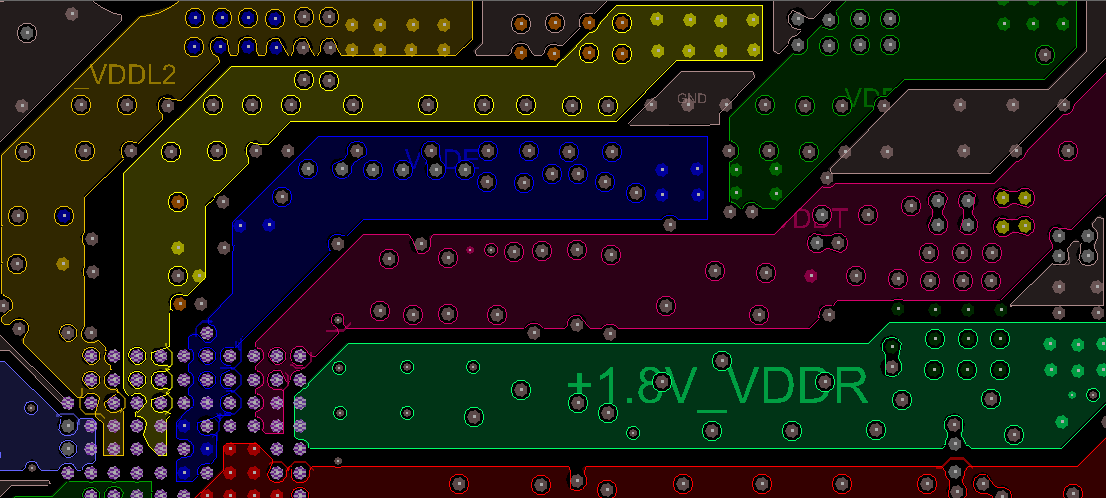

      GUID-502F5026-66F6-463B-909E-0A105673510B-low.png Figure 8-8 Example Power Plane Routing
  • Bypass Capacitors
    • Use bypass capacitors with in-pad vias and place between the pin and the power plane. Avoid sharing ground vias or pads of bypass caps used for different power rails
    • Minimize stubs on bypass capacitors to avoid parasitic inductance

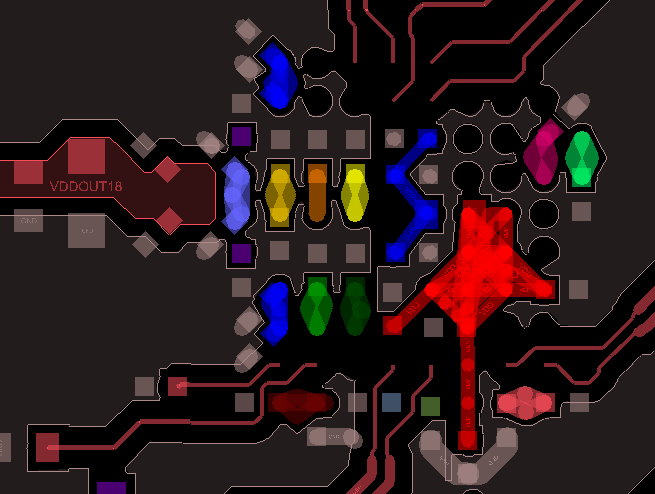

      GUID-36B90A29-2BCE-49B5-9336-817FF151D8C3-low.png Figure 8-9 Bypass Capacitors Placed on the Power Supply Pin with In-pad Vias
  • High speed SerDes traces
    • Route all SerDes traces straight and minimized sharp curves or serpentines. Route for best signal integrity
    • Some skew between SerDes traces can be tolerated. It is recommended to limit skew between traces to 320ps or less
    • Place ground planes between the SerDes traces for improved isolation

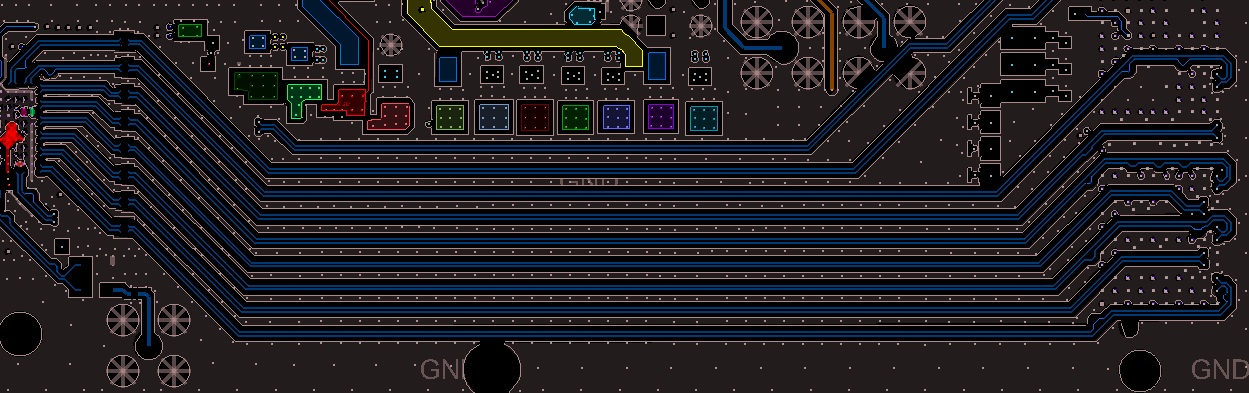

      GUID-D98224CB-F764-4DCC-83C3-9A3937EC564C-low.png Figure 8-10 Layout Example of High Speed SerDes Traces
