6.10 Typical Characteristics

Unless otherwise noted, all plots are at TA = 25°C, nominal supply voltages, fDAC = 9 GSPS, 12x interpolation, 0 dBFS digital input, 40 mA full scale output current (with 2:1 transformer in DAC38RF83/93/85 only), LMFSHd = 84111 and PLL is disabled.

Measured 50 MHz from carrierDAC38RF83/93/85
Figure 6-1 NSD vs Output Frequency Over Input Scale
Measured 50 MHz from carrierDAC38RF83/93/85

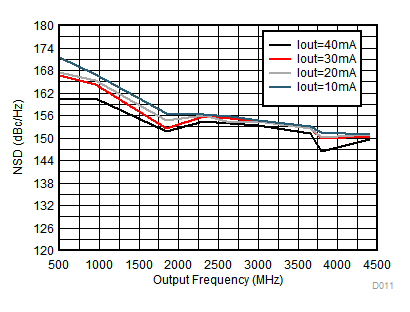

Figure 6-3 NSD vs Output Frequency Over Output Current IoutFS
Measured 50 MHz from carrierDAC38RF83/93/85
Figure 6-5 NSD vs Output Frequency Over Clocking Option
DAC38RF83/93/85
Figure 6-7 HD2 vs Output Frequency Over Input Scale
DAC38RF83/93/85

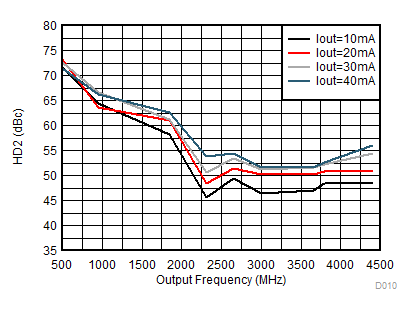

Figure 6-9 HD2 vs Output Frequency Over Output Current IoutFS
DAC38RF83/93/85

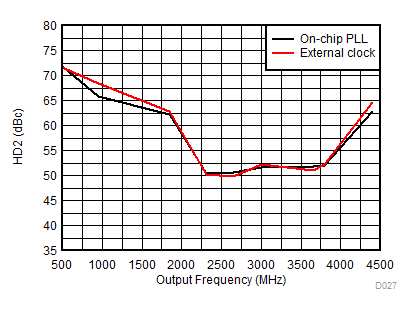

Figure 6-11 HD2 vs Output Frequency Over Clocking Option
DAC38RF83/93/85

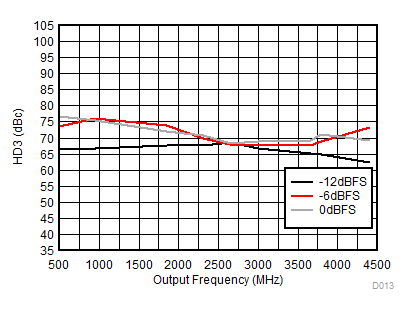

Figure 6-13 HD3 vs Output Frequency Over Input Scale
DAC38RF83/93/85
Figure 6-15 HD3 vs Output Frequency Over Output Current IoutFS
DAC38RF83/93/85
Figure 6-17 HD3 vs Output Frequency Over Clocking Option
Excludes HD2, HD3 and CMP2DAC38RF83/93/85

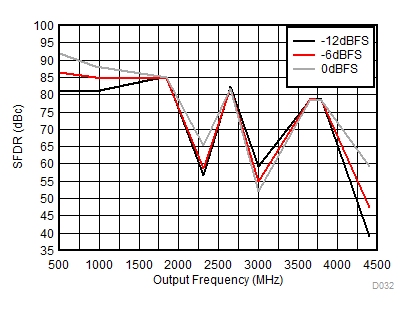

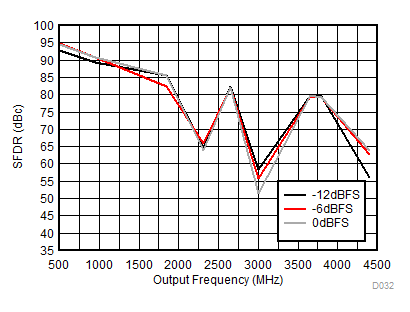

Figure 6-19 SFDR vs Output Frequency Over Input Scale
Excludes HD2, HD3 and CMP2DAC38RF83/93/85

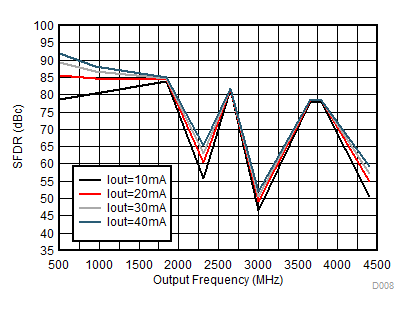

Figure 6-21 SFDR vs Output Frequency Over Output Current IoutFS
Excludes HD2, HD3 and CMP2DAC38RF83/93/85

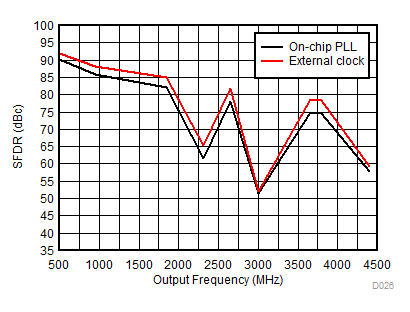

Figure 6-23 SFDR vs Output Frequency Over Clocking Option
±250 MHz SpanDAC38RF83/93/85
Figure 6-25 SFDR vs Output Frequency Over Input Scale
± 250 MHz SpanDAC38RF83/93/85
Figure 6-27 SFDR vs Output Frequency Over Output Current IoutFS
± 250 MHz SpanDAC38RF83/93/85

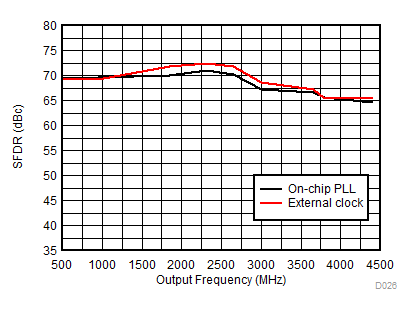

Figure 6-29 SFDR vs Output Frequency Over Clocking Option
DAC38RF83/93/85
Figure 6-31 IMD3 vs Output Frequency Over Input Scale
DAC38RF83/93/85
Figure 6-33 IMD3 vs Output Frequency Over Output Current IoutFS
DAC38RF83/93/85
Figure 6-35 IMD3 vs Output Frequency Over Clocking Option
Transformer loss not de-embeddedDAC38RF83/93/85

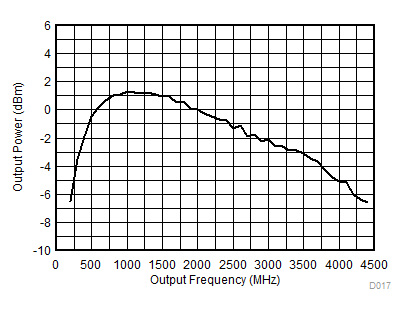

Figure 6-37 Power vs Output Frequency
DAC38RF83/93/85

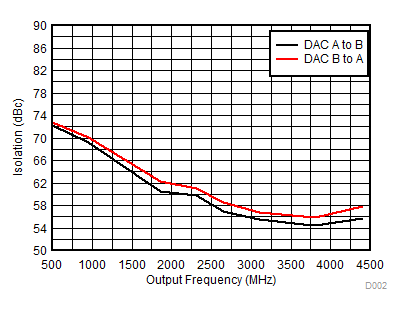

Figure 6-39 Isolation vs Output Frequency
VCO frequency = 8.85 GHzMeasured at 1.8 GHz

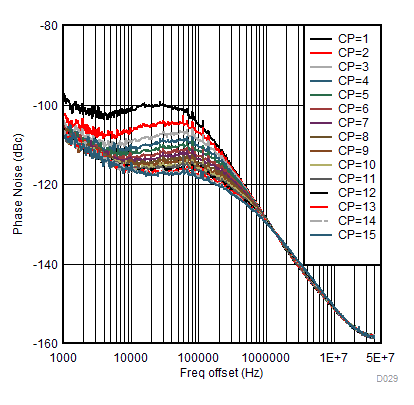

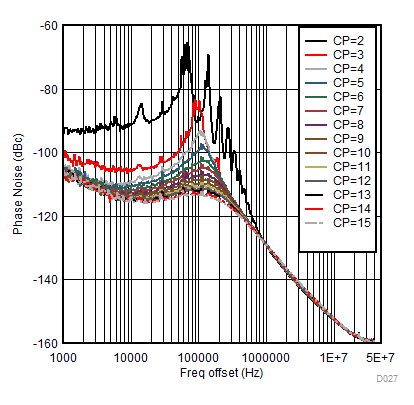

Figure 6-41 VCO1 Phase Noise vs Offset Frequency Over Charge pump current
VCO frequency = 5.9 GHzMeasured at 1.8 GHz
Figure 6-43 VCO0 Phase Noise vs Offset Frequency Over Charge Pump Current
Measured 50 MHz from carrierDAC38RF80/90/84
Figure 6-2 NSD vs Output Frequency Over Input Scale
Measured 50 MHz from carrierDAC38RF80/90/84
Figure 6-4 NSD vs Output Frequency Over Output Current IoutFS
Measured 50 MHz from carrierDAC38RF80/90/84
Figure 6-6 NSD vs Output Frequency Over Clocking Option
DAC38RF80/90/84
Figure 6-8 HD2 vs Output Frequency Over Input Scale
DAC38RF80/90/84
Figure 6-10 HD2 vs Output Frequency Over Output Current IoutFS
DAC38RF80/90/84
Figure 6-12 HD2 vs Output Frequency Over Clocking Option
DAC38RF80/90/84
Figure 6-14 HD3 vs Output Frequency Over Input Scale
DAC38RF80/90/84
Figure 6-16 HD3 vs Output Frequency Over Output Current IoutFS
DAC38RF80/90/84
Figure 6-18 HD3 vs Output Frequency Over Clocking Option
Excludes HD2, HD3 and CMP2DAC38RF80/90/84
Figure 6-20 SFDR vs Output Frequency Over Input Scale
Excludes HD2, HD3 and CMP2DAC38RF80/90/84
Figure 6-22 SFDR vs Output Frequency Over Output Current IoutFS
Excludes HD2, HD3 and CMP2DAC38RF80/90/84
Figure 6-24 SFDR vs Output Frequency Over Clocking Option
±250 MHz SpanDAC38RF80/90/84
Figure 6-26 SFDR vs Output Frequency Over Input Scale
± 250 MHz SpanDAC38RF80/90/84
Figure 6-28 SFDR vs Output Frequency Over Output Current IoutFS
± 250M Hz SpanDAC38RF80/90/84
Figure 6-30 SFDR vs Output Frequency Over Clocking Option
DAC38RF80/90/84
Figure 6-32 IMD3 vs Output Frequency Over Input Scale
DAC38RF80/90/84
Figure 6-34 IMD3 vs Output Frequency Over Output Current IoutFS
DAC38RF80/90/84
Figure 6-36 IMD3 vs Output Frequency Over Clocking Option
DAC38RF80/90/84
Figure 6-38 Power vs Output Frequency
DAC38RF80/90/84
Figure 6-40 Isolation vs Output Frequency

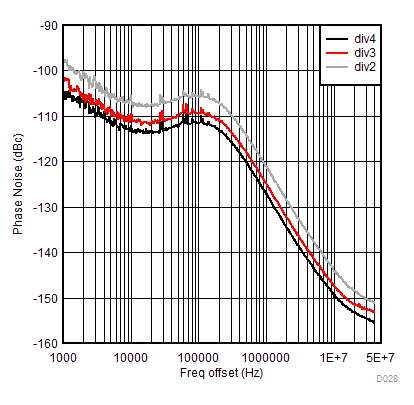

VCO frequency = 8.85 GHz
Figure 6-42 VCO1 Output Clock Phase Noise vs Offset frequency Over Divider Ratio

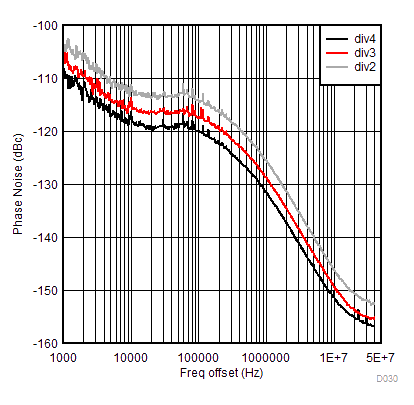

VCO frequency = 5.9 GHz
Figure 6-44 VCO0 Output clock Phase Noise vs Offset Frequency Over Divider Ratio
