3.3 Typical MOSFET Characteristics

(T_A = 25°C unless otherwise stated)

Figure 3-1 Transient Thermal Impedance

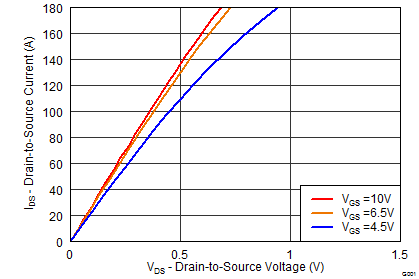

Figure 3-2 Saturation Characteristics

Figure 3-3 Transfer Characteristics

Figure 3-4 Gate Charge

Figure 3-6 Threshold Voltage vs Temperature

Figure 3-8 Normalized On-State Resistance vs Temperature

Figure 3-10 Maximum Safe Operating Area

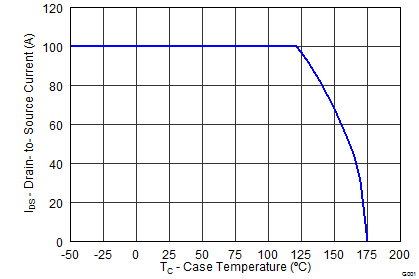

Figure 3-12 Maximum Drain Current vs Temperature

Figure 3-5 Capacitance

Figure 3-7 On-State Resistance vs Gate-to-Source Voltage

Figure 3-9 Typical Diode Forward Voltage

Figure 3-11 Single Pulse Unclamped Inductive Switching
