5 Specifications

5.1 Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 30 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 1.0 1.3 1.7 V
RDS(on) Drain-to-source on-resistance VGS = 4.5 V, ID = 16 A 3.5 4.2
VGS = 10 V, ID = 16 A 2.9 3.4
gfs Transconductance VDS = 3 V, ID = 16 A 85 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 15 V, ƒ = 1 MHz 2800 3640 pF
Coss Output capacitance 342 445 pF
Crss Reverse transfer capacitance 150 195 pF
RG Series gate resistance 1.8 3.6 Ω
Qg Gate charge total (4.5 V) VDS = 15 V, ID = 16 A 20 25 nC
Qg Gate charge total (10 V) 41 54
Qgd Gate charge gate-to-drain 4.0 nC
Qgs Gate charge gate-to-source 6.9 nC
Qg(th) Gate charge at Vth 3.6 nC
Qoss Output charge VDS = 15 V, VGS = 0 V 11.7 nC
td(on) Turnon delay time VDS = 15 V, VGS = 10 V,
IDS = 16 A, RG = 0 Ω
12 ns
tr Rise time 21 ns
td(off) Turnoff delay time 25 ns
tf Fall time 10 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 16 A, VGS = 0 V 0.8 1.0 V
Qrr Reverse recovery charge VDS= 15 V, IF = 16 A,
di/dt = 300 A/μs
13 nC
trr Reverse recovery time 11 ns

5.2 Thermal Information

TA = 25°C (unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 1.5 °C
RθJA Junction-to-ambient thermal resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in
(3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.
CSD17581Q5A M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1-in2 (6.45-cm2) of
2-oz (0.071-mm) thick Cu.
CSD17581Q5A M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of
2-oz (0.071-mm) thick Cu.

5.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD17581Q5A D001_SLPS630.png

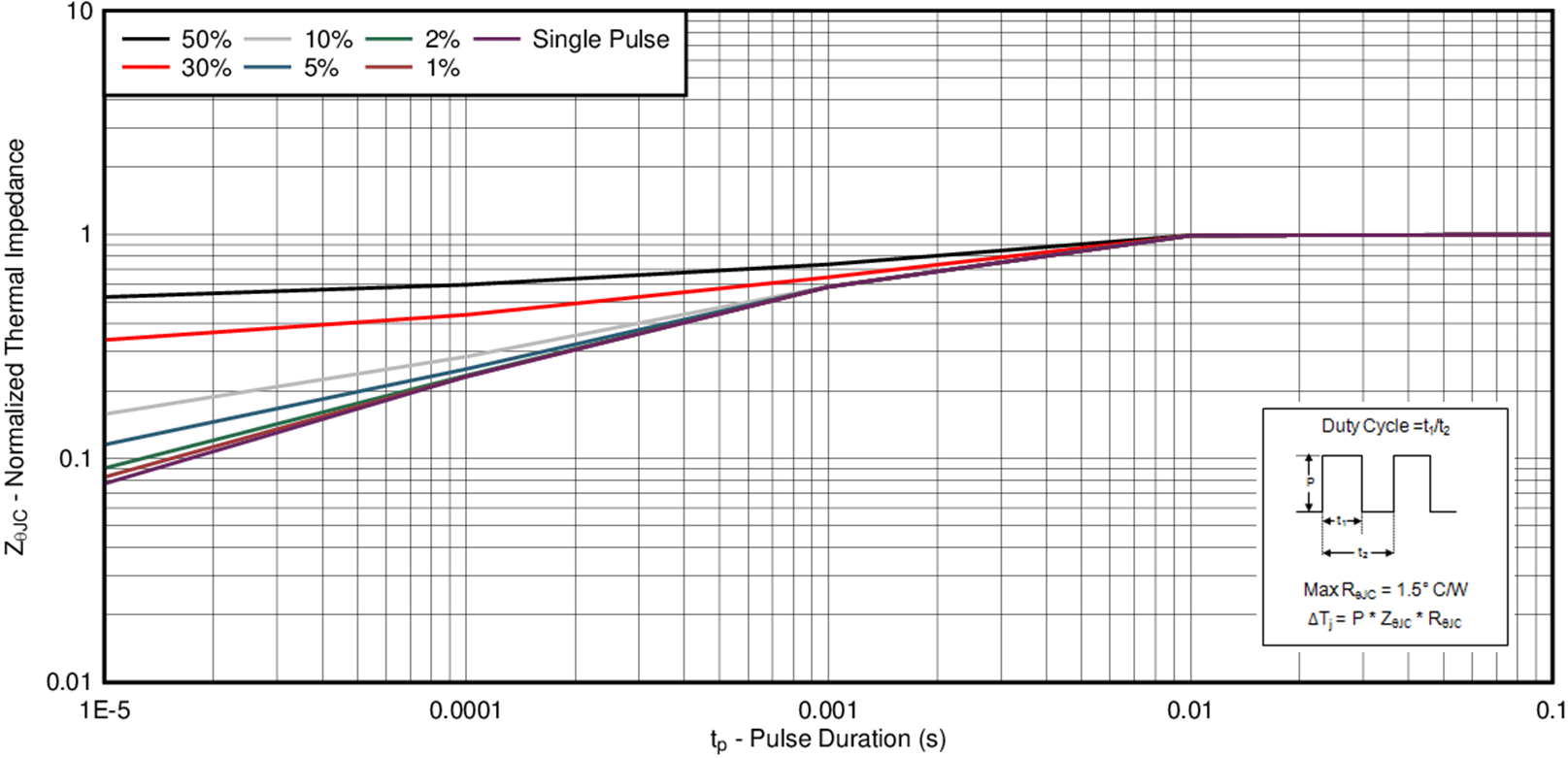

Figure 1. Transient Thermal Impedance
CSD17581Q5A D002_SLPS630.gif

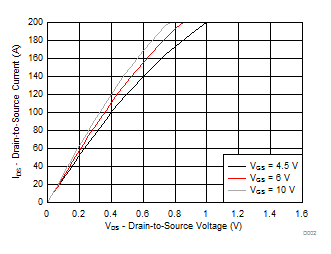

Figure 2. Saturation Characteristics
CSD17581Q5A D004_SLPS630.gif
ID = 16 A VDS = 15 V

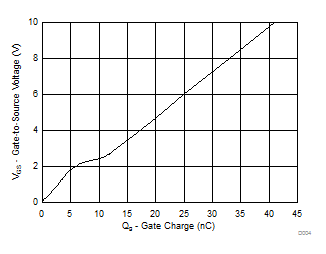

Figure 4. Gate Charge
CSD17581Q5A D006_SLPS630.gif
ID = 250 µA

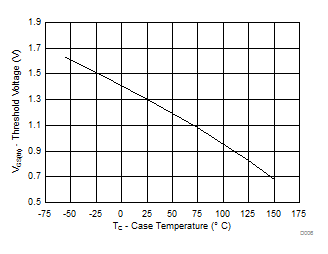

Figure 6. Threshold Voltage vs Temperature
CSD17581Q5A D008_SLPS630.gif
ID = 16 A

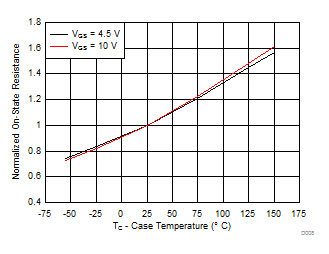

Figure 8. Normalized On-State Resistance vs Temperature
CSD17581Q5A D010_SLPS630.gif
Single pulse, max RθJC = 1.5°C/W

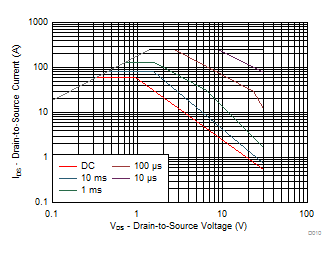

Figure 10. Maximum Safe Operating Area (SOA)
CSD17581Q5A D012_SLPS630.gif
Figure 12. Maximum Drain Current vs Temperature
CSD17581Q5A D003_SLPS630.gif
VDS = 5 V

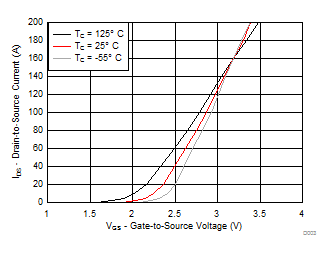

Figure 3. Transfer Characteristics
CSD17581Q5A D005_SLPS630.gif

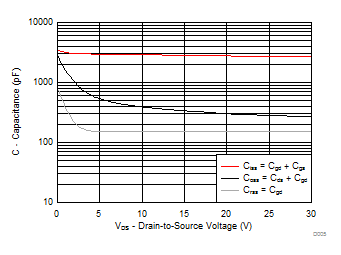

Figure 5. Capacitance
CSD17581Q5A D007_SLPS630.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD17581Q5A D009_SLPS630.gif

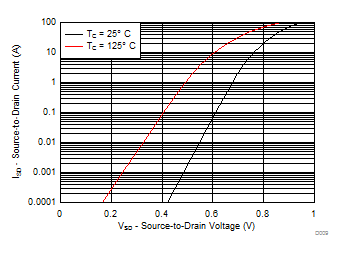

Figure 9. Typical Diode Forward Voltage
CSD17581Q5A D011_SLPS630.gif
Figure 11. Single Pulse Unclamped Inductive Switching
