5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-Source Voltage VGS = 0 V, IDS = 250 μA 30 V
IDSS Drain-to-Source Leakage Current VGS = 0 V, VDS = 24 V 1 μA
IGSS Gate-to-Source Leakage Current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-Source Threshold Voltage VDS = VGS, IDS = 250 μA 1.2 1.4 1.7 V
RDS(on) Drain-to-Source On-Resistance VGS = 4.5 V, IDS = 40 A 1.15 1.5 mΩ
VGS = 10 V, IDS = 40 A 0.95 1.15 mΩ
gƒs Transconductance VDS = 15 V, IDS = 40 A 235 S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VGS = 0 V, VDS = 15 V,
ƒ = 1 MHz		 7070 9200 pF
Coss Output Capacitance 1780 2314 pF
Crss Reverse Transfer Capacitance 87 113 pF
RG Series Gate Resistance 1.2 2.4 Ω
Qg Gate Charge Total (4.5 V) VDS = 15 V, IDS = 40 A 39 51 nC
Qgd Gate Charge Gate-to-Drain 9.3 nC
Qgs Gate Charge Gate-to-Source 14.4 nC
Qg(th) Gate Charge at Vth 8.3 nC
Qoss Output Charge VDS = 15 V, VGS = 0 V 50 nC
td(on) Turn On Delay Time VDS = 15 V, VGS = 4.5 V,
IDS = 40 A, RG = 2 Ω		 20 ns
tr Rise Time 41 ns
td(off) Turn Off Delay Time 32 ns
tƒ Fall Time 14 ns
DIODE CHARACTERISTICS
VSD Diode Forward Voltage ISD = 40 A, VGS = 0 V 0.8 1 V
Qrr Reverse Recovery Charge VDD= 15 V, IF = 40 A, di/dt = 300 A/μs 80 nC
trr Reverse Recovery Time 37 ns

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-Case Thermal Resistance(1) 1.2 °C/W
RθJA Junction-to-Ambient Thermal Resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu pad on a 1.5 inches × 1.5 inches
(3.81 cm × 3.81 cm), 0.06 inch (1.52 mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
 Max RθJA = 50°C/W when mounted on 1 inch2 (6.45 cm2) of
2-oz. (0.071-mm thick) Cu.
 Max RθJA = 125°C/W when mounted on a minimum pad area of
2-oz. (0.071-mm thick) Cu.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

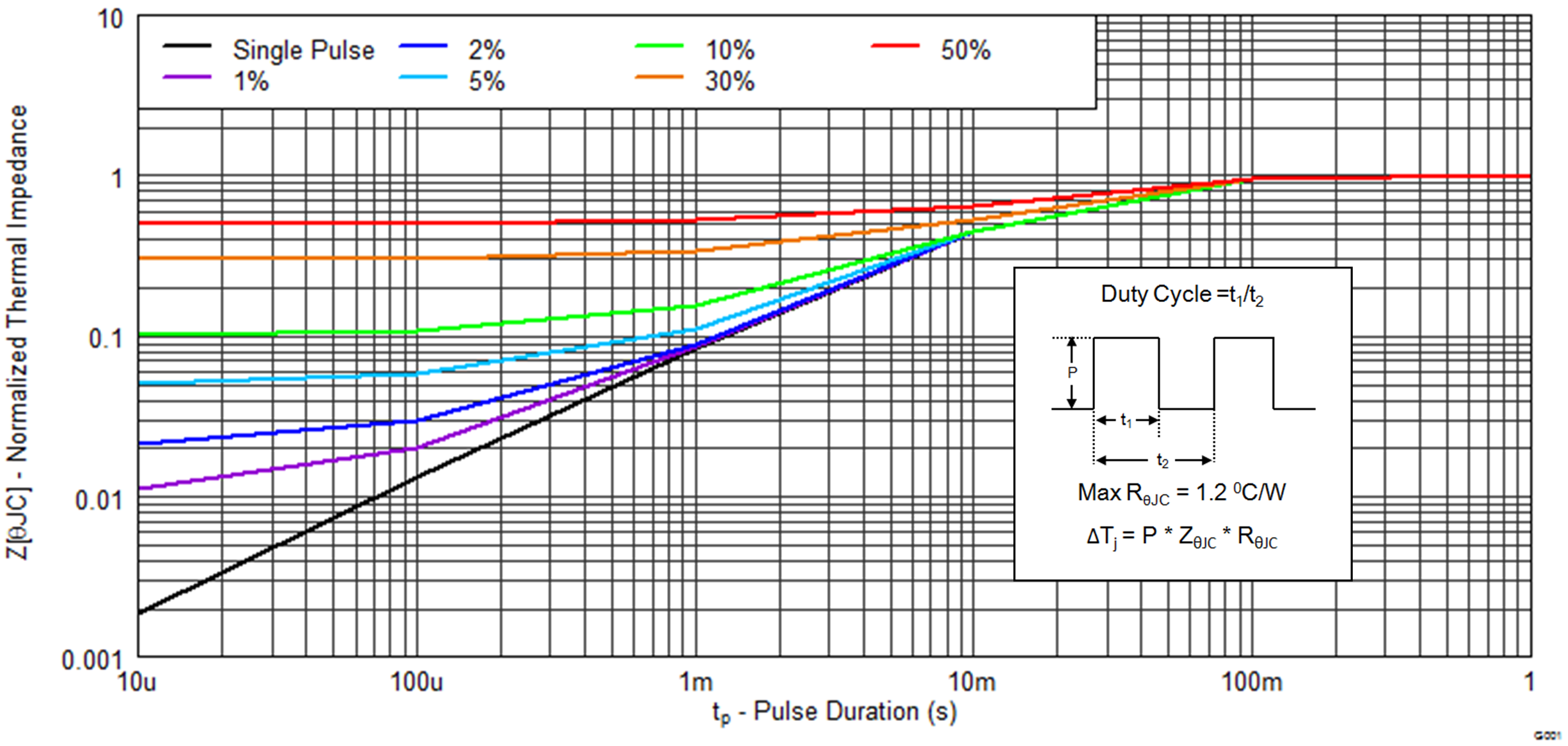

Figure 1. Transient Thermal Impedance

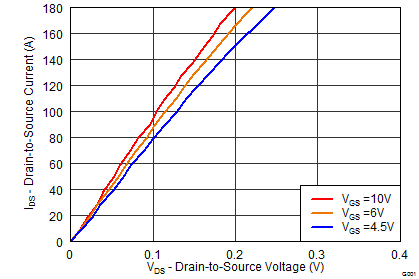

Figure 2. Saturation Characteristics
Figure 4. Gate Charge

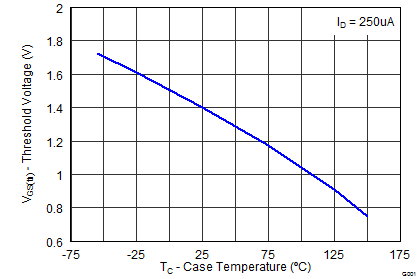

Figure 6. Threshold Voltage vs Temperature

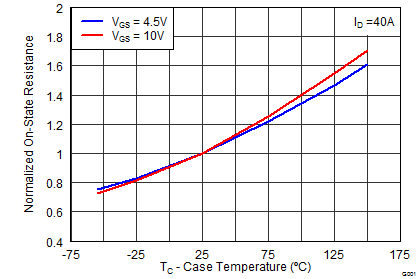

Figure 8. Normalized On-State Resistance vs Temperature
Figure 10. Safety Operating Area

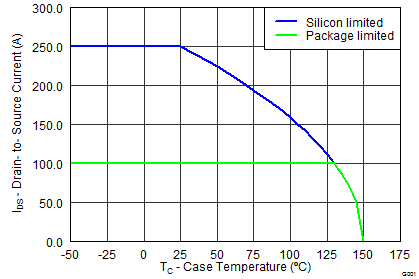

Figure 12. Maximum Drain Current vs Temperature
Figure 3. Transfer Characteristics

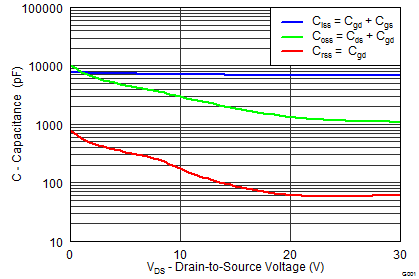

Figure 5. Capacitance
Figure 7. On-State Resistance vs Gate-to-Source Voltage

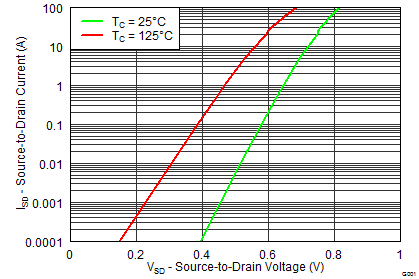

Figure 9. Typical Diode Forward Voltage

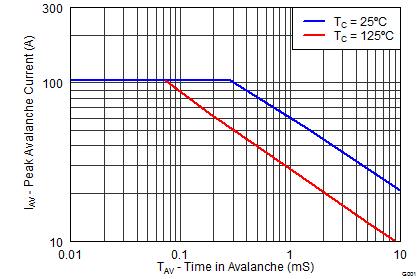

Figure 11. Single Pulse Unclamped Inductive Switching
