5 Specifications

5.1 Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 25 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 20 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = +10/-8 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, ID = 250 μA 0.9 1.1 1.4 V
RDS(on) Drain-to-source on-resistance VGS = 3 V, ID = 24 A 5.4 7.2 mΩ
VGS = 4.5 V, ID = 24 A 4.4 5.5
VGS = 8 V, ID = 24 A 3.8 4.5
gfs Transconductance VDS = 12.5 V, ID = 24 A 108 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = 12.5 V, ƒ = 1 MHz 1020 1300 pF
COSS Output capacitance 740 960 pF
CRSS Reverse transfer capacitance 50 65 pF
Rg Series gate resistance 1.4 2.8 Ω
Qg Gate charge total (4.5 V) VDS = 12.5 V, ID = 24 A 6.2 8.4 nC
Qgd Gate charge gate-to-drain 1.1 nC
Qgs Gate charge gate-to-source 1.8 nC
Qg(th) Gate charge at Vth 1 nC
QOSS Output charge VDS = 12.5 V, VGS = 0 V 14 nC
td(on) Turnon delay time VDS = 12.5 V, VGS = 4.5 V, ID = 24 A
RG = 2 Ω		 5.3 ns
tr Rise time 15 ns
td(off) Turnoff delay time 13 ns
tf Fall time 6.3 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IS = 24 A, VGS = 0 V 0.85 1 V
Qrr Reverse recovery charge VDD = 12.5 V, IF = 24 A, di/dt = 300 A/μs 21 nC
trr Reverse recovery time VDD = 12.5 V, IF = 24 A, di/dt = 300 A/μs 16 ns

5.2 Thermal Information

TA = 25°C (unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 1.7 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 55 °C/W
(1) RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in (3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.

CSD16323Q3 m0161-01_lps202.gif
Max RθJA = 55°C/W when mounted on 1 in2 of 2-oz Cu.

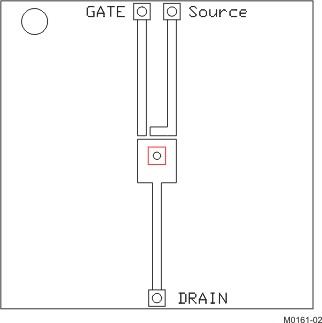

CSD16323Q3 m0161-02_lps202.gif
Max RθJA = 160°C/W when mounted on minimum pad area of 2-oz Cu.

5.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

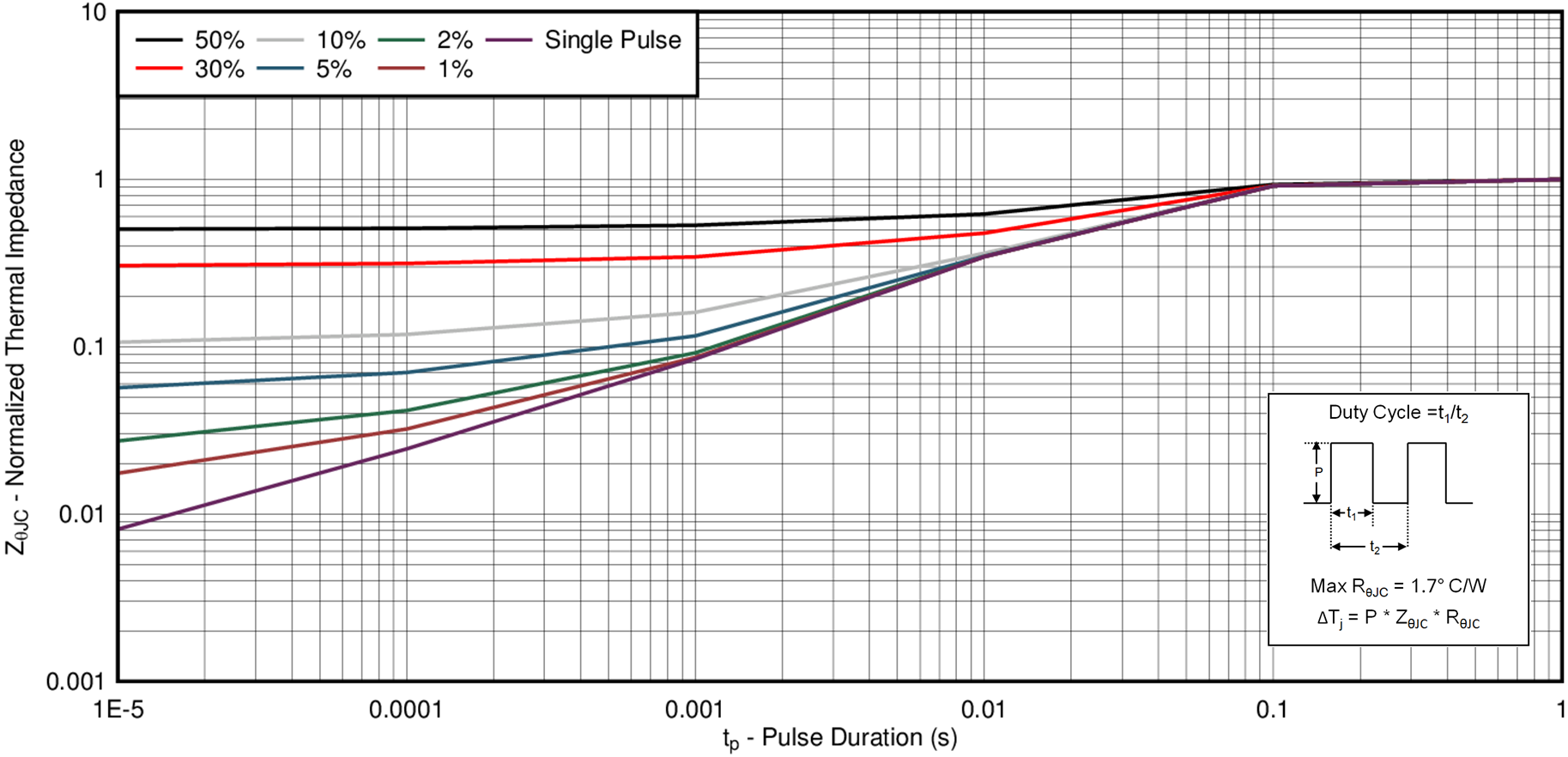

CSD16323Q3 D001_SLPS371.png
Figure 1. Transient Thermal Impedance
CSD16323Q3 D002_SLPS224B.gif
Figure 2. Saturation Characteristics

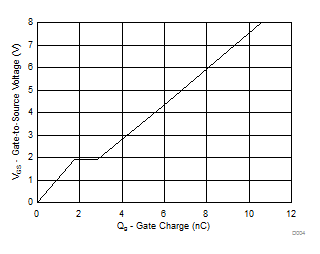

CSD16323Q3 D004_SLPS224B.gif
ID = 24 A VDS = 12.5 V
Figure 4. Gate Charge

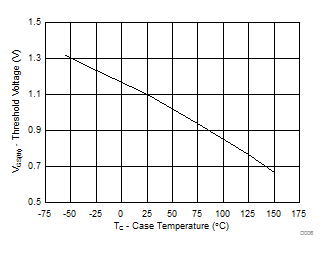

CSD16323Q3 D006_SLPS224B.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature

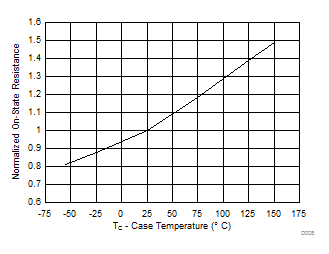

CSD16323Q3 D008_SLPS224B.gif
ID = 24 A VGS = 4.5 V
Figure 8. Normalized On Resistance vs Temperature

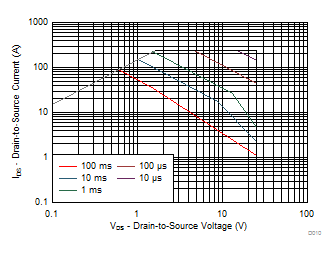

CSD16323Q3 D010_SLPS224B.gif
Single pulse, max RθJC = 1.7°C/W
Figure 10. Maximum Safe Operating Area

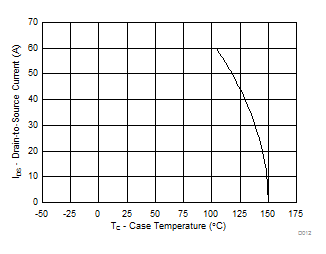

CSD16323Q3 D012_SLPS224B.gif
Figure 12. Maximum Drain Current vs Temperature

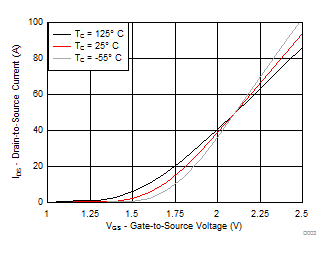

CSD16323Q3 D003_SLPS224B.gif
VDS = 5 V
Figure 3. Transfer Characteristics
CSD16323Q3 D005_SLPS224B.gif
f = 1 MHz VGS = 0 V
Figure 5. Capacitance
CSD16323Q3 D007_SLPS224B.gif
ID = 24 A
Figure 7. On Resistance vs Gate Voltage
CSD16323Q3 D009_SLPS224B.gif
Figure 9. Typical Diode Forward Voltage

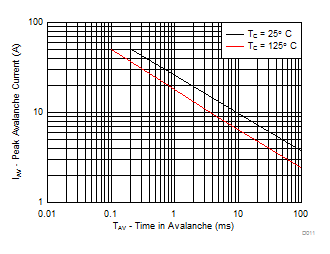

CSD16323Q3 D011_SLPS224B.gif
Figure 11. Single Pulse Unclamped Inductive Switching
