Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

GUID-BD656852-4FB2-45D8-8C8B-C1E9915D693E-low.gifFigure 5-1 Transient Thermal Impedance
VDS = 5 V
Figure 5-3 Transfer Characteristics
GUID-9CFB847F-69EF-4E69-A57B-8EA4FAAACD8E-low.gifFigure 5-2 Saturation Characteristics
VDS = 6 VID = 0.4 A
Figure 5-4 Gate Charge

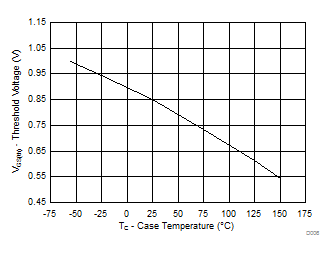

ID = 250 µA
Figure 5-6 Threshold Voltage vs Temperature
ID = 0.4A
Figure 5-8 Normalized On-State Resistance vs Temperature
Single pulse, typical RθJA = 255°C/W (min Cu)
Figure 5-10 Maximum Safe Operating Area
Typical RθJA = 255°C/W (min Cu)
Figure 5-12 Maximum Drain Current vs Temperature
GUID-F87C0969-9A2A-4E6D-8E72-56C6A274F9A2-low.gifFigure 5-5 Capacitance
GUID-72501334-AFB4-4CE2-8BC7-E1F21FB0C411-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage
GUID-6A1FE429-DFF6-48AC-9B60-BF2D3FBE43F6-low.gifFigure 5-9 Typical Diode Forward Voltage
GUID-AAC2045F-1619-4468-BD0F-868129B6D27A-low.gifFigure 5-11 Single Pulse Unclamped Inductive Switching
