8 Parameter Measurement Information

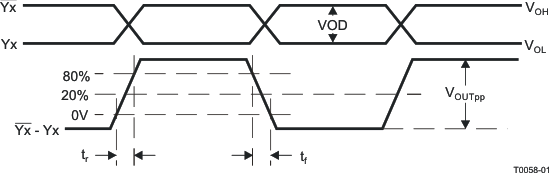

CDCM7005 t0058-01.gif Figure 9. LVPECL Differential Output Voltage and Rise/Fall Time
CDCM7005 t0059-01_cas793.gif
A. Output skew, tsk(o), is calculated as the greater of:
The difference between the fastest and the slowest tpd(LH)n (n = 0...4)
The difference between the fastest and the slowest tpd(HL)n (n = 0...4)
B. Pluse skew, tsk(p), is calculated as the magnitude of the absolute time difference between the high-to-low (tpd(HL)) and the low-to-high (tpd(LH)) propagation delays when a single switching input causes one or more outputs to switch,
tsk(p) = |tpd(HL) – tpd(LH) |. Pulse skew is sometimes refered to as pulse width distortion or duty cycle skew.
Figure 10. Output Skew

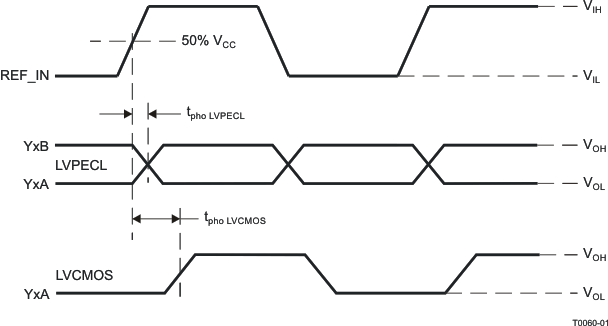

CDCM7005 t0060-01.gif Figure 11. Phase Offset
CDCM7005 s0079-01.gif Figure 12. LVCMOS Output Loading During Device Test
CDCM7005 s0078-01.gif Figure 13. LVPECL Output Loading During Device Test
