5.3 Recommended Operating Conditions

MIN NOM MAX UNIT
VCC Supply voltage range applied at all DVCC and AVCC pins(1)(2) during program execution and flash programming with PMM default settings. Radio is not operational with PMMCOREVx = 0, 1.(3) PMMCOREVx = 0
(default after POR)		 1.8 3.6 V
PMMCOREVx = 1 2.0 3.6
Supply voltage range applied at all DVCC and AVCC pins(1)(2) during program execution, flash programming and radio operation with PMM default settings.(3) PMMCOREVx = 2 2.2 3.6
PMMCOREVx = 3 2.4 3.6
Supply voltage range applied at all DVCC and AVCC pins(1)(2) during program execution, flash programming and radio operation with PMMCOREVx = 2, high-side SVS level lowered (SVSHRVLx = SVSHRRRLx = 1) or high-side SVS disabled (SVSHE = 0).(4)(3) PMMCOREVx = 2,
SVSHRVLx = SVSHRRRLx = 1 or SVSHE = 0		 2.0 3.6
VSS Supply voltage applied at the exposed die attach VSS and AVSS pin 0 V
TA Operating free-air temperature –40 85 °C
TJ Operating junction temperature –40 85 °C
CVCORE Recommended capacitor at VCORE 470 nF
Reduced capacitor at VCORE fSYSTEM ≤ 16 MHz,
PMMCOREVx ≤ 2, VCC ≥ 2.2 V		 100
CDVCC Recommended capacitor at DVCC 4.7 µF
fSYSTEM Processor (MCLK) frequency(5) (see Figure 5-1) PMMCOREVx = 0
(default condition)		 0 8 MHz
PMMCOREVx = 1 0 12
PMMCOREVx = 2 0 16
PMMCOREVx = 3 0 20
PINT Internal power dissipation VCC × IDVCC W
PIO I/O power dissipation of I/O pins powered by DVCC (VCC – VIOH) × IIOH + VIOL × IIOL W
PMAX Maximum allowed power dissipation, PMAX > PIO + PINT (TJ – TA) / θJA W
(1) TI recommends powering AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can be tolerated during power up and operation.
(2) The minimum supply voltage is defined by the supervisor SVS levels when it is enabled. See the Section 5.21 threshold parameters for the exact values and further details.
(3) Modules may have a different supply voltage range specification. See the specification of the respective module in this data sheet.
(4) Lowering the high-side SVS level or disabling the high-side SVS might cause the LDO to operate out of regulation but the core voltage still stays within its limits and is still supervised by the low-side SVS to ensure reliable operation.
(5) Modules may have a different maximum input clock specification. See the specification of the respective module in this data sheet.

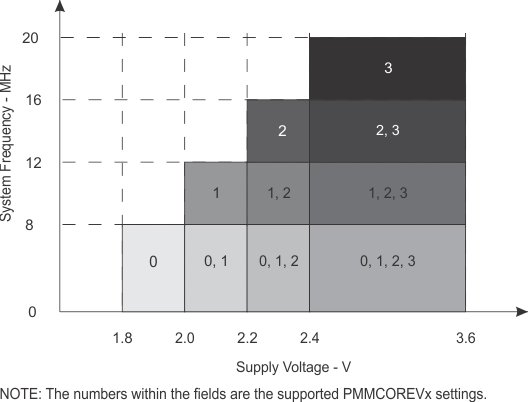

CC430F6147 CC430F6145 CC430F6143 CC430F5147 CC430F5145 CC430F5143 CC430F5125 CC430F5123 op_cond.gifFigure 5-1 Maximum System Frequency
