8.7 Typical Characteristics

Using circuit shown in Figure 23, TA = 25°C, unless otherwise specified.

bq24157 sour1_det_lusa27.gif
VBUS = 5 V at 8 mA, VBAT = 3.2V, Iin_limit = 100 mA,
ICHG = 550 mA
Figure 1. Poor Source Detection
bq24157 ip1_cur_lusb80.gif

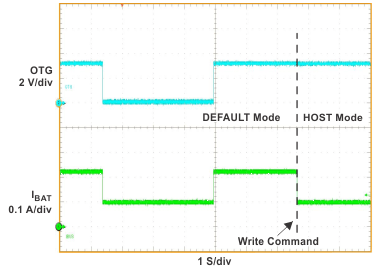

VBUS = 5 V, VBAT = 3.1V, Iin_limit = 100/500mA (OTG Control,
DEFAULT Mode), Iin_limit = 100 mA (I2C Control, HOST Mode)
Figure 3. Input Current Control
bq24157 eff1_cur_lusa27.gif
Figure 5. Charger Efficiency
bq24157 stp1_dwn_res_lusa27.gif
VBUS = 5.05 V VBAT = 3.5 V IBUS = 217 mA
Figure 7. Load Step Down Response (BOOST Mode)
bq24157 eff1_ld_lusa27.gif
Figure 9. BOOST Efficiency
bq24157 vbus_ld_lusa27.gif
Figure 11. Load Regulation for BOOST
bq24157 ramp_up_lusa27.gif
Vin = 5 V, VBAT = 3. 2V, No Input Current Limit,
ICHG = 1550mA
Figure 2. Charge Current Ramp Up
bq24157 VIN_DPM_lusa27.gif
VBUS = 5 V at 500 mA, VBAT = 3.5V, ICHG = 1550 mA,
VIN_DPM = 4.52 V
Figure 4. VIN Based DPM
bq24157 ovr1_load_lusa27.gif
VBUS = 5.05 V VBAT = 3.5 V
RLOAD (at VBUS) = 1 kΩ to 0.5 Ω
Figure 6. VBUS Overload Waveforms (BOOST Mode)
bq24157 otg1_cont_lusa27.gif
VBUS = 4.5 V (Charge Mode)/5.1 V (Boost Mode), VBAT = 3.5V, IIN_LIM = 500 mA, (HOST Mode)
Figure 8. BOOST to Charge Mode Transition (OTG Control)
bq24157 line_reg_boost_lusb80.gif
Figure 10. Line Regulation for BOOST
