ZHCSF38G March   2016  – May 2018 AM5716 , AM5718

PRODUCTION DATA.

  1. 器件概述
    1. 1.1 特性
    2. 1.2 应用
    3. 1.3 说明
    4. 1.4 功能方框图
  2. 修订历史记录
  3. Device Comparison
    1. 3.1 Device Comparison Table
  4. Terminal Configuration and Functions
    1. 4.1 Terminal Assignment
      1. 4.1.1 Unused Balls Connection Requirements
    2. 4.2 Ball Characteristics
    3. 4.3 Multiplexing Characteristics
    4. 4.4 Signal Descriptions
      1. 4.4.1  Video Input Ports (VIP)
      2. 4.4.2  Display Subsystem – Video Output Ports
      3. 4.4.3  Display Subsystem – High-Definition Multimedia Interface (HDMI)
      4. 4.4.4  Camera Serial Interface 2 CAL bridge (CSI2)
      5. 4.4.5  External Memory Interface (EMIF)
      6. 4.4.6  General-Purpose Memory Controller (GPMC)
      7. 4.4.7  Timers
      8. 4.4.8  Inter-Integrated Circuit Interface (I2C)
      9. 4.4.9  HDQ / 1-Wire Interface (HDQ1W)
      10. 4.4.10 Universal Asynchronous Receiver Transmitter (UART)
      11. 4.4.11 Multichannel Serial Peripheral Interface (McSPI)
      12. 4.4.12 Quad Serial Peripheral Interface (QSPI)
      13. 4.4.13 Multichannel Audio Serial Port (McASP)
      14. 4.4.14 Universal Serial Bus (USB)
      15. 4.4.15 SATA
      16. 4.4.16 Peripheral Component Interconnect Express (PCIe)
      17. 4.4.17 Controller Area Network Interface (DCAN)
      18. 4.4.18 Ethernet Interface (GMAC_SW)
      19. 4.4.19 Media Local Bus (MLB) Interface
      20. 4.4.20 eMMC/SD/SDIO
      21. 4.4.21 General-Purpose Interface (GPIO)
      22. 4.4.22 Keyboard controller (KBD)
      23. 4.4.23 Pulse Width Modulation (PWM) Interface
      24. 4.4.24 Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS)
      25. 4.4.25 Test Interfaces
      26. 4.4.26 System and Miscellaneous
        1. 4.4.26.1 Sysboot
        2. 4.4.26.2 Power, Reset, and Clock Management (PRCM)
        3. 4.4.26.3 Real-Time Clock (RTC) Interface
        4. 4.4.26.4 System Direct Memory Access (SDMA)
        5. 4.4.26.5 Interrupt Controllers (INTC)
        6. 4.4.26.6 Observability
      27. 4.4.27 Power Supplies
  5. Specifications
    1. 5.1 Absolute Maximum Ratings
    2. 5.2 ESD Ratings
    3. 5.3 Power on Hours (POH) Limits
    4. 5.4 Recommended Operating Conditions
    5. 5.5 Operating Performance Points
      1. 5.5.1 AVS and ABB Requirements
      2. 5.5.2 Voltage And Core Clock Specifications
      3. 5.5.3 Maximum Supported Frequency
    6. 5.6 Power Consumption Summary
    7. 5.7 Electrical Characteristics
      1. 5.7.1  LVCMOS DDR DC Electrical Characteristics
      2. 5.7.2  HDMIPHY DC Electrical Characteristics
      3. 5.7.3  Dual Voltage LVCMOS I2C DC Electrical Characteristics
      4. 5.7.4  IQ1833 Buffers DC Electrical Characteristics
      5. 5.7.5  IHHV1833 Buffers DC Electrical Characteristics
      6. 5.7.6  LVCMOS OSC Buffers DC Electrical Characteristics
      7. 5.7.7  LVCMOS CSI2 DC Electrical Characteristics
      8. 5.7.8  BMLB18 Buffers DC Electrical Characteristics
      9. 5.7.9  BC1833IHHV Buffers DC Electrical Characteristics
      10. 5.7.10 USBPHY DC Electrical Characteristics
      11. 5.7.11 Dual Voltage SDIO1833 DC Electrical Characteristics
      12. 5.7.12 Dual Voltage LVCMOS DC Electrical Characteristics
      13. 5.7.13 SATAPHY DC Electrical Characteristics
      14. 5.7.14 SERDES DC Electrical Characteristics
    8. 5.8 Thermal Characteristics
      1. 5.8.1 Package Thermal Characteristics
    9. 5.9 Power Supply Sequences
  6. Clock Specifications
    1. 6.1 Input Clock Specifications
      1. 6.1.1 Input Clock Requirements
      2. 6.1.2 System Oscillator OSC0 Input Clock
        1. 6.1.2.1 OSC0 External Crystal
        2. 6.1.2.2 OSC0 Input Clock
      3. 6.1.3 Auxiliary Oscillator OSC1 Input Clock
        1. 6.1.3.1 OSC1 External Crystal
        2. 6.1.3.2 OSC1 Input Clock
      4. 6.1.4 RTC Oscillator Input Clock
        1. 6.1.4.1 RTC Oscillator External Crystal
        2. 6.1.4.2 RTC Oscillator Input Clock
        3. 6.1.4.3 RC On-die Oscillator Clock
    2. 6.2 DPLLs, DLLs Specifications
      1. 6.2.1 DPLL Characteristics
      2. 6.2.2 DLL Characteristics
  7. Timing Requirements and Switching Characteristics
    1. 7.1  Timing Test Conditions
    2. 7.2  Interface Clock Specifications
      1. 7.2.1 Interface Clock Terminology
      2. 7.2.2 Interface Clock Frequency
    3. 7.3  Timing Parameters and Information
      1. 7.3.1 Parameter Information
        1. 7.3.1.1 1.8V and 3.3V Signal Transition Levels
        2. 7.3.1.2 1.8V and 3.3V Signal Transition Rates
        3. 7.3.1.3 Timing Parameters and Board Routing Analysis
    4. 7.4  Recommended Clock and Control Signal Transition Behavior
    5. 7.5  Virtual and Manual I/O Timing Modes
    6. 7.6  Video Input Ports (VIP)
    7. 7.7  Display Subsystem - Video Output Ports
    8. 7.8  Display Subsystem - High-Definition Multimedia Interface (HDMI)
    9. 7.9  Camera Serial Interface 2 CAL bridge (CSI2)
      1. 7.9.1 CSI-2 MIPI D-PHY
    10. 7.10 External Memory Interface (EMIF)
    11. 7.11 General-Purpose Memory Controller (GPMC)
      1. 7.11.1 GPMC/NOR Flash Interface Synchronous Timing
      2. 7.11.2 GPMC/NOR Flash Interface Asynchronous Timing
      3. 7.11.3 GPMC/NAND Flash Interface Asynchronous Timing
    12. 7.12 Timers
    13. 7.13 Inter-Integrated Circuit Interface (I2C)
      1. Table 7-33 Timing Requirements for I2C Input Timings
      2. Table 7-34 Timing Requirements for I2C HS-Mode (I2C3/4/5 Only)
      3. Table 7-35 Switching Characteristics Over Recommended Operating Conditions for I2C Output Timings
    14. 7.14 HDQ / 1-Wire Interface (HDQ1W)
      1. 7.14.1 HDQ / 1-Wire - HDQ Mode
      2. 7.14.2 HDQ/1-Wire-1-Wire Mode
    15. 7.15 Universal Asynchronous Receiver Transmitter (UART)
      1. Table 7-40 Timing Requirements for UART
      2. Table 7-41 Switching Characteristics Over Recommended Operating Conditions for UART
    16. 7.16 Multichannel Serial Peripheral Interface (McSPI)
    17. 7.17 Quad Serial Peripheral Interface (QSPI)
    18. 7.18 Multichannel Audio Serial Port (McASP)
      1. Table 7-48 Timing Requirements for McASP1
      2. Table 7-49 Timing Requirements for McASP2
      3. Table 7-50 Timing Requirements for McASP3/4/5/6/7/8
    19. 7.19 Universal Serial Bus (USB)
      1. 7.19.1 USB1 DRD PHY
      2. 7.19.2 USB2 PHY
    20. 7.20 Serial Advanced Technology Attachment (SATA)
    21. 7.21 Peripheral Component Interconnect Express (PCIe)
    22. 7.22 Controller Area Network Interface (DCAN)
      1. Table 7-65 Timing Requirements for DCANx Receive
      2. Table 7-66 Switching Characteristics Over Recommended Operating Conditions for DCANx Transmit
    23. 7.23 Ethernet Interface (GMAC_SW)
      1. 7.23.1 GMAC MII Timings
        1. Table 7-67 Timing Requirements for miin_rxclk - MII Operation
        2. Table 7-68 Timing Requirements for miin_txclk - MII Operation
        3. Table 7-69 Timing Requirements for GMAC MIIn Receive 10/100 Mbit/s
        4. Table 7-70 Switching Characteristics Over Recommended Operating Conditions for GMAC MIIn Transmit 10/100 Mbits/s
      2. 7.23.2 GMAC MDIO Interface Timings
      3. 7.23.3 GMAC RMII Timings
        1. Table 7-75 Timing Requirements for GMAC REF_CLK - RMII Operation
        2. Table 7-76 Timing Requirements for GMAC RMIIn Receive
        3. Table 7-77 Switching Characteristics Over Recommended Operating Conditions for GMAC REF_CLK - RMII Operation
        4. Table 7-78 Switching Characteristics Over Recommended Operating Conditions for GMAC RMIIn Transmit 10/100 Mbits/s
      4. 7.23.4 GMAC RGMII Timings
        1. Table 7-82 Timing Requirements for rgmiin_rxc - RGMIIn Operation
        2. Table 7-83 Timing Requirements for GMAC RGMIIn Input Receive for 10/100/1000 Mbps
        3. Table 7-84 Switching Characteristics Over Recommended Operating Conditions for rgmiin_txctl - RGMIIn Operation for 10/100/1000 Mbit/s
        4. Table 7-85 Switching Characteristics for GMAC RGMIIn Output Transmit for 10/100/1000 Mbps
    24. 7.24 eMMC/SD/SDIO
      1. 7.24.1 MMC1-SD Card Interface
        1. 7.24.1.1 Default speed, 4-bit data, SDR, half-cycle
        2. 7.24.1.2 High speed, 4-bit data, SDR, half-cycle
        3. 7.24.1.3 SDR12, 4-bit data, half-cycle
        4. 7.24.1.4 SDR25, 4-bit data, half-cycle
        5. 7.24.1.5 UHS-I SDR50, 4-bit data, half-cycle
        6. 7.24.1.6 UHS-I SDR104, 4-bit data, half-cycle
        7. 7.24.1.7 UHS-I DDR50, 4-bit data
      2. 7.24.2 MMC2 - eMMC
        1. 7.24.2.1 Standard JC64 SDR, 8-bit data, half cycle
        2. 7.24.2.2 High-speed JC64 SDR, 8-bit data, half cycle
        3. 7.24.2.3 High-speed HS200 JEDS84, 8-bit data, half cycle
        4. 7.24.2.4 High-speed JC64 DDR, 8-bit data
          1. Table 7-110 Switching Characteristics for MMC2 - JC64 High Speed DDR Mode
      3. 7.24.3 MMC3 and MMC4-SDIO/SD
        1. 7.24.3.1 MMC3 and MMC4, SD Default Speed
        2. 7.24.3.2 MMC3 and MMC4, SD High Speed
        3. 7.24.3.3 MMC3 and MMC4, SD and SDIO SDR12 Mode
        4. 7.24.3.4 MMC3 and MMC4, SD SDR25 Mode
        5. 7.24.3.5 MMC3 SDIO High-Speed UHS-I SDR50 Mode, Half Cycle
    25. 7.25 General-Purpose Interface (GPIO)
    26. 7.26 PRU-ICSS Interfaces
      1. 7.26.1 Programmable Real-Time Unit (PRU-ICSS PRU)
        1. 7.26.1.1 PRU-ICSS PRU Direct Input/Output Mode Electrical Data and Timing
          1. Table 7-132 PRU-ICSS PRU Timing Requirements - Direct Input Mode
          2. Table 7-133 PRU-ICSS PRU Switching Requirements - Direct Output Mode
        2. 7.26.1.2 PRU-ICSS PRU Parallel Capture Mode Electrical Data and Timing
          1. Table 7-134 PRU-ICSS PRU Timing Requirements - Parallel Capture Mode
        3. 7.26.1.3 PRU-ICSS PRU Shift Mode Electrical Data and Timing
          1. Table 7-135 PRU-ICSS PRU Timing Requirements - Shift In Mode
          2. Table 7-136 PRU-ICSS PRU Switching Requirements - Shift Out Mode
        4. 7.26.1.4 PRU-ICSS PRU Sigma Delta and EnDAT Modes
          1. Table 7-137 PRU-ICSS PRU Timing Requirements - Sigma Delta Mode
          2. Table 7-138 PRU-ICSS PRU Timing Requirements - EnDAT Mode
          3. Table 7-139 PRU-ICSS PRU Switching Requirements - EnDAT Mode
      2. 7.26.2 PRU-ICSS EtherCAT (PRU-ICSS ECAT)
        1. 7.26.2.1 PRU-ICSS ECAT Electrical Data and Timing
          1. Table 7-140 PRU-ICSS ECAT Timing Requirements - Input Validated With LATCH_IN
          2. Table 7-141 PRU-ICSS ECAT Timing Requirements - Input Validated With SYNCx
          3. Table 7-142 PRU-ICSS ECAT Timing Requirements - Input Validated With Start of Frame (SOF)
          4. Table 7-143 PRU-ICSS ECAT Timing Requirements - LATCHx_IN
          5. Table 7-144 PRU-ICSS ECAT Switching Requirements - Digital IOs
      3. 7.26.3 PRU-ICSS MII_RT and Switch
        1. 7.26.3.1 PRU-ICSS MDIO Electrical Data and Timing
          1. Table 7-145 PRU-ICSS MDIO Timing Requirements - MDIO_DATA
          2. Table 7-146 PRU-ICSS MDIO Switching Characteristics - MDIO_CLK
          3. Table 7-147 PRU-ICSS MDIO Switching Characteristics - MDIO_DATA
        2. 7.26.3.2 PRU-ICSS MII_RT Electrical Data and Timing
          1. Table 7-148 PRU-ICSS MII_RT Timing Requirements - MII[x]_RXCLK
          2. Table 7-149 PRU-ICSS MII_RT Timing Requirements - MII[x]_TXCLK
          3. Table 7-150 PRU-ICSS MII_RT Timing Requirements - MII_RXD[3:0], MII_RXDV, and MII_RXER
          4. Table 7-151 PRU-ICSS MII_RT Switching Characteristics - MII_TXD[3:0] and MII_TXEN
      4. 7.26.4 PRU-ICSS Universal Asynchronous Receiver Transmitter (PRU-ICSS UART)
        1. Table 7-152 Timing Requirements for PRU-ICSS UART Receive
        2. Table 7-153 Switching Characteristics Over Recommended Operating Conditions for PRU-ICSS UART Transmit
      5. 7.26.5 PRU-ICSS Manual Functional Mapping
    27. 7.27 System and Miscellaneous interfaces
    28. 7.28 Test Interfaces
      1. 7.28.1 IEEE 1149.1 Standard-Test-Access Port (JTAG)
        1. 7.28.1.1 JTAG Electrical Data/Timing
          1. Table 7-173 Timing Requirements for IEEE 1149.1 JTAG
          2. Table 7-174 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG
          3. Table 7-175 Timing Requirements for IEEE 1149.1 JTAG With RTCK
          4. Table 7-176 Switching Characteristics Over Recommended Operating Conditions for IEEE 1149.1 JTAG With RTCK
      2. 7.28.2 Trace Port Interface Unit (TPIU)
        1. 7.28.2.1 TPIU PLL DDR Mode
  8. Applications, Implementation, and Layout
    1. 8.1 Power Supply Mapping
    2. 8.2 DDR3 Board Design and Layout Guidelines
      1. 8.2.1 DDR3 General Board Layout Guidelines
      2. 8.2.2 DDR3 Board Design and Layout Guidelines
        1. 8.2.2.1  Board Designs
        2. 8.2.2.2  DDR3 EMIF
        3. 8.2.2.3  DDR3 Device Combinations
        4. 8.2.2.4  DDR3 Interface Schematic
          1. 8.2.2.4.1 32-Bit DDR3 Interface
          2. 8.2.2.4.2 16-Bit DDR3 Interface
        5. 8.2.2.5  Compatible JEDEC DDR3 Devices
        6. 8.2.2.6  PCB Stackup
        7. 8.2.2.7  Placement
        8. 8.2.2.8  DDR3 Keepout Region
        9. 8.2.2.9  Bulk Bypass Capacitors
        10. 8.2.2.10 High-Speed Bypass Capacitors
          1. 8.2.2.10.1 Return Current Bypass Capacitors
        11. 8.2.2.11 Net Classes
        12. 8.2.2.12 DDR3 Signal Termination
        13. 8.2.2.13 VREF_DDR Routing
        14. 8.2.2.14 VTT
        15. 8.2.2.15 CK and ADDR_CTRL Topologies and Routing Definition
          1. 8.2.2.15.1 Four DDR3 Devices
            1. 8.2.2.15.1.1 CK and ADDR_CTRL Topologies, Four DDR3 Devices
            2. 8.2.2.15.1.2 CK and ADDR_CTRL Routing, Four DDR3 Devices
          2. 8.2.2.15.2 Two DDR3 Devices
            1. 8.2.2.15.2.1 CK and ADDR_CTRL Topologies, Two DDR3 Devices
            2. 8.2.2.15.2.2 CK and ADDR_CTRL Routing, Two DDR3 Devices
          3. 8.2.2.15.3 One DDR3 Device
            1. 8.2.2.15.3.1 CK and ADDR_CTRL Topologies, One DDR3 Device
            2. 8.2.2.15.3.2 CK and ADDR/CTRL Routing, One DDR3 Device
        16. 8.2.2.16 Data Topologies and Routing Definition
          1. 8.2.2.16.1 DQS and DQ/DM Topologies, Any Number of Allowed DDR3 Devices
          2. 8.2.2.16.2 DQS and DQ/DM Routing, Any Number of Allowed DDR3 Devices
        17. 8.2.2.17 Routing Specification
          1. 8.2.2.17.1 CK and ADDR_CTRL Routing Specification
          2. 8.2.2.17.2 DQS and DQ Routing Specification
    3. 8.3 High Speed Differential Signal Routing Guidance
    4. 8.4 Power Distribution Network Implementation Guidance
    5. 8.5 Thermal Solution Guidance
    6. 8.6 Single-Ended Interfaces
      1. 8.6.1 General Routing Guidelines
      2. 8.6.2 QSPI Board Design and Layout Guidelines
    7. 8.7 LJCB_REFN/P Connections
    8. 8.8 Clock Routing Guidelines
      1. 8.8.1 32-kHz Oscillator Routing
      2. 8.8.2 Oscillator Ground Connection
  9. Device and Documentation Support
    1. 9.1 Device Nomenclature
      1. 9.1.1 Standard Package Symbolization
      2. 9.1.2 Device Naming Convention
    2. 9.2 Tools and Software
    3. 9.3 Documentation Support
    4. 9.4 Receiving Notification of Documentation Updates
    5. 9.5 Related Links
    6. 9.6 Community Resources
    7. 9.7 Trademarks
    8. 9.8 静电放电警告
    9. 9.9 术语表
  10. 10Mechanical Packaging and Orderable Information
    1. 10.1 Mechanical Data

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Table 7-50 Timing Requirements for McASP3/4/5/6/7/8(1)

NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
1 tc(AHCLKX) Cycle time, AHCLKX 20 ns
2 tw(AHCLKX) Pulse duration, AHCLKX high or low 0.35P (2) ns
3 tc(ACLKRX) Cycle time, ACLKR/X 20 ns
4 tw(ACLKRX) Pulse duration, ACLKR/X high or low 0.5R - 3 (3) ns
5 tsu(AFSRX-ACLK) Setup time, AFSR/X input valid before ACLKR/X ACLKR/X int 19.7 ns
ACLKR/X ext in
ACLKR/X ext out
5.6 ns
6 th(ACLK-AFSRX) Hold time, AFSR/X input valid after ACLKR/X ACLKR/X int -1.1 ns
ACLKR/X ext in
ACLKR/X ext out
2.5 ns
tsu(AXR-ACLK) Setup time, AXR input valid before ACLKX ACLKX int (ASYNC=0) 20.3 ns
ACLKR/X ext in
ACLKR/X ext out
5.1 ns
8 th(ACLK-AXR) Hold time, AXR input valid after ACLKX ACLKX int (ASYNC=0) -0.8 ns
ACLKR/X ext in
ACLKR/X ext out
2.5 ns
  1. ACLKR internal: ACLKRCTL.CLKRM=1, PDIR.ACLKR = 1 (NOT SUPPORTED)
    ACLKR external input: ACLKRCTL.CLKRM=0, PDIR.ACLKR=0
    ACLKR external output: ACLKRCTL.CLKRM=0, PDIR.ACLKR=1
    ACLKX internal: ACLKXCTL.CLKXM=1, PDIR.ACLKX = 1
    ACLKX external input: ACLKXCTL.CLKXM=0, PDIR.ACLKX=0
    ACLKX external output: ACLKXCTL.CLKXM=0, PDIR.ACLKX=1
  2. P = AHCLKX period in ns.
  3. R = ACLKR/X period in ns.

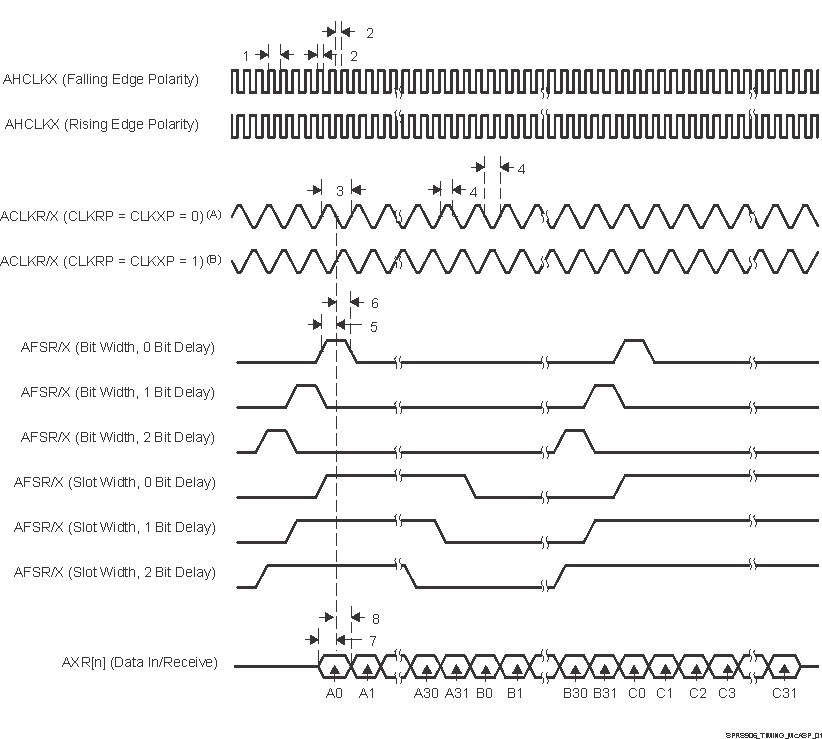

AM5718 AM5716 SPRS906_TIMING_McASP_01.gif
For CLKRP = CLKXP = 0, the McASP transmitter is configured for rising edge (to shift data out) and the McASP receiver is configured for falling edge (to shift data in).
For CLKRP = CLKXP = 1, the McASP transmitter is configured for falling edge (to shift data out) and the McASP receiver is configured for rising edge (to shift data in).
Figure 7-41 McASP Input Timing

Table 7-51, Table 7-52, Table 7-53 and Figure 7-42 present Switching Characteristics Over Recommended Operating Conditions for McASP1 to McASP8.

Table 7-51 Switching Characteristics Over Recommended Operating Conditions for McASP1(1)

NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
9 tc(AHCLKX) Cycle time, AHCLKX 20 ns
10 tw(AHCLKX) Pulse duration, AHCLKX high or low 0.5P - 2.5 (2) ns
11 tc(ACLKRX) Cycle time, ACLKR/X 20 ns
12 tw(ACLKRX) Pulse duration, ACLKR/X high or low 0.5P - 2.5 (3) ns
13 td(ACLK-AFSXR) Delay time, ACLKR/X transmit edge to AFSX/R output valid ACLKR/X int -0.9 6 ns
ACLKR/X ext in
ACLKR/X ext out
2 23.1 ns
14 td(ACLK-AXR) Delay time, ACLKR/X transmit edge to AXR output valid ACLKR/X int -1.4 6 ns
ACLKR/X ext in
ACLKR/X ext out
2 24.2 ns

Table 7-52 Switching Characteristics Over Recommended Operating Conditions for McASP2 (1)

NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
9 tc(AHCLKX) Cycle time, AHCLKX 20 ns
10 tw(AHCLKX) Pulse duration, AHCLKX high or low 0.5P - 2.5 (2) ns
11 tc(ACLKRX) Cycle time, ACLKR/X 20 ns
12 tw(ACLKRX) Pulse duration, ACLKR/X high or low 0.5P - 2.5 (3) ns
13 td(ACLK-AFSXR) Delay time, ACLKR/X transmit edge to AFSX/R output valid ACLKR/X int -1 6 ns
ACLKR/X ext in
ACLKR/X ext out
2 23.2 ns
14 td(ACLK-AXR) Delay time, ACLKR/X transmit edge to AXR output valid ACLKR/X int -1.3 6 ns
ACLKR/X ext in
ACLKR/X ext out
2 23.7 ns

Table 7-53 Switching Characteristics Over Recommended Operating Conditions for McASP3/4/5/6/7/8(1)

NO. PARAMETER DESCRIPTION MODE MIN MAX UNIT
9 tc(AHCLKX) Cycle time, AHCLKX 20 ns
10 tw(AHCLKX) Pulse duration, AHCLKX high or low 0.5P - 2.5 (2) ns
11 tc(ACLKRX) Cycle time, ACLKR/X 20 ns
12 tw(ACLKRX) Pulse duration, ACLKR/X high or low 0.5P - 2.5 (3) ns
13 td(ACLK-AFSXR) Delay time, ACLKR/X transmit edge to AFSX/R output valid ACLKR/X int -0.5 6 ns
ACLKR/X ext in
ACLKR/X ext out
1.9 24.5 ns
14 td(ACLK-AXR) Delay time, ACLKR/X transmit edge to AXR output valid ACLKR/X int -1.4 7.1 ns
ACLKR/X ext in
ACLKR/X ext out
1.1 24.2 ns

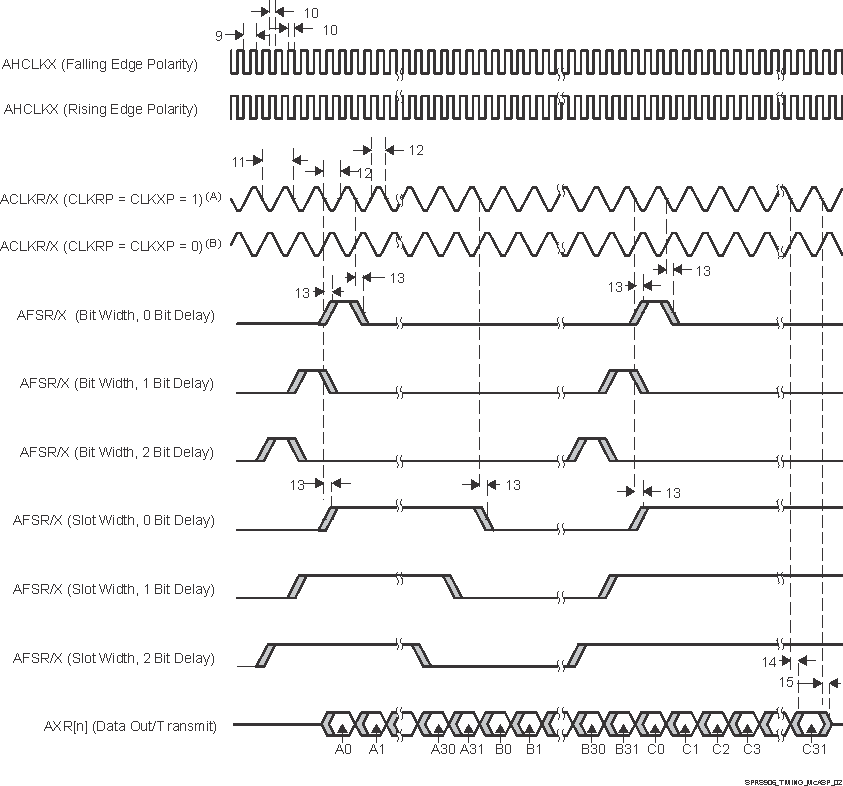

AM5718 AM5716 SPRS906_TIMING_McASP_02.gif
For CLKRP = CLKXP = 1, the McASP transmitter is configured for falling edge (to shift data out) and the McASP receiver is configured for rising edge (to shift data in).
For CLKRP = CLKXP = 0, the McASP transmitter is configured for rising edge (to shift data out) and the McASP receiver is configured for falling edge (to shift data in).
Figure 7-42 McASP Output TimingAB

Table 7-54 through Table 7-61 explain all cases with Virtual Mode Details for McASP1/2/3/4/5/6/7/8 (see Figure 7-43 through Figure 7-50).

Table 7-54 Virtual Mode Case Details for McASP1

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC

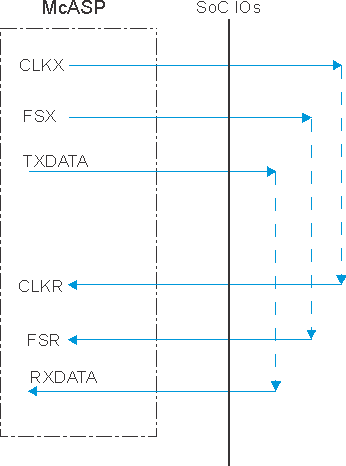

1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL2_ASYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP1_VIRTUAL2_ASYNC_RX

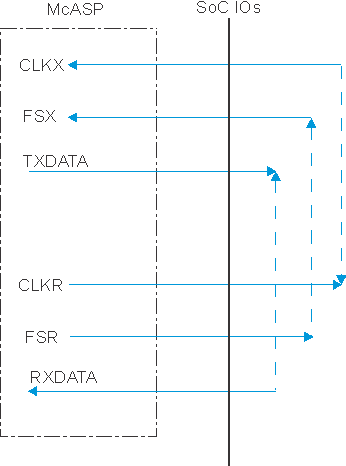

3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL2_ASYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL2_ASYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

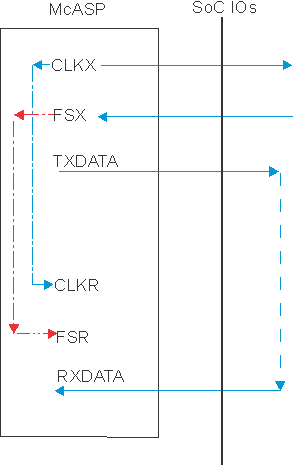

6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP1_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP1_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP1_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-55 Virtual Mode Case Details for McASP2

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode)(1) See Figure 7-43
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)(1)
AXR(Inputs)/CLKR/FSR MCASP2_VIRTUAL4_ASYNC_RX_80M (2)
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP2_VIRTUAL2_ASYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL2_ASYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL2_ASYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR Default (No Virtual Mode)
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX(1) See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL3_SYNC_RX(1)
AXR(Inputs)/CLKX/FSX MCASP2_VIRTUAL1_SYNC_RX_80M(2)
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
  1. Used up to 50MHz. Should also be used in a CI-FI- mixed case where AXR operate as both inputs and outputs (that is, AXR are bidirectional).
  2. Used in 80MHz input only mode when AXR, CLKX and FSX are all inputs.

Table 7-56 Virtual Mode Case Details for McASP3

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP3_VIRTUAL2_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP3_VIRTUAL2_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-57 Virtual Mode Case Details for McASP4

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP4_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP4_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-58 Virtual Mode Case Details for McASP5

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP5_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP5_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-59 Virtual Mode Case Details for McASP6

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP6_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP6_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-60 Virtual Mode Case Details for McASP7

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP7_VIRTUAL2_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP7_VIRTUAL2_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)

Table 7-61 Virtual Mode Case Details for McASP8

No. CASE CASE Description Virtual Mode Settings Notes
Signals Virtual Mode Value
IP Mode : ASYNC
1 COIFOI CLKX / FSX: Output CLKR / FSR: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-43
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
2 COIFIO CLKX / FSR: Output CLKR / FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-44
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
3 CIOFIO CLKR / FSR: Output CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-45
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
4 CIOFOI CLKR / FSX: Output CLKX / FSR: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-46
AXR(Inputs)/CLKR/FSR MCASP8_VIRTUAL1_SYNC_RX
IP Mode : SYNC (CLKR / FSR internally generated from CLKX / FSX)
5 CO-FO- CLKX / FSX: Output AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-47
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
6 CI-FO- FSX: Output CLKX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-48
AXR(Inputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX
7 CI-FI- CLKX / FSX: Input AXR(Outputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX See Figure 7-49
AXR(Inputs)/CLKX/FSX MCASP8_VIRTUAL1_SYNC_RX
8 CO-FI- CLKX: Output FSX: Input AXR(Outputs)/CLKX/FSX Default (No Virtual Mode) See Figure 7-50
AXR(Inputs)/CLKX/FSX Default (No Virtual Mode)
AM5718 AM5716 SPRS906_MCASP_uc_01.gifFigure 7-43 McASP1-8 COIFOI - ASYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_02.gifFigure 7-44 McASP1-8 COIFIO - ASYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_03.gifFigure 7-45 McASP1-8 CIOFIO - ASYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_04.gifFigure 7-46 McASP1-8 CIOFOI - ASYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_05.gifFigure 7-47 McASP1-8 CO-FO- - SYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_06.gifFigure 7-48 McASP1-8 CI-FO- - SYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_07.gifFigure 7-49 McASP1-8 CI-FI- - SYNC Mode
AM5718 AM5716 SPRS906_MCASP_uc_08.gifFigure 7-50 McASP1-8 CO-FI- - SYNC Mode

NOTE

To configure the desired virtual mode the user must set MODESELECT bit and DELAYMODE bitfield for each corresponding pad control register.

The pad control registers are presented in Table 4-3 and described in Device TRM, Control Module Chapter.

CAUTION

The I/O Timings provided in this section are valid only for some McASP usage modes when the corresponding Virtual I/O Timings or Manual I/O Timings are configured as described in the tables found in this section.

Virtual IO Timings Modes must be used to guaranteed some IO timings for McASP1. See Table 7-2, Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-62, Virtual Functions Mapping for McASP1 for a definition of the Virtual modes.

Table 7-62 presents the values for DELAYMODE bitfield.

Table 7-62 Virtual Functions Mapping for McASP1

BALL BALL NAME Delay Mode Value MUXMODE
MCASP1_VIRTUAL1_SYNC_RX MCASP1_VIRTUAL2_ASYNC_RX 0 1 2
C14 mcasp1_aclkx 15 14 mcasp1_aclkx
E21 gpio6_14 14 13 mcasp1_axr8
A13 mcasp1_axr13 15 14 mcasp1_axr13
E12 mcasp1_axr4 14 13 mcasp1_axr4
B26 xref_clk2 14 13 mcasp1_axr6
A11 mcasp1_axr9 15 14 mcasp1_axr9
D12 mcasp1_axr7 14 13 mcasp1_axr7
E14 mcasp1_axr12 15 14 mcasp1_axr12
F21 gpio6_16 14 13 mcasp1_axr10
F20 gpio6_15 14 13 mcasp1_axr9
C23 xref_clk3 14 13 mcasp1_axr7
C12 mcasp1_axr6 14 13 mcasp1_axr6
B13 mcasp1_axr10 15 14 mcasp1_axr10
J14 mcasp1_fsr N/A 14 mcasp1_fsr
B12 mcasp1_axr8 15 14 mcasp1_axr8
A12 mcasp1_axr11 15 14 mcasp1_axr11
G13 mcasp1_axr2 14 13 mcasp1_axr2
D14 mcasp1_fsx 15 14 mcasp1_fsx
G14 mcasp1_axr14 15 14 mcasp1_axr14
F14 mcasp1_axr15 15 14 mcasp1_axr15
F12 mcasp1_axr1 15 14 mcasp1_axr1
B14 mcasp1_aclkr N/A 14 mcasp1_aclkr
F13 mcasp1_axr5 14 13 mcasp1_axr5
E17 xref_clk1 15 14 mcasp1_axr5
G12 mcasp1_axr0 15 14 mcasp1_axr0
J11 mcasp1_axr3 14 13 mcasp1_axr3
D18 xref_clk0 15 14 mcasp1_axr4

Virtual IO Timings Modes must be used to guaranteed some IO timings for McASP2. See Table 7-2, Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-63, Virtual Functions Mapping for McASP2 for a definition of the Virtual modes.

Table 7-63 presents the values for DELAYMODE bitfield.

Table 7-63 Virtual Functions Mapping for McASP2

BALL BALL NAME Delay Mode Value MUXMODE
MCASP2_VIRTUAL1
_SYNC_RX_80M
MCASP2_VIRTUAL2
_ASYNC_RX
MCASP2_VIRTUAL3
_SYNC_RX
MCASP2_VIRTUAL4
_ASYNC_RX_80M
0 1 2
B19 mcasp3_axr0 15 14 10 9 mcasp2_axr14
B17 mcasp2_axr6 14 13 12 11 mcasp2_axr6
B16 mcasp2_axr5 14 13 12 11 mcasp2_axr5
A18 mcasp2_fsx 15 14 10 9 mcasp2_fsx
B26 xref_clk2 12 11 10 9 mcasp2_axr10
A16 mcasp2_axr3 15 14 10 9 mcasp2_axr3
E15 mcasp2_aclkr N/A 14 N/A 13 mcasp2_aclkr
B18 mcasp3_aclkx 15 14 10 9 mcasp2_axr12
A19 mcasp2_aclkx 15 14 10 9 mcasp2_aclkx
A17 mcasp2_axr7 14 13 12 11 mcasp2_axr7
C23 xref_clk3 12 11 10 9 mcasp2_axr11
C17 mcasp3_axr1 15 14 10 8 mcasp2_axr15
F15 mcasp3_fsx 15 14 10 9 mcasp2_axr13
C15 mcasp2_axr2 15 14 10 9 mcasp2_axr2
D15 mcasp2_axr4 14 13 12 11 mcasp2_axr4
A20 mcasp2_fsr N/A 14 N/A 13 mcasp2_fsr
E17 xref_clk1 10 9 8 6 mcasp2_axr9
A15 mcasp2_axr1 14 13 12 11 mcasp2_axr1
B15 mcasp2_axr0 14 13 12 11 mcasp2_axr0
D18 xref_clk0 10 9 8 6 mcasp2_axr8

Virtual IO Timings Modes must be used to guaranteed some IO timings for McASP3/4/5/6/7/8. See Table 7-2, Modes Summary for a list of IO timings requiring the use of Virtual IO Timings Modes. See Table 7-64, Virtual Functions Mapping for McASP3/4/5/6/7/8 for a definition of the Virtual modes.

Table 7-64 presents the values for DELAYMODE bitfield.

Table 7-64 Virtual Functions Mapping for McASP3/4/5/6/7/8

BALL BALL NAME Delay Mode Value MUXMODE
0 1 2
MCASP3_VIRTUAL2_SYNC_RX
A16 mcasp2_axr3 8 mcasp3_axr3
B18 mcasp3_aclkx 8 mcasp3_aclkx mcasp3_aclkr
B19 mcasp3_axr0 8 mcasp3_axr0
C17 mcasp3_axr1 6 mcasp3_axr1
F15 mcasp3_fsx 8 mcasp3_fsx mcasp3_fsr
C15 mcasp2_axr2 8 mcasp3_axr2
MCASP4_VIRTUAL1_SYNC_RX
A21 mcasp4_fsx 14 mcasp4_fsx mcasp4_fsr
C18 mcasp4_aclkx 14 mcasp4_aclkx mcasp4_aclkr
G16 mcasp4_axr0 14 mcasp4_axr0
D17 mcasp4_axr1 14 mcasp4_axr1
F13 mcasp1_axr5 12 mcasp4_axr3
E12 mcasp1_axr4 12 mcasp4_axr2
MCASP5_VIRTUAL1_SYNC_RX
AA3 mcasp5_aclkx 14 mcasp5_aclkx mcasp5_aclkr
AB9 mcasp5_fsx 14 mcasp5_fsx mcasp5_fsr
AA4 mcasp5_axr1 14 mcasp5_axr1
C12 mcasp1_axr6 12 mcasp5_axr2
AB3 mcasp5_axr0 14 mcasp5_axr0
D12 mcasp1_axr7 12 mcasp5_axr3
MCASP6_VIRTUAL1_SYNC_RX
G13 mcasp1_axr2 12 mcasp6_axr2
J11 mcasp1_axr3 12 mcasp6_axr3
B13 mcasp1_axr10 10 mcasp6_aclkx mcasp6_aclkr
A11 mcasp1_axr9 10 mcasp6_axr1
B12 mcasp1_axr8 10 mcasp6_axr0
A12 mcasp1_axr11 10 mcasp6_fsx mcasp6_fsr
MCASP7_VIRTUAL2_SYNC_RX
E14 mcasp1_axr12 10 mcasp7_axr0
F14 mcasp1_axr15 10 mcasp7_fsx mcasp7_fsr
G14 mcasp1_axr14 10 mcasp7_aclkx mcasp7_aclkr
A13 mcasp1_axr13 10 mcasp7_axr1
B14 mcasp1_aclkr 13 mcasp7_axr2
J14 mcasp1_fsr 13 mcasp7_axr3
MCASP8_VIRTUAL1_SYNC_RX
D15 mcasp2_axr4 10 mcasp8_axr0
A17 mcasp2_axr7 10 mcasp8_fsx mcasp8_fsr
B17 mcasp2_axr6 10 mcasp8_aclkx mcasp8_aclkr
A20 mcasp2_fsr 12 mcasp8_axr3
B16 mcasp2_axr5 10 mcasp8_axr1
E15 mcasp2_aclkr 12 mcasp8_axr2
