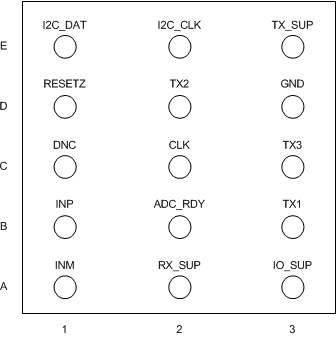

6 Pin Configuration and Functions

YZP Package
15-Ball DSBGA
Bottom View
AFE4404 po_sbas689.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
ADC_RDY B2 Digital ADC ready interrupt signal (output)
CLK C2 Digital Clock input or output, selectable based on register. Default is input (external clock mode). Can be set via a register to output the clock when the oscillator is enabled.(3)(2)
DNC C1 Do not connect (leave floating)
GND D3 Ground Common ground for transmitter and receiver
I2C_CLK E2 Digital I2C clock input, external pullup resistor to IO_SUP (for example, 10 kΩ)
I2C_DAT E1 Digital I2C data, external pullup resistor to IO_SUP (for example, 10 kΩ)
INM A1 Analog Connect only to anode of photodiode(1)
INP B1 Analog Connect only to cathode of photodiode(1)
IO_SUP A3 Supply Separate supply for digital I/O. Must be less than or equal to RX_SUP.
Can be tied to RX_SUP.
RESETZ D1 Digital RESETZ or PWDN: function based on (active low) duration of RESETZ pulse(4).
A 25-µs to 50-µs duration = RESETZ active.
A > 200-µs duration = PWDN active.
RX_SUP A2 Supply Receiver supply; 1-µF decapacitor to GND
TX1 B3 Analog Transmit output, LED1
TX2 D2 Analog Transmit output, LED2
TX3 C3 Analog Transmit output, LED3
TX_SUP E3 Supply Transmitter supply; 1-µF decapacitor to GND
(1) Maintain the indicated polarity of photodiode connections to the AFE input pins.
(2) In both hardware power-down (PWDN) and software power-down (PDNAFE) modes, the CLK pin is driven by the AFE to 0 V. Therefore, if operating in external clock mode, take care to shut off the external clock to the AFE when in these power-down modes.
(3) Depending on whether external clock mode or internal oscillator mode is used, extra series or shunt resistors are recommended on the CLK pin. For more details, see the Typical Application section.
(4) A RESET pulse must be applied after power-up to ensure that the registers are all reset to their default values.
