7.7 Timing Requirements: Supply Ramp and Power-Down

PARAMETERVALUE
t1Time between Rx and Tx supplies ramping upKeep as small as possible (for example, ±10 ms)
t2Time between both supplies stabilizing and high-going RESET edge> 100 ms
t3RESET pulse duration> 0.5 ms
t4Time between RESET and SPI commands> 1 µs
t5Time between SPI commands and the ADC_ RESET which corresponds to valid data> 3 ms of cumulative sampling time in each phase(1)(2)(3)
t6Time between RESET pulse and high-accuracy data coming out of the signal chain> 1 s(3)
t7Time from AFE_ PDN high-going edge and RESET pulse(4)> 100 ms
t8Time from AFE_ PDN high-going edge (or PDN_AFE bit reset) to high-accuracy data coming out of the signal chain> 1 s(3)
(1) This time is required for each of the four switched RC filters to fully settle to the new settings. The same time is applicable whenever there is a change to any of the signal chain controls (for example, LED current setting, TIA gain, and so forth).
(2) If the SPI commands involve a change in the TX_REF value from its default, then there is additional wait time of approximately 1 s (for a 2.2-µF decoupling capacitor on the TX_REF pin).
(3) Dependent on the value of the capacitors on the BG and TX_REF pins. The 1-s wait time is necessary when the capacitors are 2.2 µF and scale down proportionate to the capacitor value. A very low capacitor (for example, 0.1 µF) on these pins causes the transmitter dynamic range to reduce to approximately 100 dB.
(4) After an active power-down from AFE_ PDN, the device should be reset using a low-going RESET pulse.
GUID-8E7AE590-B2E6-439B-8415-B4365BD20404-low.gifFigure 7-3 Supply Ramp and Hardware Power-Down Timing

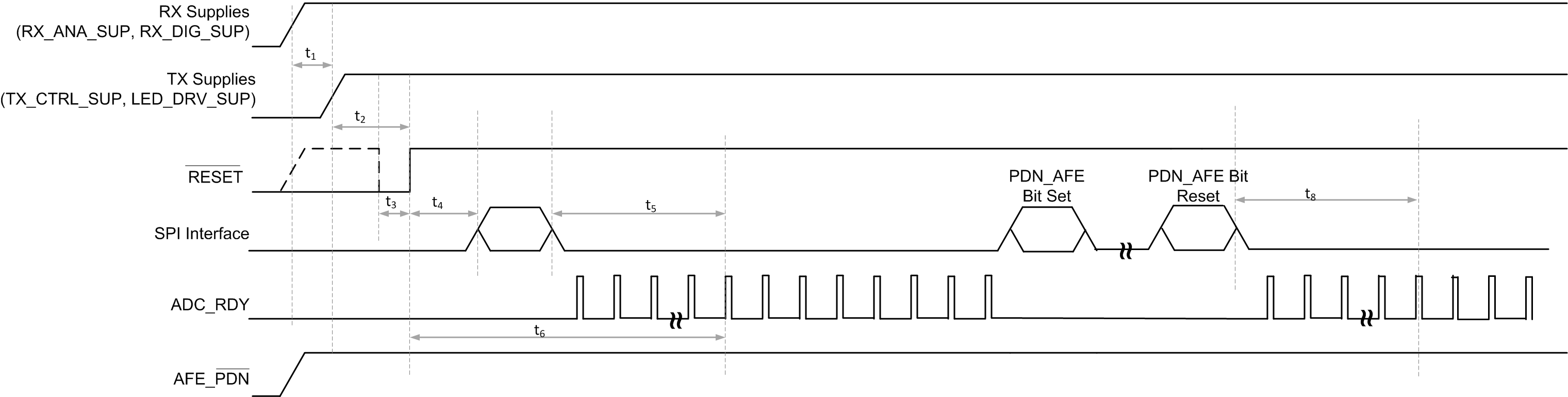

GUID-19D1B5C5-DA12-46D5-B00D-19E7087DBA49-low.gifFigure 7-4 Supply Ramp and Software Power-Down Timing
