Legacy, SPI-Compatible Protocols (SPI-xy-S-SDR)

The device supports legacy, SPI-compatible protocols with all combinations of clock phase and polarity. In this data transfer protocol, the device provides data from ADC_A on SDO-0A and data from ADC_B on SDO-0B. On power-up or after reset, the device supports the SPI-00-S-SDR protocol for reading data from the device. Table 3 provides the details of different legacy SPI protocols to read data from the device.

Table 3. SPI-xy-S-SDR Protocols for Reading From Device

PROTOCOL(3) SCLK POLARITY (CPOL(4)) SCLK PHASE (CPHA(4))(1)(2) MSB LAUNCH EDGE BUS WIDTH tREAD(5)(6) TIMING DIAGRAM
SPI-00-S-SDR Low (CPOL= 0) Rising (CPHA = 0) CS falling 1 [15.5 × tCLK + k] Figure 47
SPI-01-S-SDR Low (CPOL= 0) Falling (CPHA = 1) 1st SCLK rising 1 [15.5 × tCLK + k] Figure 48
SPI-10-S-SDR High (CPOL= 1) Falling (CPHA = 0) CS falling 1 [15.5 × tCLK + k] Figure 47
SPI-11-S-SDR High (CPOL= 1) Rising (CPHA = 1) 1st SCLK falling 1 [15.5 × tCLK + k] Figure 48
With SCLK ≥ 30 MHz, TI recommends data capture on the launch edge for the next bit.
With SCLK < 30 MHz, data can be captured either on the same edge as the SCLK phase or on the launch edge for the next bit.
For legacy SPI-compatible protocols, set the SDO_PROTOCOL bits in PROTOCOL_CFG register to 000b.
Configure the SPI_CPOL and SPI_CPHA bits in the PROTOCOL_CFG register for the desired CPOL and CPHA.
tREAD is the read time for reading the 16-bit output data word. k = (tSU_CSCK + tHT_CKCS).
For ADS9234R devices, the read time for reading the 14-bit output data word is [13.5 × tCLK + k].

Figure 47 and Figure 48 show timing diagrams for the SPI-00-S-SDR, SPI-10-SDR and SPI-01-S-SDR, SPI-11-SDR protocols, respectively.

ADS9224R ADS9234R SPI-x0-S-SDR-SBAS876.gifFigure 47. SPI-00-S-SDR and SPI-10-S-SDR Protocols

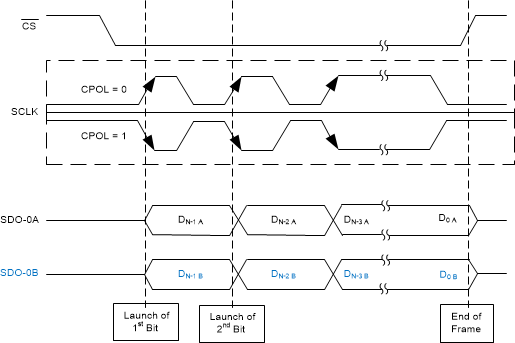

ADS9224R ADS9234R SPI-x1-S-SDR-SBAS876.gifFigure 48. SPI-01-S-SDR and SPI-11-S-SDR Protocols
