7 Parameter Measurement Information

7.1 Digital Voltage Levels

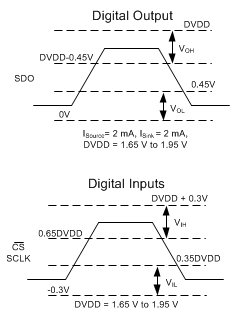

The device complies with the JESD8-7A standard for DVDD from 1.65 V to 1.95 V. Figure 35 shows voltage levels for the digital input and output pins.

ADS7056 tim_level_bas608.gif Figure 35. Digital Voltage Levels as per the JESD8-7A Standard
