ZHCSD06 November   2014 ADS58J89

PRODUCTION DATA.

  1. 1 特性
  2. 2 应用
  3. 3 说明
  4. 4 修订历史记录
  5. 5 Pin Configuration and Functions
  6. 6 Specifications
    1. 6.1  Absolute Maximum Ratings
    2. 6.2  Handling Ratings
    3. 6.3  Recommended Operating Conditions
    4. 6.4  Thermal Information
    5. 6.5  Electrical Characteristics
    6. 6.6  Electrical Characteristics: 250 MSPS Output, 2x Decimation Filter
    7. 6.7  Electrical Characteristics: 500 MSPS Output
    8. 6.8  Electrical Characteristics: Sample Clock Timing Characteristics
    9. 6.9  Electrical Characteristics: Digital Outputs
    10. 6.10 Timing Requirements
    11. 6.11 Reset Timing
    12. 6.12 Typical Characteristics
  7. 7 Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1  Decimation by 2 (250 MSPS Output)
      2. 7.3.2  Over-Range Indication
      3. 7.3.3  JESD204B Interface
        1. 7.3.3.1 JESD204B Initial Lane Alignment (ILA)
        2. 7.3.3.2 JESD204B Test Patterns
        3. 7.3.3.3 JESD204B Frame Assembly
      4. 7.3.4  SYSREF Clocking Schemes
      5. 7.3.5  Split-Mode Operation
      6. 7.3.6  Eye Diagram Information
      7. 7.3.7  Analog Inputs
      8. 7.3.8  Clock Inputs
      9. 7.3.9  Input Clock Divider
      10. 7.3.10 Power-Down Control
      11. 7.3.11 Device Configuration
      12. 7.3.12 JESD204B Interface Initialization Sequence
      13. 7.3.13 Device and Register Initialization
    4. 7.4 Device Functional Modes
      1. 7.4.1 Operating Modes
      2. 7.4.2 Mode Configuration
      3. 7.4.3 Output Format
      4. 7.4.4 Burst Mode of Every Other Sample (250 MSPS Output)
      5. 7.4.5 SNR Boost (500 MSPS Output)
      6. 7.4.6 Burst Mode
        1. 7.4.6.1 Burst Mode Counters
        2. 7.4.6.2 Burst Mode
        3. 7.4.6.3 TDD Burst Mode
        4. 7.4.6.4 Trigger Input
        5. 7.4.6.5 Manual Trigger Mode
        6. 7.4.6.6 Auto Trigger Mode
        7. 7.4.6.7 TDD-Burst Mode
          1. 7.4.6.7.1 TDD Burst Mode Examples
    5. 7.5 Programming
      1. 7.5.1 Serial Register Write
      2. 7.5.2 Serial Register Readout
    6. 7.6 Register Maps
      1. 7.6.1 Register Descriptions
        1. 7.6.1.1  Register Address 0
        2. 7.6.1.2  Register Address 1
        3. 7.6.1.3  Register Address 2
        4. 7.6.1.4  Register Address 3
        5. 7.6.1.5  Register Address 4
        6. 7.6.1.6  Register Address 5
        7. 7.6.1.7  Register Address 6
        8. 7.6.1.8  Register Address 7
        9. 7.6.1.9  Register Address 8
        10. 7.6.1.10 Register Address 12
        11. 7.6.1.11 Register Address 13
        12. 7.6.1.12 Register Address 14
        13. 7.6.1.13 Register Address 15
        14. 7.6.1.14 Register Address 16
        15. 7.6.1.15 Register Address 19
        16. 7.6.1.16 Register Address 22
        17. 7.6.1.17 Register Address 23
        18. 7.6.1.18 Register Address 26
        19. 7.6.1.19 Register Address 29
        20. 7.6.1.20 Register Address 30
        21. 7.6.1.21 Register Address 31
        22. 7.6.1.22 Register Address 32
        23. 7.6.1.23 Register Address 33
        24. 7.6.1.24 Address: 0x24, 0x25, 0x26, 0x27
        25. 7.6.1.25 Address: 0x28, 0x29, 0x2A, 0x2B
        26. 7.6.1.26 Register Address 44
        27. 7.6.1.27 Register Address 45
        28. 7.6.1.28 Register Address 46
        29. 7.6.1.29 Register Address 47
        30. 7.6.1.30 Address: 0x32, 0x33, 0x34, 0x35
        31. 7.6.1.31 Address: 0x36, 0x37, 0x38, 0x39
        32. 7.6.1.32 Register Address 58
        33. 7.6.1.33 Register Address 59
        34. 7.6.1.34 Register Address 60
        35. 7.6.1.35 Register Address 61
        36. 7.6.1.36 Register Address 99
        37. 7.6.1.37 Register Address 100
        38. 7.6.1.38 Register Address 103
        39. 7.6.1.39 Register Address 104
        40. 7.6.1.40 Register Address 107
        41. 7.6.1.41 Register Address 108
        42. 7.6.1.42 Register Address 111
  8. 8 Application and Implementation
    1. 8.1 Application Information
      1. 8.1.1 SNR and Clock Jitter
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
      3. 8.2.3 Application Curves
  9. 9 Power Supply Recommendations
  10. 10Layout
    1. 10.1 Layout Guidelines
      1. 10.1.1 CML SerDes Transmitter Interface
    2. 10.2 Layout Example
  11. 11器件和文档支持
    1. 11.1 商标
    2. 11.2 静电放电警告
    3. 11.3 术语表
  12. 12机械封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

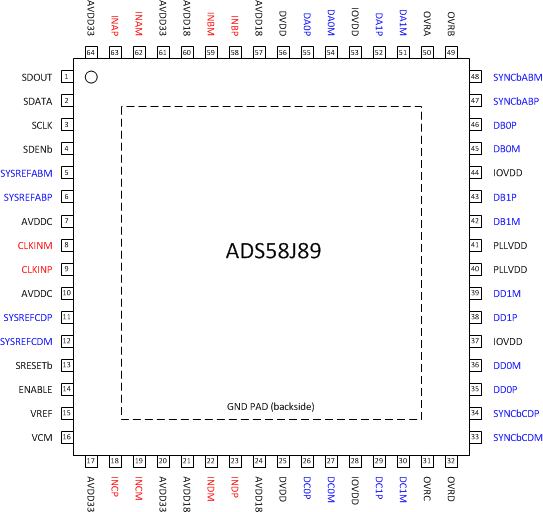

5 Pin Configuration and Functions


Pin Functions

PIN I/O DESCRIPTION
NAME NO.
INPUT OR REFERENCE
INAP, INAM 63, 62 I Differential analog input for channel A
INBP, INBM 58, 59 I Differential analog input for channel B
INCP, INCM 18, 19 I Differential analog input for channel C
INDP, INDM 23, 22 I Differential analog input for channel D
VCM 16 O Common mode output voltage to bias analog inputs, Vcm = 2.0 V
VREF 15 O Voltage reference output. A 0.1-µF bypass capacitor to ground close to the pin is recommended
CLOCK/SYNC
CLKINP, CLKINM 9, 8 I Differential clock input for channel
SYSREFABP, SYSREFABM 6, 5 I LVDS input with internal 100-Ω termination. External SYSREF input for channels A, B, C, and D
SYSREFCDP, SYSREFCDM 11, 12 I LVDS input with internal 100-Ω termination. External SYSREF input for channels C and D if output rate of channel A/B is different from channel C/D.
Can be configured to trigger input for burst modes with SPI register write. Can be used as differential input or two single-ended inputs (SYSREFCDP becomes TRIGGERAB and SYSREFCDM becomes TRIGGERCD) for channel A/B and channel C/D.
CONTROL OR SERIAL
ENABLE 14 I Chip enable. Active high. Power down functionality can be configured through SPI register setting and exercised using the ENABLE pin. Internal 51-kΩ pulldown resistor.
SCLK 3 I Serial interface clock input
SDATA 2 I/O Bidirectional serial data in 3-pin mode. In 4-pin interface, the SDATA pin is an input only.
SDENb 4 I Serial interface enable
SDOUT 1 O Serial interface data output
SRESETb 13 I Hardware reset. Active low. Initializes internal registers during high to low transition. This pin has an internal 51-kΩ pullup resistor.
DATA OUTPUT INTERFACE
DA[0,1]P, DA[0,1]M 55, 54, 52, 51 O JESD204B output interface for channel A
DB[0,1]P, DB[0,1]M 46, 45, 43, 42 O JESD204B output interface for channel B
DC[0,1]P, DC[0,1]M 26, 27, 29, 30 O JESD204B output interface for channel C
DD[0,1]P, DD[0,1]M 35, 36, 38, 39 O JESD204B output interface for channel D
OVRA 50 I/O Fast over-range indicator channel A. In burst mode can be configured to TRIGGERAB input.
OVRB 49 O Fast over-range indicator channel B. In burst mode can be configured to TRDY output.
OVRC 31 I/O Fast over-range indicator channel C. In burst mode can be configured to TRIGGERCD input.
OVRD 32 O Fast over-range indicator channel D. In burst mode can be configured to TRDY output.
SYNCbABP, SYNCbABM 47, 48 I SYNCb input for JESD204B interface for channel A/B, internal 100-Ω termination
SYNCbCDP, SYNCbCDM 34, 33 I SYNCb input for JESD204B interface for channel C/D, internal 100-Ω termination
POWER SUPPLY
AVDDC 7, 10 I Clock 1.8-V power supply
AVDD18 21, 24, 57, 60 I Analog 1.9-V power supply
AVDD33 17, 20, 61, 64 I Analog 3.3-V power supply
DVDD 25, 56 I Digital 1.8-V power supply
GND PowerPAD™ I Ground
IOVDD 28, 37, 44, 53 I JESD204B output interface 1.8-V power supply
PLLVDD 40, 41 I PLL 1.8-V power supply
