5 Pin Configuration and Functions

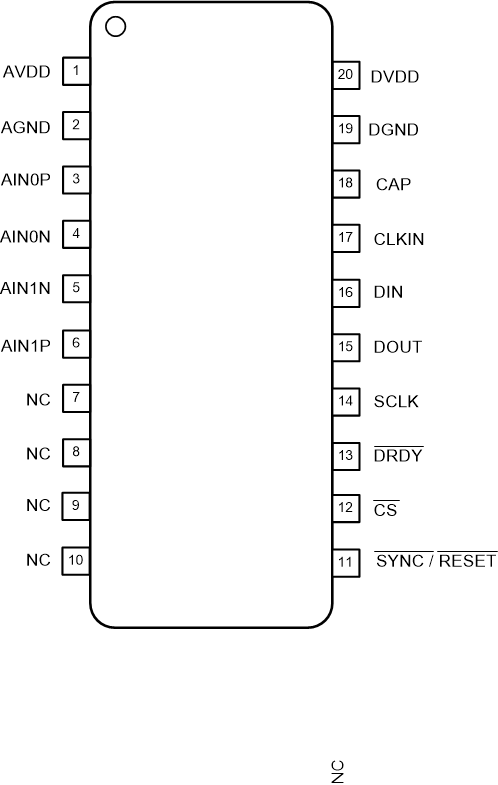

GUID-21674E85-BE93-419C-811E-7AB9E5FDEF1B-low.gif Figure 5-1 PW Package,20-Pin TSSOP(Top View)
Table 5-1 Pin Functions
PIN I/O DESCRIPTION(1)
NAME NO.
AGND 2 Supply Analog ground
AIN0N 4 Analog input Negative analog input 0
AIN0P 3 Analog input Positive analog input 0
AIN1N 5 Analog input Negative analog input 1
AIN1P 6 Analog input Positive analog input 1
AVDD 1 Supply Analog supply. Connect a 1-µF capacitor to AGND.
CAP 18 Analog output Digital low-dropout (LDO) regulator output.
Connect a 220-nF capacitor to DGND.
CLKIN 17 Digital input Main clock input
CS 12 Digital input Chip select; active low
DGND 19 Supply Digital ground
DIN 16 Digital input Serial data input
DOUT 15 Digital output Serial data output
DRDY 13 Digital output Data ready; active low
DVDD 20 Supply Digital I/O supply. Connect a 1-µF capacitor to DGND.
NC 7, 8, 9, 10 — Leave unconnected or connect to AGND
SCLK 14 Digital input Serial data clock
SYNC/RESET 11 Digital input Conversion synchronization or system reset; active low
(1) See the Section 9.1.1 section for details on how to connect unused pins.
