SLVUB71A August 2017 – June 2021 TPS565208
4.10 Shut-Down
The TPS565208EVM-858 shut-down waveform relative to VIN is shown in Figure 4-11. Load = 1 Ω resistive.
The TPS565208EVM-858 shut-down waveform relative to EN is shown in Figure 4-12. Load = 1 Ω resistive.

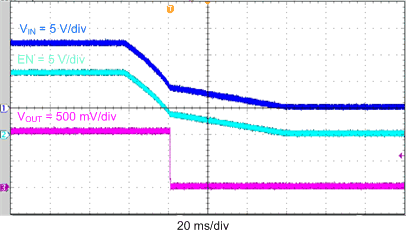

Figure 4-11 TPS565208 Shut-Down Relative to VIN

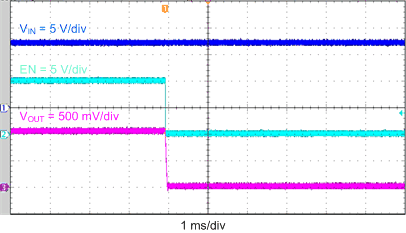

Figure 4-12 TPS565208 Shut-Down Relative to EN
