2.8 Input Voltage Ripple

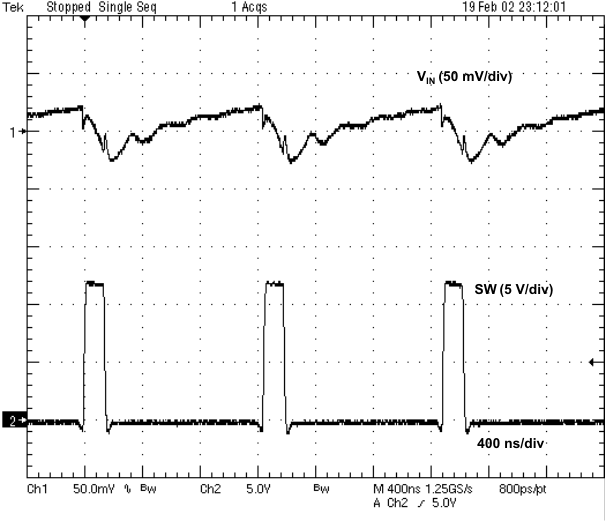

The TPS54325EVM input voltage ripple is shown in Figure 2-7. The output current is the rated full load of 3 A.

GUID-0F53BF4E-E8D1-45F5-8D65-BA57673A3F18-low.gifFigure 2-7 TPS54325EVM Input Voltage Ripple
